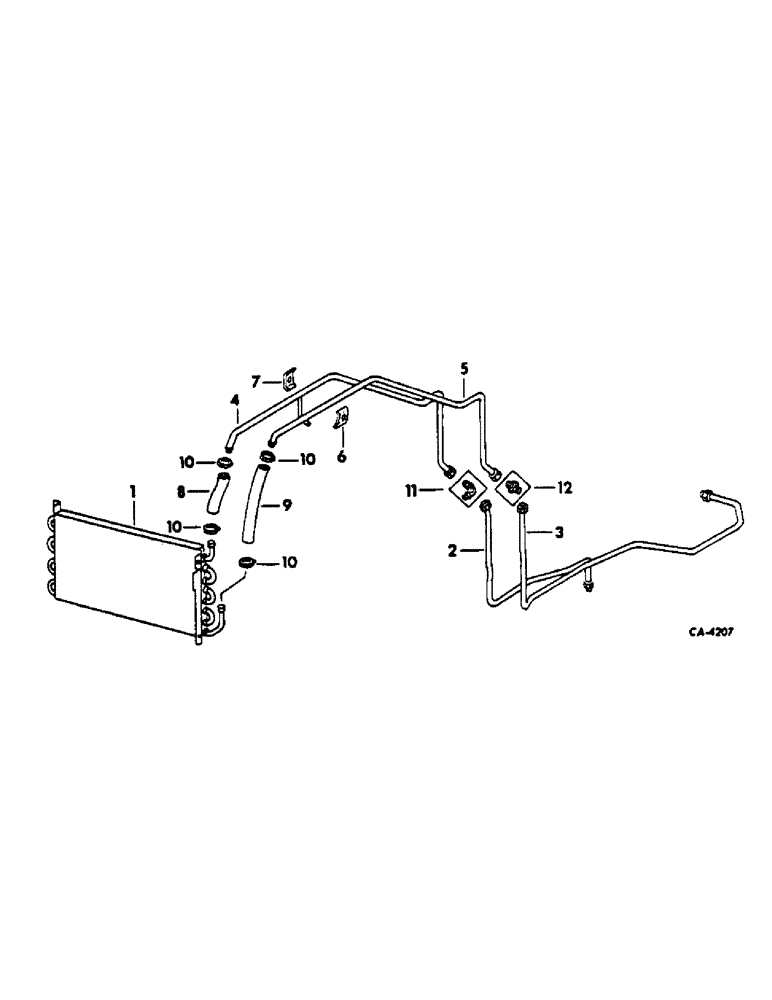

Запчасти Case IH 454 (06-02) - COOLING, OIL COOLER, INTERNATIONAL 454 TRACTORS WITH SYNCHROMESH TRANSMISSION Cooling

1

539560R1

COOLER

oil, replaces 406407R1

1шт.

Q663

HEADED PIN,5/16" x 1 7/8"

PIN, 5/16 x 1-7/8 std-hd

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

2

529605R2

TUBE ASSY, oil cooler rear, for service replacement furnish one each tube assy 66097C1 and 66095C1

1шт.

2

66095C1

TUBE

ASSY, oil cooler rear

1шт.

3

529606R1

TUBE

ASSY, oil cooler return rear

1шт.

4

529607R1

TUBE ASSY, oil cooler inlet, for service replacement furnish one each tube assy 66097C1 and 66095C1

1шт.

4

66097C1

TUBE

ASSY, oil cooler inlet

1шт.

5

534865R1

TUBE ASSY, oil cooler outlet

1шт.

6

529644R11

CLAMP

ASSY, oil cooler tube

1шт.

NLS

NO LONGER SERVICED

SCREW, 1/4-20 x 7/8 hex-hd cap

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

7

381448R1

CLAMP

oil cooler tube

1шт.

179801

BOLT,Hex, 1/4" - 20 x 1 1/2", Gr 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

8

388606R1

HYDRAULIC HOSE,12.70 mm ID x 342.00 mm, SAE 100R6, SAE J517

HOSE, oil cooler inlet, optional w/529613R1

1шт.

8

529613R1

FLEXIBLE HOSE

HOSE, oil cooler inlet, optional w/388606R1

1шт.

9

388601R1

HOSE

oil cooler outlet, replaces 400707R1

1шт.

10

279025R91

HOSE CLAMP,#06, .44/.78 Type F Worm

Oil cooler hose #06, .44/.78 Type F Worm

4шт.

11

9402943

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

UNION, 3/4-16 C-Z 37 deg hyd flared tube 90 deg elbow, used with tubes 529605R2 and 529607R1

1шт.

12

9402787

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

3/4-16 C-Z 37 deg hyd flared tube

1шт.
