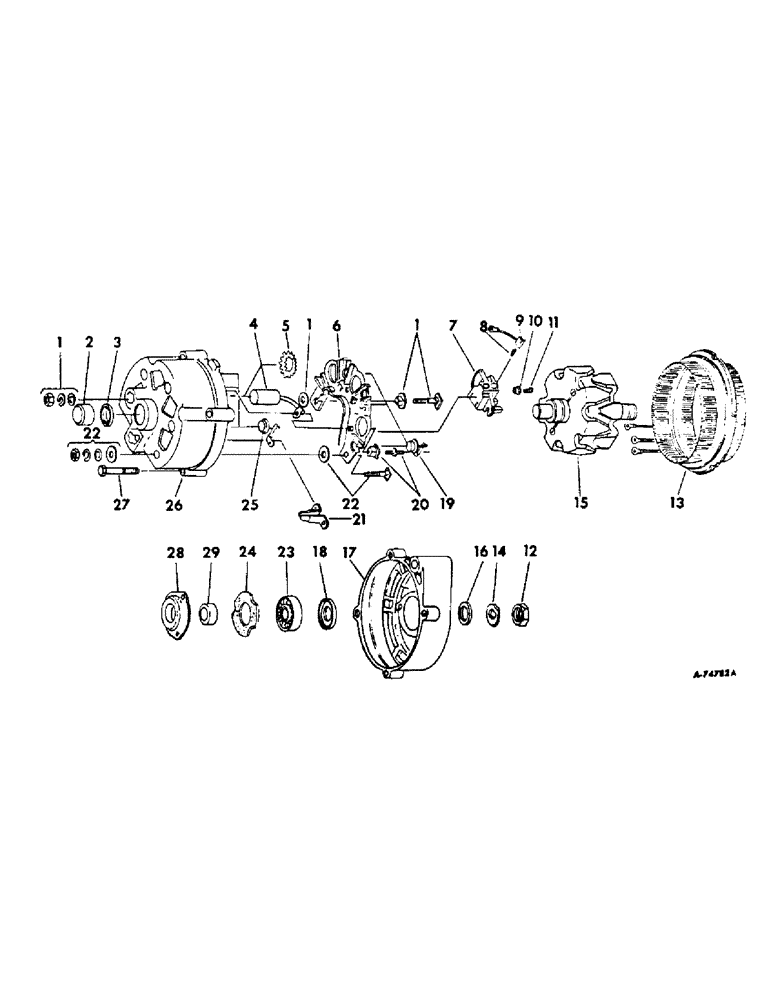

Запчасти Case IH 454 (08-05) - ELECTRICAL, ALTERNATOR-GENERATOR (06) - ELECTRICAL

1100805

GENERATOR

ALTERNATOR-GENERATOR, 702337C91

1шт.

1

1959833

TERMINAL CONNECTOR

TERMINAL W/NUTS AND WASHERS, ground

1шт.

2

423649C91

BALL BEARING

BEARING, slip ring end

1шт.

3

1961323

SEAL

RETAINER W/FELT, slip ring end

1шт.

4

1959455

CAPACITOR

CAPACITOR

1шт.

5

1960750

VALVE SPRING

SPRING, condenser retaining

1шт.

6

1959828

PACKAGE

HEAT SINK ASSY

1шт.

1959523

SPARE PART WASHER, heat sink screw insulator

1шт.

7

1964682

HOLDER

HOLDER ASSY, brush and spring

1шт.

8

NOT SERVICED SEPARATELY, order holder assy 1964682

1шт.

9

NOT SERVICED SEPARATELY, order holder assy 1964682

1шт.

10

1959389

INSULATOR

INSULATOR, brush holder screw

2шт.

11

1957501

SCREW

SCREW, brush holder attaching

2шт.

12

1915172

NUT

NUT, drive end shaft

1шт.

13

1959381

COIL

STATOR ASSY

1шт.

14

1941978

WASHER

WASHER, drive end shaft

1шт.

15

1958565

ROTOR

ROTOR ASSY

1шт.

16

1959991

COLLAR

COLLAR, drive end outside spacer

1шт.

17

800135

FUNNEL

FRAME FRAME, drive end

1шт.

18

(Not used this application)

1шт.

19

(Not used this application)

1шт.

20

1852929

RECTIFIER

DIODE, positive

3шт.

21

1959834

TERMINAL STRIP

TERMINAL PACKAGE, diode junction

3шт.

22

1959832

TERMINAL STRIP

TERMINAL PACKAGE, battery

1шт.

23

443919R91

BEARING

BEARING, drive end

1шт.

24

1912008

FELT

GASKET, bearing retainer plate

1шт.

25

1852928

DIODE

DIODE, negative

3шт.

26

1852934

COVER ASSY

FRAME, ship ring end

1шт.

27

1956975

BOLT

BOLT, thru

4шт.

28

1971993

PLATE

RETAINER ASSY, drive end bearing

1шт.

29

1963139

COLLAR CLAMP

COLLAR, drive

1шт.
