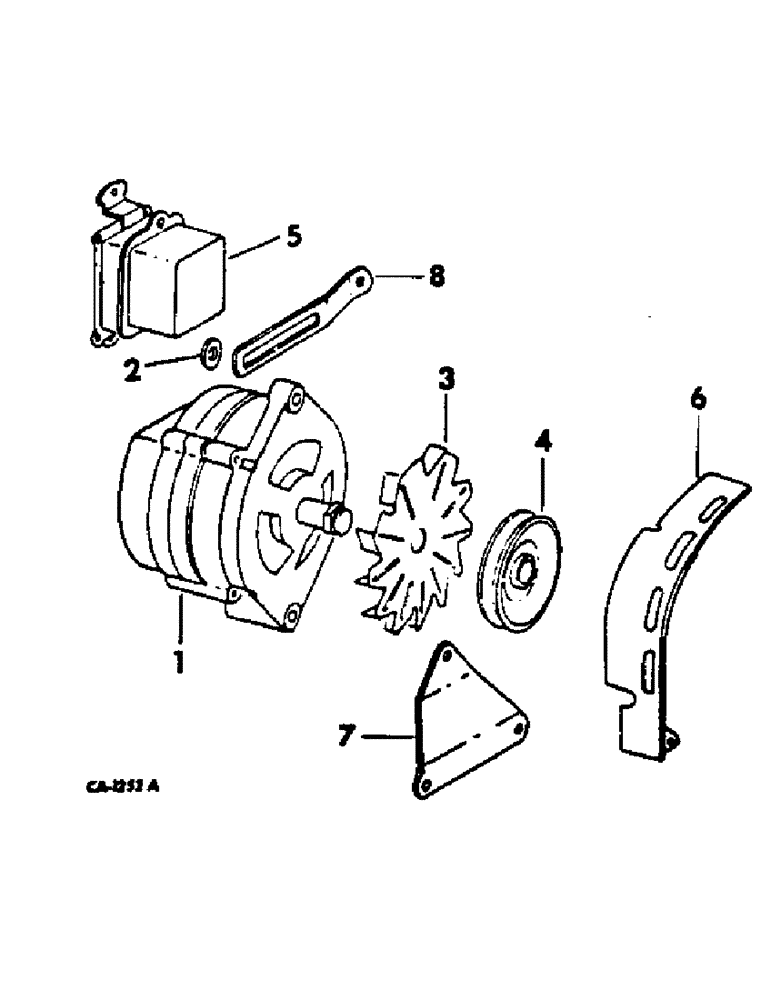

Запчасти Case IH 454 (08-02) - ELECTRICAL, ALTERNATOR-GENERATOR AND CONNECTIONS, GASOLINE ENGINE TRACTORS (06) - ELECTRICAL

1

1100805

GENERATOR

ALTERNATOR-GENERATOR, Delco Remy, 702337C91, 454 tractors w/serial no. 6328 and below and 2400 series A tractors w/serial no. 1898 and below, for components, see list of parts under details of alternator generator

1шт.

1

103798A1GV

ALTERNATOR

Value, 12V, 63A

1шт.

1

103798A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 63 ampere

1шт.

1

103798A1C

CORE-ALTERNATOR

Return Number

1шт.

1

103805A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 55 ampere

1шт.

1

103805A1C

CORE-ALTERNATOR

Return Number

1шт.

225-14112

NUT,#12-24

12-24 C-Z hex. mach screw

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

121744

ANGLE

Washer, Lock, #12

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

433115

BOLT,Hex, 3/8" - 16 x 4 1/4", Gr 5

SCREW, 3/8-16 x 4-1/4 znd hex-hd cap

1шт.

9413953

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 PHC hex. lock

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

BOLT, Hex, 5/16"-18 x 1 1/4", G5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

1

1100593

ALTERNATOR-GENERATOR, Delco Remy, 539323R91, furnish 1100583, 454 tractors w/serial no. 6329 and above and 2400 series A tractors w/serial no. 1899 and above, for components, see list of parts under details of alternator generator

1шт.

121743

CHAIN,#12 - 24

12-24 C-Z hex. mach screw

1шт.

492-11012

LOCK WASHER,#12

Washer, Lock, #12

1шт.

433115

BOLT,Hex, 3/8" - 16 x 4 1/4", Gr 5

SCREW, 3/8-16 x 4-1/4 znd hex-hd cap

1шт.

9413953

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 PHC hex. lock

1шт.

537326R1

BOLT

SCREW, 5/16-18 x 1-1/2 hex-hd cap

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

2

280185R1

SPACER

SPACER, alternator-generator brace

1шт.

3

221425R1

FAN

FAN, alternator-generator

1шт.

4

1949358

PULLEY

PULLEY, alternator-generator, 606939C1

1шт.

5

1119513

VOLTAGE REGULATOR

REGULATOR, alternator-generator,336410R91, 454 tractors w/serial no. 6328 and below and 2400 series A tractors w/serial no. 1898 and below

1шт.

17403R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

SCREW, 1/4-20 x 1/2 hex-hd cap

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

109084

NUT,1/4"-20, G5

NUT, 1/4"-20, G5

2шт.

6

SHIELD ASSY, alternator fan & pulley, on orders for shield 259546R2 or 537721R3 furnish package 71196C91

1шт.

7

400338R1

SPARE PART BRACKET, alternator mounting

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

BOLT, 3/8-16 x 7/8 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

8

397969R1

SUPPORT

SPARE PART BRACE, alternator-generator adjusting

1шт.

71196C91

SPARE PART PACKAGE, alternator shield, consists of (1) shield 537721R3 (NSS), (1) screw 537326R1, (2) washer 557265R1, (1) nut 472146R1, (1) screw 186288, (1) nut 9413953

1шт.
