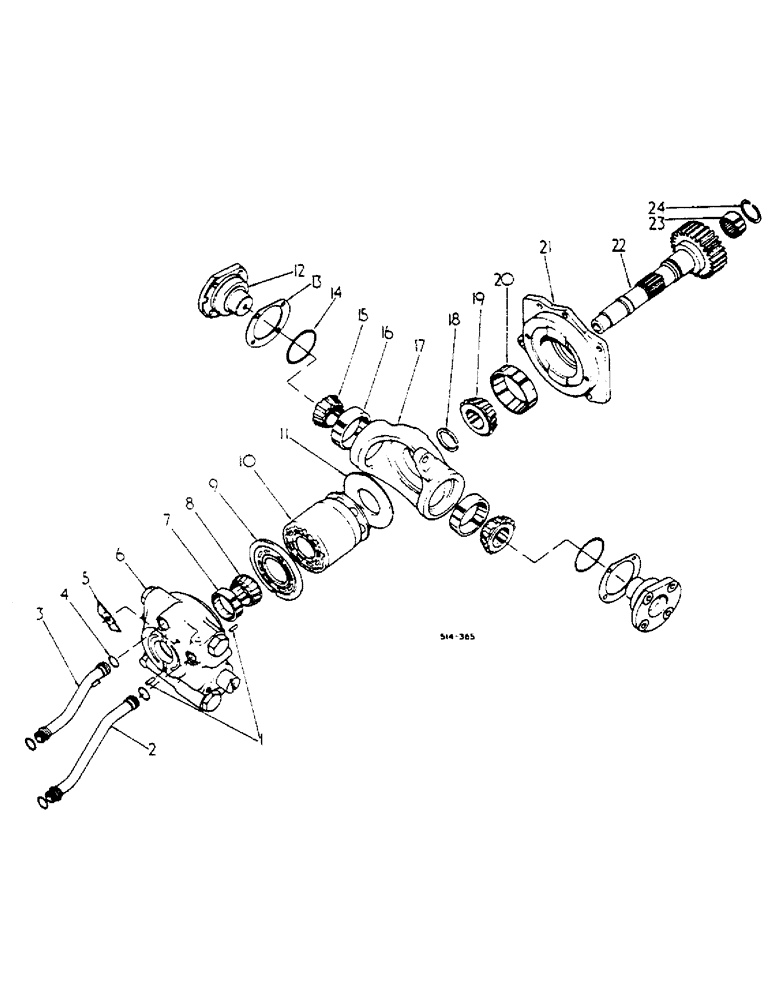

Запчасти Case IH 454 (07-09) - HYDRO OUTPUT SHAFT, CENTER SECTION, MOTOR (04) - Drive Train

1

394825R1

DOWEL

PIN, CENTER SECTION

2шт.

2

400998R1

TUBE ASSY.

CENTER SECTION EXHAUST

1шт.

3

400994R1

TUBE ASSY.

CENTER SECTION CHARGE

1шт.

4

384943R1

O-RING,0.739" ID x 0.07" Width

1шт.

5

401000R1

STRIP

CENTER SECTION PIPE RETAINER

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

1шт.

103320

LOCK WASHER,5/16"

1шт.

6

BODY ASSY, CENTER SECTION W/VALVES, SEE FIGURE 07-18

1шт.

400986R1

BOLT,Hex, 1/2" - 13 x 1.62"

1/2-13 X 1-5/16 HEX HD CAP

2шт.

7

530741R1

BEARING CUP

OUTPUT SHAFT FRONT CUP

1шт.

8

400983R91

ROLLER BEARING,1.18775" ID x 2.5317" OD x 0.8478"

ASSY, OUTPUT SHAFT FRONT

1шт.

9

530773R1

PLATE

MOTOR VALVE

1шт.

10

MOTOR, CYLINDER BLOCK, HYDROSTATIC, SEE FIGURE 07-20

1шт.

11

400965R3

PLATE

THRUST

1шт.

12

400966R1

TRUNNION

MOTOR

2шт.

297330R1

BOLT

SCREW, HEX HD W/NYLON INSERT

8шт.

13

400967R91

SHIM KIT

PACKAGE, MOTOR TRUNNION, CONSISTS OF (1) SHIM .005", (1) SHIM .007" AND (1) SHIM .020"

2шт.

14

295204R1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

1-13/16 X 3 X 3/32

2шт.

15

62923R91

ROLLER BEARING

ASSY, MOTOR TRUNNION CONE

2шт.

16

130503H

BEARING CUP

MOTOR TRUNNION

2шт.

17

400963R1

HOUSING

SPARE PART MOTOR SWASH PLATE

1шт.

18

400971R1

RING, SNAP

RING SNAP BEARING RETAINING .136"

1шт.

18

400972R1

RING, SNAP

RING SNAP BEARING RETAINING .141"

1шт.

18

400973R1

RING, SNAP

RING SNAP BEARING RETAINING .146"

1шт.

18

400974R1

RING, SNAP

RING SNAP BEARING RETAINING .151"

1шт.

18

400975R1

RING, SNAP

RING SNAP BEARING RETAINING .156"

1шт.

18

400976R1

RING, SNAP

RING SNAP BEARING RETAINING .163"

1шт.

18

400977R1

RING, SNAP

RING SNAP BEARING RETAINING .166"

1шт.

18

400978R1

RING, SNAP

RING SNAP BEARING RETAINING .171"

1шт.

18

400979R1

RING, SNAP

RING SNAP BEARING RETAINING .176"

1шт.

18

400980R1

RING, SNAP

RING SNAP BEARING RETAINING .181"

1шт.

18

400981R1

RING, SNAP

RING SNAP BEARING RETAINING .186"

1шт.

19

400960R91

ROLLER BEARING,1.7505" ID x 3.4375" OD x 1.1875, 0.9375"

ASSY, OUTPUT SHAFT REAR

1шт.

20

14039

SIDE PLATE

BEARING, OUTPUT SHAFT CUP

1шт.

21

400958R1

BEARING HOUSING,2.65" ID x 4.374" OD

REAR BEARING

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

5шт.

22

400961R2

SHAFT

OUTPUT, UP TO 454/008212, UP TO 2400/00691

1шт.

22

65259C1

SHAFT

SPARE PART OUTPUT, 454/008213 UP, 2400/00692 UP

1шт.

23

572181R91

NEEDLE BEARING,Needle, 38.09mm ID x 47.64mm OD x 25.4mm W

OUTPUT SHAFT NEEDLE, UP TO 454/008212, UP TO 2400/00691

1шт.

23

613639C91

NEEDLE BEARING,38.09mm ID x 47.65mm OD x 25.4mm W

OUTPUT SHAFT NEEDLE, 454/008213 UP, 2400/00692 UP

1шт.

24

66014C1

SNAP RING

OUTPUT SHAFT BEARING INT

1шт.
