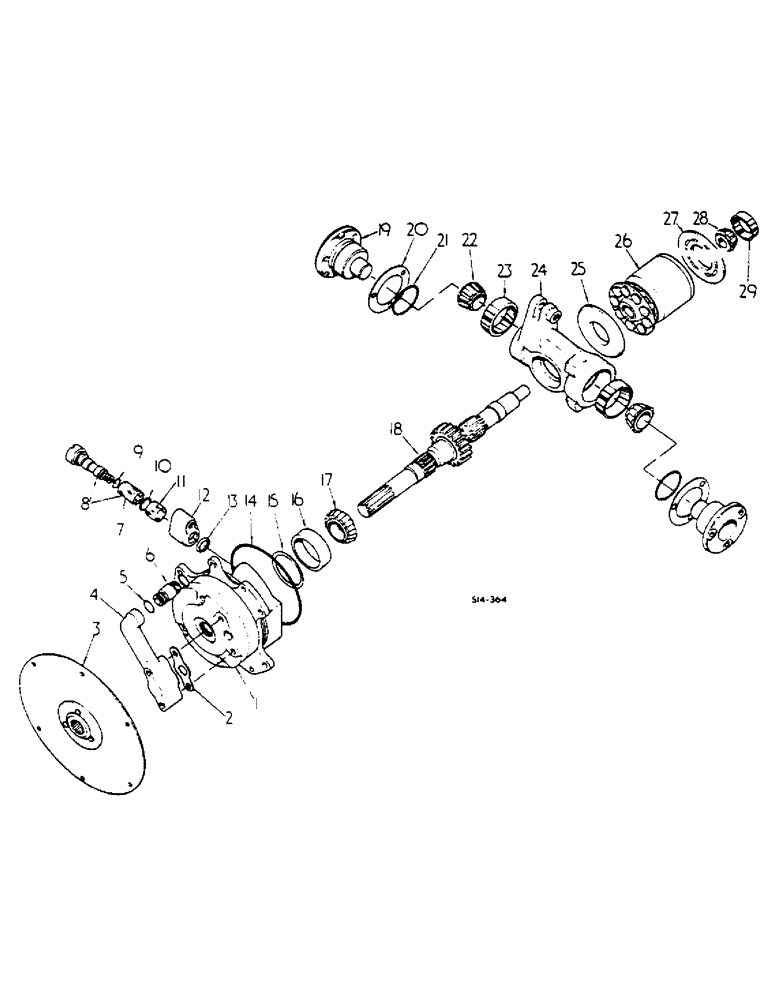

Запчасти Case IH 454 (07-06) - HYDRO INPUT SHAFT AND CYLINDER BLOCK PUMP (04) - Drive Train

1

PUMP, TRANSMISSION CHARGE, FOR DETAILS SEE LIST OF PARTS UNDER DETAIL TRANSMISSION CHARGE PUMP

1шт.

2

STEP

SCREW, 3/8-16 X 1 HEX HD NYLOK

5шт.

2

401028R1

GASKET

CHARGE PUMP MANIFOLD

1шт.

3

404078R91

PLATE ASSY.

DRIVE

1шт.

324711R1

BOLT

SCREW, W/NYLON PELLET INSERT 5/16-18 X 3/4 HEX HD CAP

6шт.

103320

LOCK WASHER,5/16"

6шт.

4

401027R1

MANIFOLD

CHARGE PUMP

1шт.

186284

BOLT,Hex, 3/8" - 16 x 3 3/4", Gr 5

SCREW, 3/8-16 X 3-3/4 HEX HD CAP

2шт.

565832R1

WASHER

13/32 X 5/8 X .049, COPPER

2шт.

5

384943R1

O-RING,0.739" ID x 0.07" Width

CHARGE JUMPER TUBE

2шт.

6

401026R1

TUBE

CHARGE JUMPER

1шт.

7

529487R1

STRAINER ELEMENT

REGULATOR VALVE

1шт.

8

529486R91

VALVE

ASSY, PRESSURE REGULATOR

1шт.

9

379181R1

O-RING,0.614" ID x 0.07" Width

5/8 X 3/4 X 1/16

1шт.

10

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

7/8 OD TUBE

1шт.

11

396100R1

STRAINER ELEMENT

SCREEN, REGULATOR VALVE

1шт.

12

405194R1

HOUSING

SERVO REGULATOR VALVE

1шт.

13

388591R1

RING

VALVE HOUSING SEALING

1шт.

14

343943R1

O-RING,6.234" ID x 0.139" Width

6-1/4 X 6-1/2 X 1/8

1шт.

15

401021R91

SHIM KIT

PACKAGE, INPUT SHAFT FRONT BEARING, CONSISTS OF (1) SHIM .005", (1) SHIM .007" AND (1) SHIM .020"

1шт.

16

567849R1

BEARING CUP,1.5625" ID x 3" OD x 1.01"

INPUT SHAFT FRONT CUP

1шт.

17

459454R91

ROLLER BEARING,1.563" ID x 1.01"

ASSY, INPUT SHAFT FRONT

1шт.

18

401009R1

SHAFT

INPUT

1шт.

19

401012R1

TRUNNION

PUMP

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

6шт.

20

401018R91

SHIM KIT

PACKAGE SERVICE, PUMP TRUNNION - CONSISTS OF (1) SHIM .005", (1) SHIM .007" AND (1) SHIM .020"

2шт.

21

384377R1

O-RING,0.103" Thk x 2.55" ID, -141, Cl 6, 90 Duro

O, 2-5/16 X 2-1/2 X 3/32

2шт.

22

527486R1

BEARING, CUP

PUMP TRUNNION CUP

2шт.

23

50212VA

ROLLER BEARING,33.35mm ID x 24.01mm W

ASSY, PUMP TRUNNION

2шт.

24

401011R1

HOUSING

PUMP SWASH PLATE

1шт.

26

PUMP, CYLINDER BLOCK, FOR DETAILS SEE LIST OF PARTS UNDER DETAIL PUMP CYLINDER BLOCK

1шт.

27

530766R1

PLATE

PUMP VALVE R.H.

1шт.

28

400990R91

ROLLER BEARING,0.75" ID x 2.125" OD x 0.775"

ASSY, INPUT SHAFT REAR

1шт.

29

537188R1

ROLLER BEARING,0.75" ID x 2.125" OD x 0.875"

INPUT SHAFT REAR CONE

1шт.
