Запчасти Case IH 454 (15-03) - REAR WHEELS Wheels & Traction

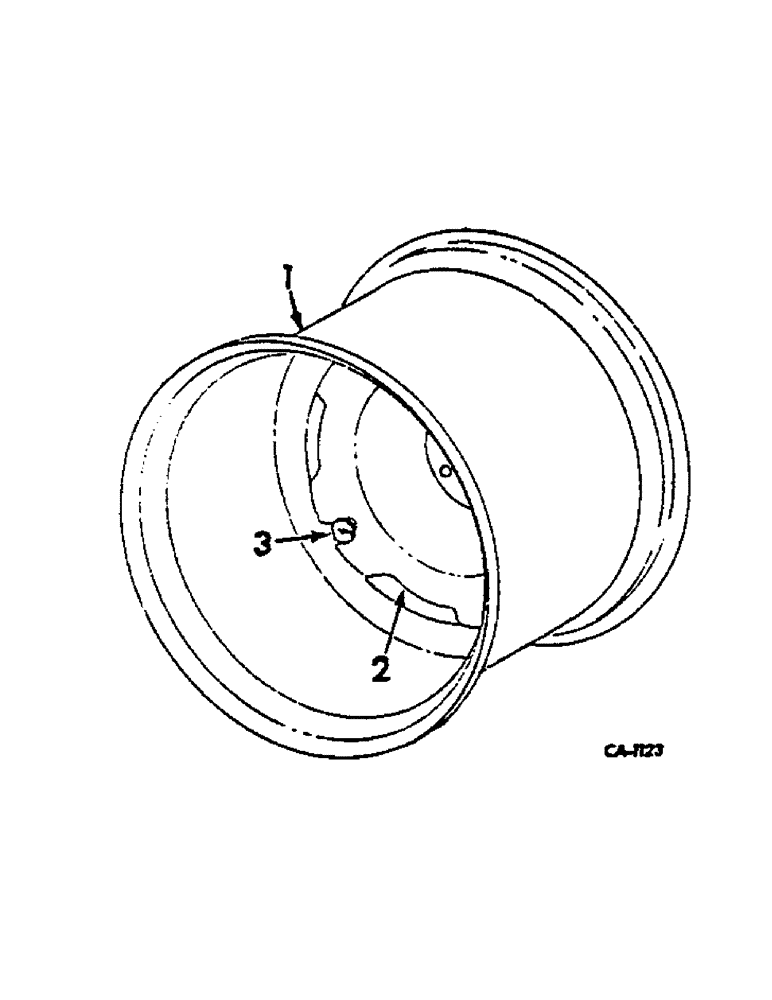

Схема запчастей Case IH 454 - (15-03) - REAR WHEELS Wheels & Traction
2
1
3

Артикул

Название

Примечание

Количество

527249R91

WHEEL

ASSY, REAR, W11-28 RIM FOR 12.4-28 TIRE

2шт.

527250R91

WHEEL

ASSY, REAR, W12-28 RIM FOR 13.6-28 TIRE

2шт.

527251R91

WHEEL

ASSY, REAR, W13-28 RIM FOR 14.9-28 TIRE

2шт.

3113106R91

WHEEL ASSY.

12 X 30 REAR, NAGBOL

2шт.

1

406939R1

RIM

WHEEL W/CLAMP, W11-28 REAR WHEEL

1шт.

USED W/WHEEL ASSY 527249R91

1шт.

1

406940R1

RIM

WHEEL W/CLAMP, W12-28 REAR WHEEL

1шт.

USED W/WHEEL ASSY 527250R91

1шт.

1

406941R1

RIM

WHEEL W/DISC, W13-28 REAR WHEEL

1шт.

USED W/WHEEL ASSY 527251R91

1шт.

1

3116539R1

RIM

WHEEL AND LUG ASSEMBLY

1шт.

USED W/WHEEL 3113106R91

1шт.

2

406942R1

DISC

WHEEL, DISC REAR, 28 IN. WHEELS

1шт.

2

3116404R1

DISC

WHEEL DISC REAR

2шт.

3

406951R1

BOLT,5/8" - 18 x 2.91", Gr 5

REAR WHEEL RIM MOUNTING

8шт.

3

3116403R1

BOLT (SPREADER)

12шт.

406952R1

WASHER

REAR WHEEL BOLT

8шт.

406953R1

NUT

REAR WHEEL BOLT

8шт.

102639

NUT,5/8"-11, G5

12шт.

934233R1

LOCK WASHER

5/8 SPRING LOCK

12шт.

Выбрано товаров: 20
