Запчасти Case IH 454 (14-06) - FRONT WHEEL HUB, BEARINGS AND CAP, UP TO 5079 Suspension

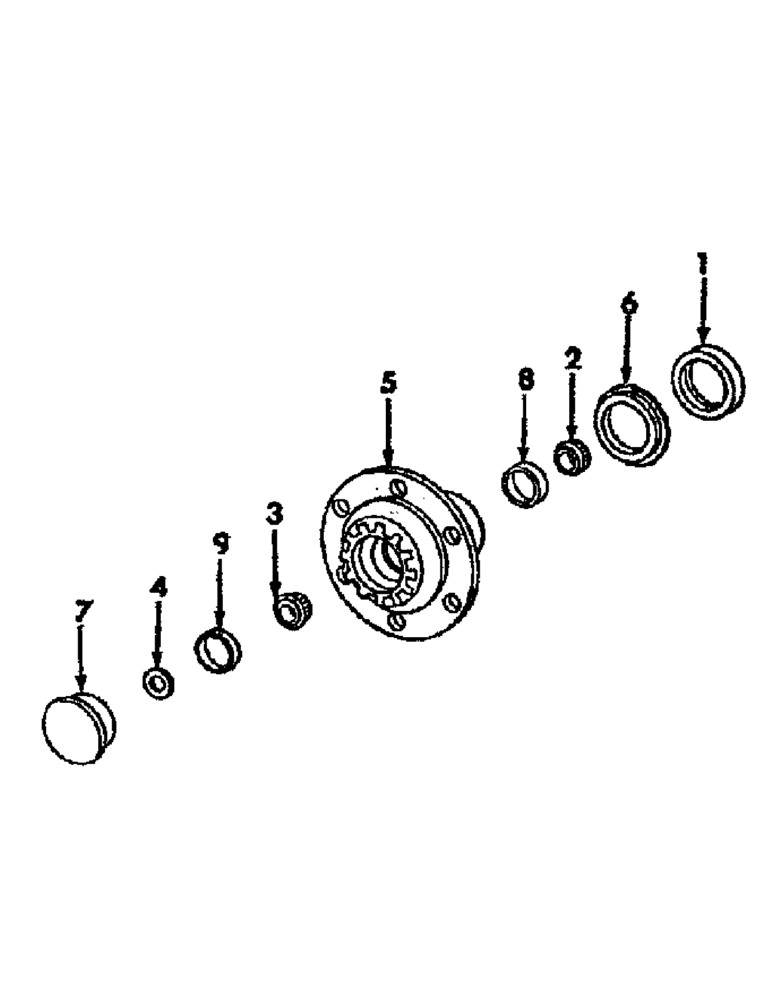

Схема запчастей Case IH 454 - (14-06) - FRONT WHEEL HUB, BEARINGS AND CAP, UP TO 5079 Suspension
5
7
3
9
8
2
4
6
1

Артикул

Название

Примечание

Количество

.

.

AXLE, ADJUSTABLE FRONT, SWEPT BACK, Serial Range: -5079

1шт.

INCLUDING UP TO 2400/0563

1шт.

EXCLUDING 2306 AND 4864

1шт.

1

405832R91

SEAL

FRONT WHEEL DUST

2шт.

2

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

ASSY, INNER, OPTIONAL W/652080R91 AND 650076R91

2шт.

2

652080R91

BEARING

ASSY, INNER CONE, OPTIONAL W/651818R91 AND 652074R91

2шт.

2

652074R91

CONE

BEARING ASSY, INNER, OPTIONAL W/651818R91 AND 652080R91

2шт.

3

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

ASSY, OUTER, OPTIONAL W/652077R91 AND 652071R91

2шт.

3

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

3

652077R91

BEARING

ASSY, OUTER CONE, OPTIONAL W/651815R91 AND 65071R91

2шт.

3

652071R91

CONE

BEARING ASSY, OUTER, OPTIONAL W/651815R91 AND 652077R91

2шт.

4

369936R91

WASHER, OUTER BRG RETAINER

2шт.

.

102649

SLOTTED NUT,5/8"-18, G5

2шт.

.

103386

COTTER PIN,1/8" x 1 1/4"

2шт.

.

368627R1

WASHER

2-1/4 X 2-17/32 X 1/4 FELT

2шт.

5

406292R11

HUB

SPARE PART ASSY, FRONT WHEEL

2шт.

6

406293R1

CUP

RING, WEAR

2шт.

7

612884R1

HUB CAP

FRONT WHEEL HUB

2шт.

8

652079R1

BEARING

INNER CUP, OPTIONAL W/651817R1 AND 652073R1

2шт.

8

651817R1

BEARING CUP

INNER CUP, OPTIONAL W/652079R1 AND 652073R1

2шт.

8

651817R1GV

BEARING CUP

Value, Bearing Cup

2шт.

8

652073R1

BEARING CUP

INNER, OPTIONAL W/652079R1 AND 651817R1

2шт.

9

652070R1

CUP

BEARING, INNER, OPTIONAL W/651814R1 652076R1

2шт.

9

651814R1

BEARING CUP

OUTER, OPTIONAL W/652070R1 AND 652076R1

2шт.

9

652076R1

CUP

BEARING, OUTER, OPTIONAL W/652070R1 AND 651814R1

2шт.

Выбрано товаров: 25
