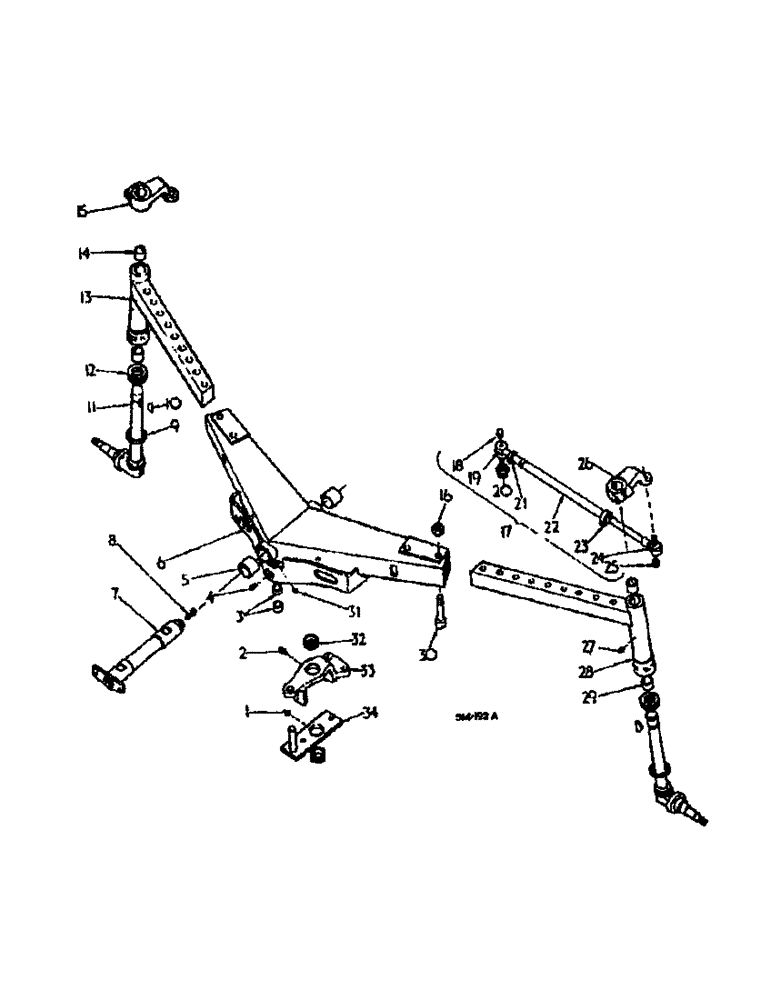

Запчасти Case IH 454 (14-02) - ADJUSTABLE FRONT AXLE, SWEPT BACK Suspension

1

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

1шт.

2

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

1шт.

3

405574

BUSHING

SUPPORT

2шт.

4

20605R1

LUBE NIPPLE,45 Degree, 3/16" x .62" lg, Drive

1/4, 65 DEG ANGLE DRIVE TYPE

1шт.

5

405570R1

BUSHING,50.95mm ID x 54.15mm OD x 47.63mm L

PIVOT

2шт.

6

539158R91

NO LONGER SERVICED

AXLE ASSY, FRONT

1шт.

6

405564R91

AXLE

ASSY, FRONT

1шт.

ON ORDERS FOR AXLE 405564R1, FURNISH AXLE 539158R91 TOGETHER W/SHAFT 539128R1, FITTING 273352 AND TWO SCREWS 179883

1шт.

7

539128R1

SHAFT ASSY.

FRONT AXLE PIVOT

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.

8

219-56

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1/8-27 PIF 90 DEG ANGLE LBU

1шт.

9

368627R1

WASHER

STEERING KNUCKLE FELT

2шт.

10

117997

WOODRUFF KEY,#25, 5/16" x 1 1/2", HT

2шт.

11

536059R2

STEERING KNUCKLE

ASSY, Start Serial: 5080

2шт.

INCLUDING 2306 AND 4864

1шт.

INCLUDING 2400 0564/ UP

1шт.

11

527290R92

STEERING KNUCKLE

ASSY, Serial Range: -5079

2шт.

EXCLUDING 2306 AND 4864

1шт.

INCLUDING UP TO 2400 0563 -

1шт.

12

527294R91

THRUST BEARING

STEERING KNUCKLE THRUST, OPTIONAL W/365317R91

2шт.

12

365317R91

THRUST BEARING,36.51mm ID x 2.48mm OD x 16.51mm W

STEERING KNUCKLE THRUST, OPTIONAL W/527294R91

2шт.

13

527285R92

EXTENSION

ASSY, FRONT AXLE, RH

1шт.

13

527809R92

EXTENSION ASSY, FRONT AXLE, RH, INDUSTRIAL TRACTORS

1шт.

14

368621R1

BUSHING,36.2mm ID x 39.47mm OD x 38.35mm L

2шт.

15

405834R1

ARM

STEERING KNUCKLE, RH

1шт.

102637

NUT,1/2"-13, G5

1шт.

179893

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1/2-13 HEX

1шт.

16

405576R1

NUT

FRONT AXLE

4шт.

17

527651R91

TIE-ROD

ASSY, TIE IH, OPTIONAL W/527655R92

2шт.

17

527655R92

ROD

ASSY, LEMFORDER, SERVICE PARTS LATER, OPTIONAL W/527651R91

2шт.

18

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

1шт.

19

356540R91

END

ASSY, RH

2шт.

103385

COTTER PIN,1/8" x 1"

2шт.

425-138

SLOTTED NUT,1/2"-20, G8

2шт.

20

358209R1

COVER

DUST

4шт.

21

390686R1

JAM NUT

11/16-18 HEX JAM

2шт.

22

527659R1

TUBE

TIE ROD

2шт.

23

43747D

CLAMP

2шт.

271505

BODY

7/16-20 HEX

2шт.

536165R1

SCREW, 7/16-20 HEX

2шт.

9421096

LOCK WASHER,7/16"

Ext tooth

2шт.

24

527653R91

ROD

END ASSY, LH

2шт.

103385

COTTER PIN,1/8" x 1"

2шт.

425-138

SLOTTED NUT,1/2"-20, G8

2шт.

25

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

26

405833R1

ARM

STEERING KNUCKLE, LH

1шт.

102637

NUT,1/2"-13, G5

1шт.

179893

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1/2-13 X 3 HEX HD CAP

1шт.

27

443567

LUBE NIPPLE,1/4" x .56 lg, Drive

1/4 DRIVE TYPE STR LUB

2шт.

28

527284R92

EXTENSION

ASSY, FRONT AXLE, LH

1шт.

28

527808R92

EXTENSION ASSY, FRONT AXLE, LH, INDUSTRIAL TRACTORS

1шт.

29

368621R1

BUSHING,36.2mm ID x 39.47mm OD x 38.35mm L

2шт.

30

405575R2

BOLT,Shldr, 3/4" - 16 x 3.75"

SHOULDER

4шт.

31

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

1шт.

32

379748R1

BUSHING

2шт.

33

405579R11

ARM

ASSY, PS CENTRE

1шт.

34

405580R11

BAR ASSY.

PS CYL

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

103323

LOCK WASHER,1/2"

2шт.

405578R1

PLATE

FRONT AXLE PIVOT PIN LOCK, NOT ILLUSTRATED, Serial Range: -03867

1шт.

INCLUDING UP TO 2400 0549 -

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Not Illustrated, Serial Range: -03867

1шт.

INCLUDING UP TO 2400 0549 -

1шт.
