Запчасти Case IH 454 (12-77) - FUEL INJECTOR PIPES AND CONNECTIONS, BOSCH INJECTION C.R. PUMP, 454 AND 2400/027205 UP Power

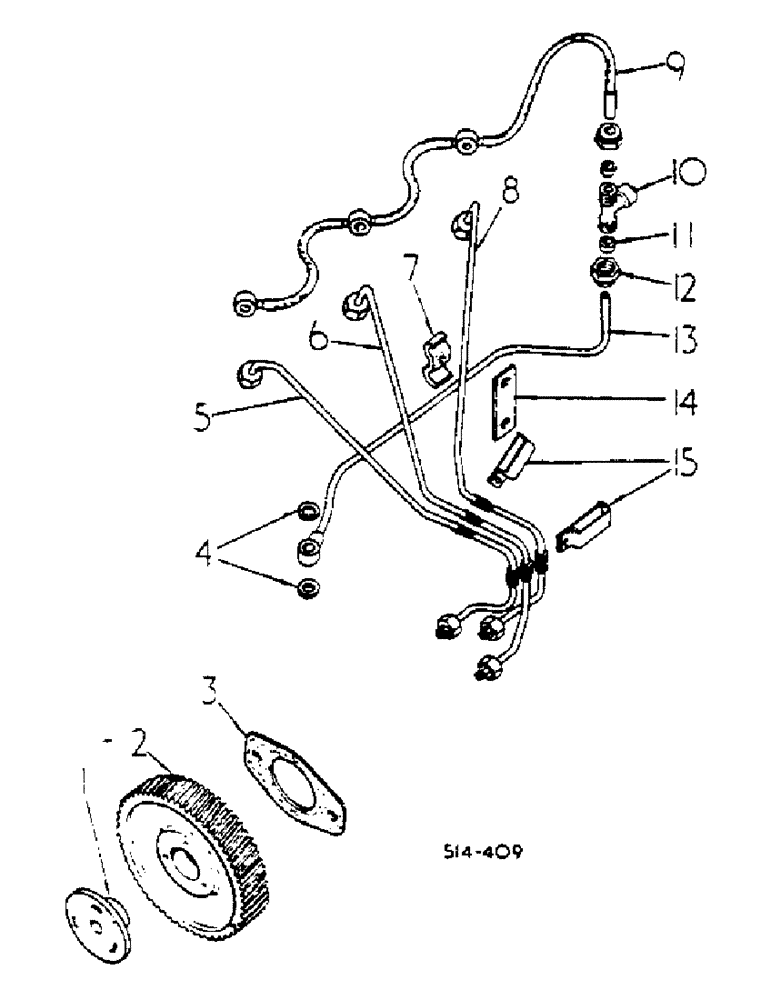

Схема запчастей Case IH 454 - (12-77) - FUEL INJECTOR PIPES AND CONNECTIONS, BOSCH INJECTION C.R. PUMP, 454 AND 2400/027205 UP Power
8
11
2
14
13
1
5
12
15
6
10
4
9
7
3

Артикул

Название

Примечание

Количество

1

3055067R1

HUB

GEAR INJECTION PUMP

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

LOCK

3шт.

2

3056885R1

GEAR

INJECTION PUMP

1шт.

3

3055384R1

GASKET

FUEL INJECTION PUMP

1шт.

4

713845R1

SEALING WASHER,M12 x 15.5 x 1.5

2шт.

5

3218136

PIPE, INJECTION CYLINDER NO. 1

1шт.

6

3218137R1

FUEL TUBE

INJECTION CYLINDER NO. 2

1шт.

7

3055386R1

CLAMP

CLIP, FUEL LINES

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

103319

LOCK WASHER,1/4"

1шт.

8

3218138R1

FUEL TUBE

INJECTION CYLINDER NO. 3

1шт.

9

3218126R1

TUBE

HOSE

1шт.

3218130R1

BANJO BOLT,Hex, M6 x 133.02mm

HOLLOW M6

3шт.

933696R1

SEALING RING,M6 x 10 x 1

6шт.

10

3055739R1

TEE,1/2" - 20 x M14 x 1.5 ORFS x M14 x 1.5 ORFS

SPECIAL TEE

1шт.

11

3056136R1

SLEEVE,Cutting Ring, 8mm ID x 11mm OD x 9mm L

CUTTING

2шт.

12

3056137R1

PIPE UNION NUT,Coupling, M14 x 1.5

COUPLING

2шт.

13

3144414R91

PIPE, OVERFLOW

1шт.

14

3132174R91

LINK, FIXING FUEL LINE

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

3050221R1

LOCK WASHER

3/8 LOCK

1шт.

15

3132766R1

CLAMP

PIPE

2шт.

931330R1

SCREW,M6 x 1 x 12mm, Cl 8.8

2шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

2шт.

3218135R1

PIPE, SET OF 3 INJECTION

1шт.

Выбрано товаров: 26
