Запчасти Case IH 454 (12-70) - LUBRICATING OIL PUMP Power

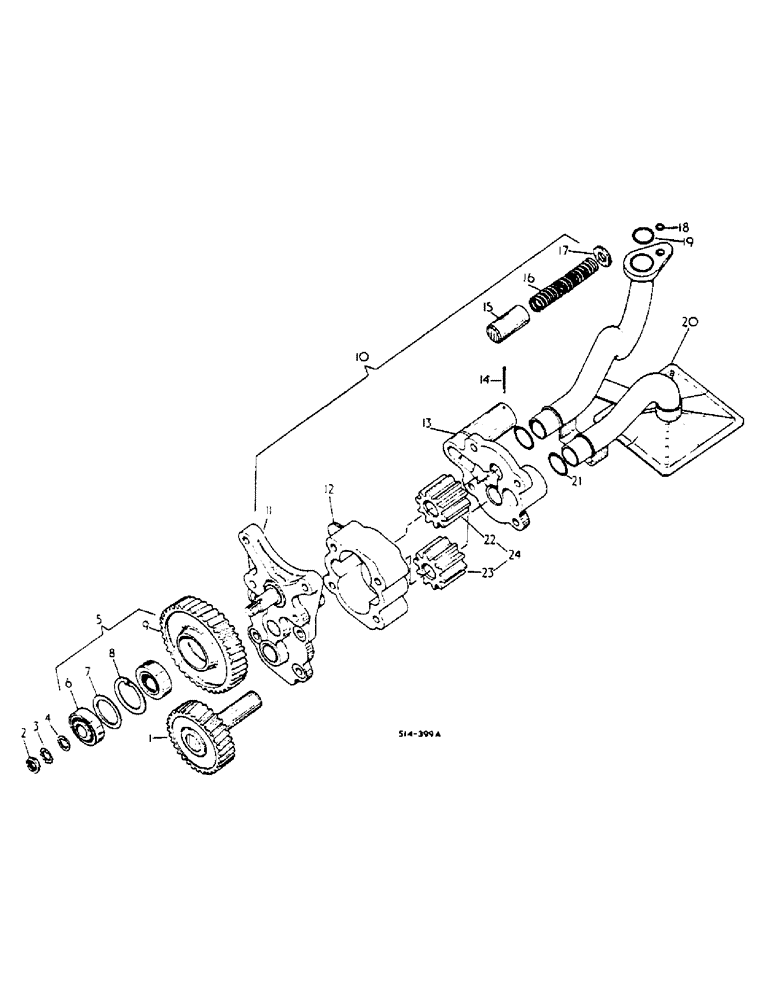

Схема запчастей Case IH 454 - (12-70) - LUBRICATING OIL PUMP Power
16
4
3
13
18
20
2
5
15
9
11
8
14
17
12
23
7
19
1
10
24
6
22
21

Артикул

Название

Примечание

Количество

3136429R1

PUMP ASSY, OIL, HYDROSTATIC CAV 200000 UP, HYDROSTATIC 050362 UP, SYNCHROMESH CAV 160014 UP, SYNCHROMESH 016191 UP, CONSISTS OF: REF. 2 THRU 17 AND REF. 22 AND 23

1шт.

103320

LOCK WASHER,5/16"

4шт.

21035R1

HEX SOC SCREW,5/16"-18 x 1"

4шт.

3132832R92

PUMP

ASSY, OIL, UP TO HYDROSTATIC 050361, UP TO SYNCHROMESH CAV 160013, UP TO SYNCHROMESH 016190, CONSISTS OF: REF. 2 THRU 17 AND REF. 22 AND 23

1шт.

1

3055109R11

GEAR

ASSY, DRIVE

1шт.

124546

WOODRUFF KEY,#6, 5/32" x 5/8", HT

1шт.

3055205R1

RING

DISTANCE

1шт.

933081

RING, LOCKING, UP TO HYDROSTATIC 050361, UP TO SYNCHROMESH CAV 160013, UP TO SYNCHROMESH 016190

1шт.

1

3136437R91

PINION

GEAR ASSY, DRIVE, HYDROSTATIC CAV 200000 UP, HYDROSTATIC 050362 UP, SYNCHROMESH CAV 160014 UP, SYNCHROMESH 016191 UP

1шт.

2

3055295R1

NUT

SHAFT

1шт.

3

3055296R1

WASHER

PLATE, LOCKING

1шт.

4

3055371R1

WASHER

IDLER GEAR

1шт.

5

3055291R11

PINION

GEAR ASSY, IDLER, CONSISTS OF: REF. 6 - 9

1шт.

6

3055293R91

TAPERED BEARING

ASSY

2шт.

6

3055294R91

TAPERED BEARING

ASSY, OPTIONAL

2шт.

7

3055292R1

WASHER

WASHER

1шт.

8

933579R1

SNAP RING,M35, Int

1шт.

9

3055291R1

PINION

GEAR

1шт.

10

3055027R24

CARRIER

ASSY, W/3 PIN 932597R1, UP TO HYDROSTATIC 050361, UP TO SYNCHROMESH CAV 160013, UP TO SYNCHROMESH 016190

1шт.

10

3136435R91

ENGINE OIL PUMP

CARRIER ASSY, W/3 PIN 932597R1, HYDROSTATIC CAV 200000 UP, HYDROSTATIC 050362 UP, SYNCHROMESH CAV 160014 UP, SYNCHROMESH 016191 UP, CONSISTS OF: REF. 11 - 17

1шт.

932597R1

LOCK PIN,M10 x 14, Slotted

Roll

3шт.

11

NSS

NOT SOLD SEPARAT

CARRIER, C/W BUSHING

1шт.

12

NSS

NOT SOLD SEPARAT

CASE, OIL PUMP GEAR

1шт.

13

NSS

NOT SOLD SEPARAT

COVER ASSY, OIL PUMP

1шт.

103320

LOCK WASHER,5/16"

4шт.

179823

BOLT,Hex, 5/16" - 18 x 1 5/8", Gr 5

4шт.

9635082

NUT,5/16" - 18, Gr 5

4шт.

14

103387

COTTER PIN,1/8" x 1 1/2"

1шт.

15

3055202R2

VALVE

PISTON RELIEF

1шт.

16

3136264R1

SPRING

PRESSURE RELIEF VALVE

1шт.

17

3139620R1

SPRING WASHER

SPRING

1шт.

18

717222R1

O-RING

1шт.

19

3055199R1

O-RING

1шт.

20

3132828R91

PIPE CLAMP

ASSY, OIL PRESSURE AND SUCTION

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

1шт.

21

3055199R1

O-RING

2шт.

22

3132833R1

GEAR

IDLER

1шт.

23

3136439R1

GEAR

1шт.

Выбрано товаров: 39
