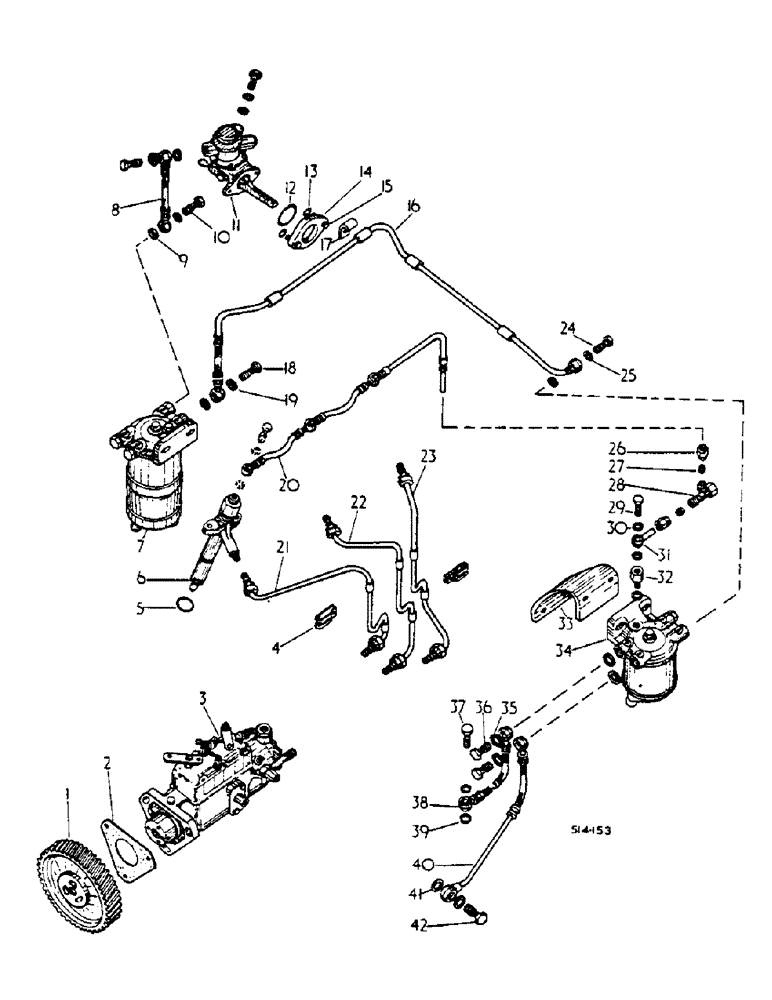

Запчасти Case IH 454 (12-46) - FUEL INJECTION PUMP AND CONNECTIONS, C.A.V. FUEL INJECTION Power

1

314417991

GEAR ASSY, INJECTION PUMP

1шт.

181336

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

3шт.

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

.335 X .748 X .098

3шт.

2

3138779R1

GASKET

FUEL INJECTION PUMP

1шт.

3

3138780R91

PUMP

ASSY, FUEL INJECTION, SYNCHROMESH DRIVE TRACTORS, SEE FIGURE 12-65

1шт.

3

3138781R91

SPARE PART ASSY, FUEL INJECTION, HYDROSTATIC DRIVE TRACTORS, SEE FIGURE 12-65

1шт.

9635082

NUT,5/16" - 18, Gr 5

3шт.

103320

LOCK WASHER,5/16"

3шт.

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

.335 X .748 X .098

3шт.

3144256R1

SLEEVE

SEALING

1шт.

4

3132766R1

CLAMP

PIPE

2шт.

109084

NUT,1/4"-20, G5

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

103319

LOCK WASHER,1/4"

2шт.

5

717203R1

O-RING,4mm Thk x 17mm ID, 72 Duro

INJECTION NOZZLE SEALING

3шт.

6

3138785R91

NOZZLE INJECTION

ASSY, SEE FIGURE 12-62

3шт.

425-115

NUT,5/16"-24, G5

6шт.

7

3138805R91

NO LONGER SERVICED

FILTER ASSY, FUEL PRIMARY, SEE FIGURE 12-64

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

933620R1

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.1mm Thk

Disc

2шт.

8

3138804R1

SPARE PART FUEL FEED PUMP

1шт.

9

933610R1

SEALING RING,M14 x 18 x 1.8

Packing

6шт.

10

710098R2

BANJO BOLT,M14 x 1.5 x 32mm

HOLLOW

3шт.

11

3132697R91

FUEL PUMP

ASSY, FEED, SEE FIGURE 12-73

1шт.

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

2шт.

933682R1

BELLEVILLE WASHER,M6 Bolt Size x 12.6mm OD x 0.7mm Thk

DISK, SPRING

2шт.

12

3055389R2

O-RING,2.5mm Thk x 32mm ID, 70 Duro

1шт.

13

3132869R1

O-RING

2шт.

14

3055391R22

NO LONGER SERVICED

FLANGE/Retired FLANGE, FEED PUMP

1шт.

15

3055388R1

STUD

2шт.

16

3138806R1

PIPE

PRIMARY TO FINAL FUEL FILTER

1шт.

17

3132052R1

CLIP

FUEL LINE

2шт.

3136366R1

SPACER

2шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

103320

LOCK WASHER,5/16"

2шт.

18

710098R2

BANJO BOLT,M14 x 1.5 x 32mm

HOLLOW

1шт.

19

933610R1

SEALING RING,M14 x 18 x 1.8

Packing

2шт.

20

3132826R1

LINE

PIPE, LEAK

1шт.

21

3138787R91

INJECTION PIPE

SPARE PART ASSY, CYL 1

1шт.

22

3138791R91

TUBE

PIPE ASSY, INJECTION, CYL

1шт.

23

3138793R91

PIPE

ASSY, INJECTION, CYL 3

1шт.

24

710098R2

BANJO BOLT,M14 x 1.5 x 32mm

HOLLOW

1шт.

25

933610R1

SEALING RING,M14 x 18 x 1.8

Packing

2шт.

26

3056137R1

PIPE UNION NUT,Coupling, M14 x 1.5

COUPLING

2шт.

27

3056136R1

SLEEVE,Cutting Ring, 8mm ID x 11mm OD x 9mm L

CUTTING

2шт.

28

3138814R1

TEE

SPARE PART

1шт.

29

3138812R1

SCREW

CONNECTING

1шт.

30

933697R1

SEALING RING,M10 x 13.5 x 1

1шт.

31

3138813R1

LINE

UNION, INLET

1шт.

32

795864R91

VALVE

ASSY, BALL CHECK

1шт.

33

3138808R1

SPARE PART FUEL FILTER

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

103321

LOCK WASHER,3/8"

2шт.

34

3138807R91

NO LONGER SERVICED

FILTER ASSY, FINAL FUEL, SEE FIGURE 12-63

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

933620R1

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.1mm Thk

Disc

2шт.

35

933610R1

SEALING RING,M14 x 18 x 1.8

Packing

4шт.

36

710098R2

BANJO BOLT,M14 x 1.5 x 32mm

HOLLOW

2шт.

37

717200R1

BANJO BOLT,M12 x 1.5 x 28mm

HOLLOW

1шт.

38

3138809R1

HOSE

FUEL FILTER TO INJECTION PUMP

1шт.

39

713845R1

SEALING WASHER,M12 x 15.5 x 1.5

2шт.

40

3138810R1

LINE

HOSE, OVERFLOW

1шт.

41

713845R1

SEALING WASHER,M12 x 15.5 x 1.5

2шт.

42

717200R1

BANJO BOLT,M12 x 1.5 x 28mm

HOLLOW

1шт.

3138786R91

PIPE, INJECTION, SET OF THREE, CONSISTS OF (1) BOLT 179793, (1) BOLT 179791, (1) NUT 109084, (2) CLAMP 3132766R1, (1) PIPE 3138787R91, (1) PIPE 3138791R91, (1) PIPE 3138793R91, (2) WASHER 3052189R1

1шт.
