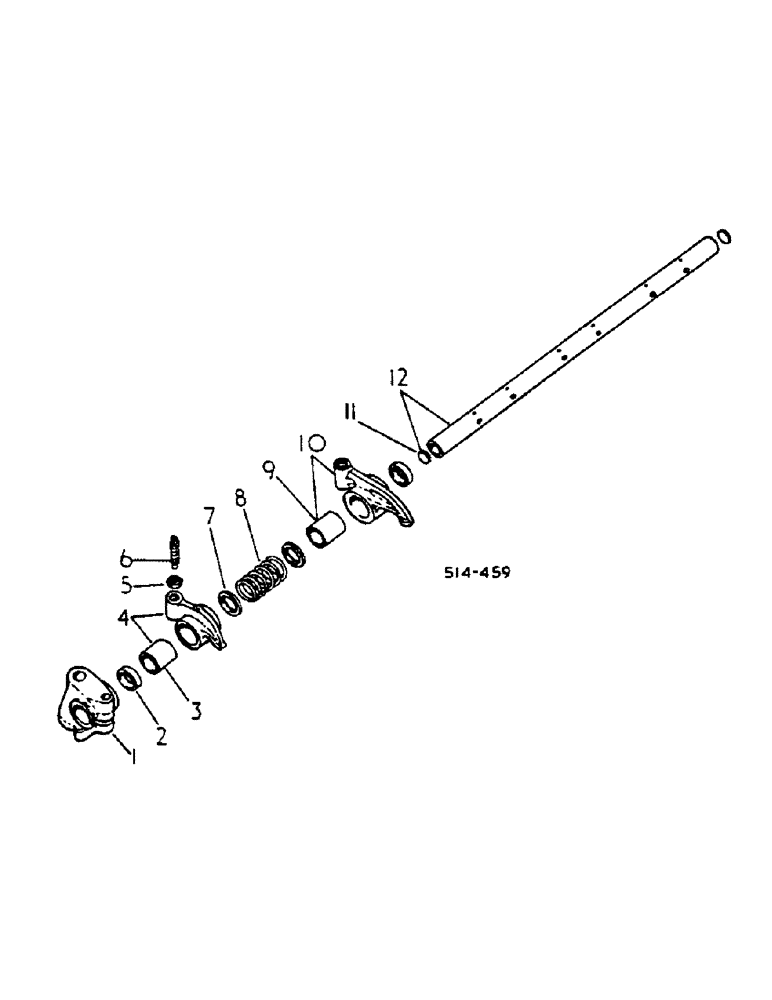

Запчасти Case IH 454 (12-41) - ROCKER ARM SHAFT AND ARMS Power

1

3144176R91

SUPPORT

PACKAGE, BRACKET ROCKER ARM SHAFT

1шт.

25-118

NUT,1/2"-20, G5

1/2-20 HEX

4шт.

179822

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

4шт.

103320

LOCK WASHER,5/16"

4шт.

2

3055068R1

BUSHING,22mm ID x 30mm OD x 6.8mm L

DISTANCE

5шт.

3

3132019R1

BUSHING,21.15mm ID x 26.09mm OD x 25.4mm L

3шт.

4

3055073R1

ARM ASSY, EXHAUST ROCKER W/BUSHING

3шт.

5

3132138R1

NUT

ROCKER ARM ADJUSTING

6шт.

6

3132137R1

ADJUSTMENT SCREW

Rocker arm

6шт.

7

3055669R1

THRUST WASHER

THRUST ROCKER ARM

6шт.

8

3055075R2

SPRING

ROCKER ARM

3шт.

9

3132019R1

BUSHING,21.15mm ID x 26.09mm OD x 25.4mm L

3шт.

10

3055072R1

ROCKER ARM

ASSY, INTAKE W/BUSHING

3шт.

11

933565R1

PLUG,M14, Conical

EXPANSION

2шт.

12

3055069R21

SHAFT

ROCKER ARM, W/PLUGS

1шт.
