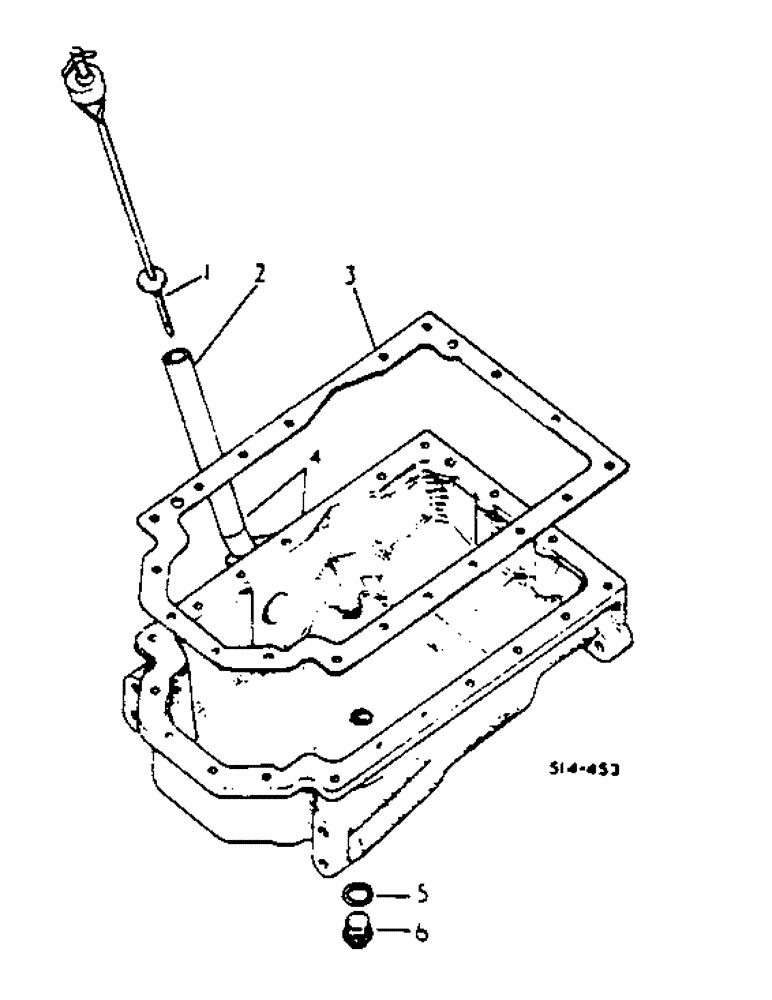

Запчасти Case IH 454 (12-36) - CRANKCASE OIL PAN Power

1

3136242R2

DIPSTICK

GAUGE ASSY, OIL LEVEL

1шт.

2

3136241R1

TUBE,29.556 mm OD, 250 mm Length

PIPE, OIL FILLING

1шт.

3

3055160R1

OIL PAN GASKET SET

OIL PAN

1шт.

4

3136042R95

SUMP

PAN ASSY, OIL

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

15шт.

103320

LOCK WASHER,5/16"

15шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

15шт.

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

2шт.

933570R1

WASHER

DISK, SPRING

4шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

5

933608R1

SEALING RING,M26 x 31 x 2

1шт.

6

3132544R2

PLUG

FILLER AND DRAIN

1шт.
