Запчасти Case IH 454 (12-35) - CRANKCASE SIDE COVER AND BREATHER Power

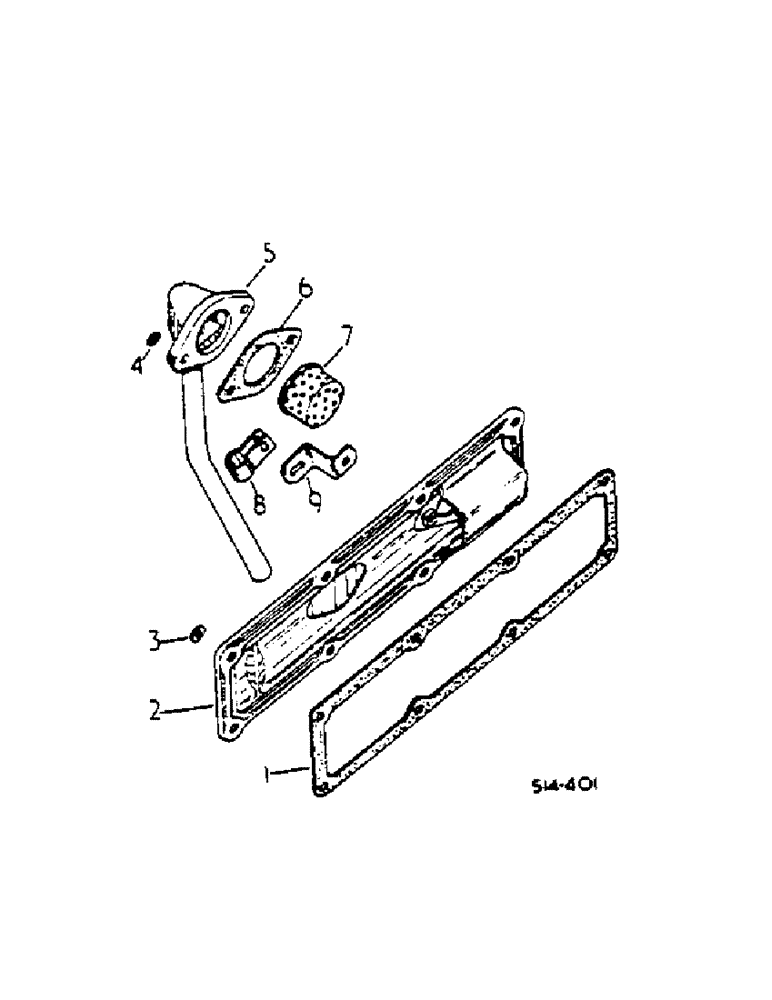

Схема запчастей Case IH 454 - (12-35) - CRANKCASE SIDE COVER AND BREATHER Power
3
8
2
7
1
4
6
9
5

Артикул

Название

Примечание

Количество

1

3055394R1

GASKET

SIDE COVER

1шт.

1

3136174R1

GASKET

SIDE COVER, OPTIONAL

1шт.

2

3055313R21

COVER ASSY

CRANKCASE SIDE, HYDROSTATIC CAV 200000 UP, SYNCHROMESH CAV 160000 UP

1шт.

2

3055312R11

COVER

ASSY, CRANKCASE SIDE, BOSCH INJECTION

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

8шт.

103320

LOCK WASHER,5/16"

8шт.

3

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

.355 X .748 X .098

8шт.

4

933625R1

LOCK WASHER

RING, PACKING

2шт.

5

3144020R91

BREATHER ASSY.

CRANKCASE

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

6

3055359R1

GASKET

BREATHER

1шт.

7

3055324R1

ELEMENT ASSY, FILTER BREATHER

1шт.

8

3144023R1

CLAMP

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

1шт.

103634

NUT

5/16-18 HEX

1шт.

9

3144022R1

BRACKET

LINK, FIXING

1шт.

179900

BOLT,Hex, 9/16" - 12 x 3/4", Gr 5

9/16-12 X 3/4 HEX HD CAP

1шт.

103374

COTTER PIN,3/32" x 1"

WASHER, 9/16 LOCK

1шт.

Выбрано товаров: 19
