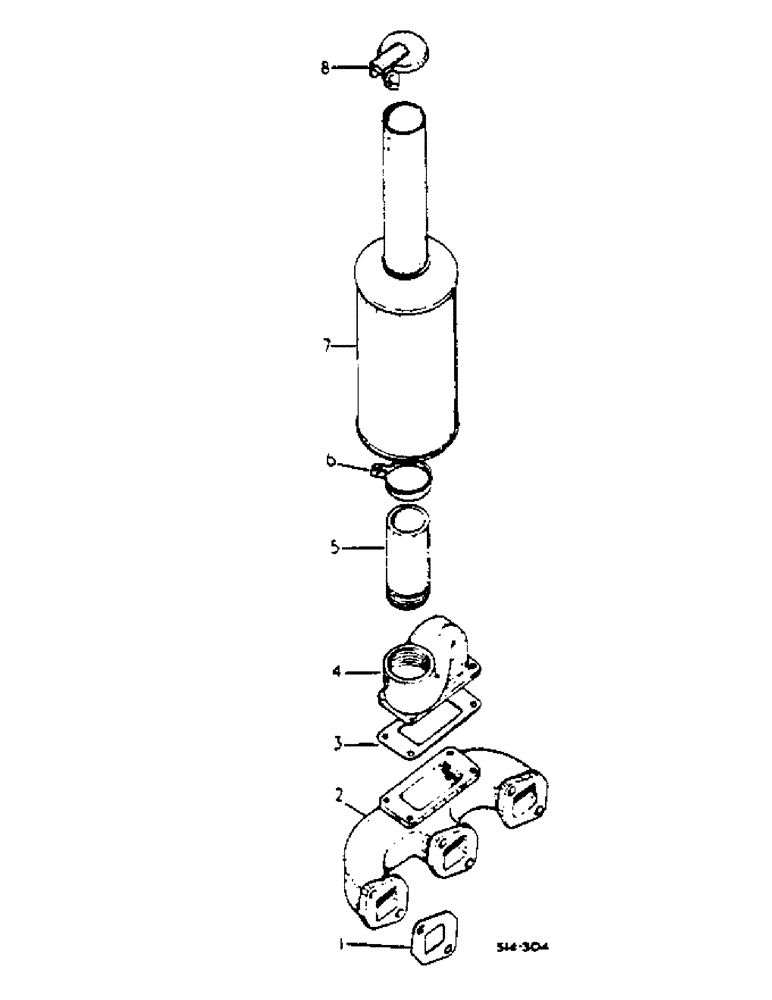

Запчасти Case IH 454 (12-15) - VERTICAL EXHAUST Power

1

3132434R1

MANIFOLD GASKET,0.5mm Thk

EXHAUST MANIFOLD

3шт.

2

3136069R1

MANIFOLD

EXHAUST

1шт.

20285H

WASHER

13/32 X 3/4 X 11 GA

6шт.

103026

NUT,3/8"-24, G5

6шт.

3

3136248R1

MANIFOLD GASKET,0.5mm Thk

EXHAUST MANIFOLD ELBOW

1шт.

4

3136250R1

ELBOW

EXHAUST MANIFOLD

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

103321

LOCK WASHER,3/8"

4шт.

5

534206R1

PIPE

EXHAUST

1шт.

5

534208R1

PIPE CLAMP

EXHAUST, SCANDINAVIAN MARKET

1шт.

5

3123375R1

PIPE

EXHAUST, MACHINES FITTED W/SEKURA ROOF HEATER

1шт.

6

403585R1

CLAMP

MUFFLER

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

3/8-16 X 1-3/8 HEX HD CAP

1шт.

103321

LOCK WASHER,3/8"

1шт.

102635

NUT,3/8"-16, G5

1шт.

7

529372R1

MUFFLER

1шт.

8

529366R1

CAP

RAIN

1шт.

181593

BOLT,Hex, 5/16" - 24 x 5/8", Gr 5

SCREW, 5/16-24 X 5/8 ZND HEX HD CAP

2шт.

138538

LOCK WASHER

5/16 C-Z INT TOOTH

4шт.
