Запчасти Case IH 454 (12-13) - UNDERSLUNG EXHAUST AND MANIFOLD Power

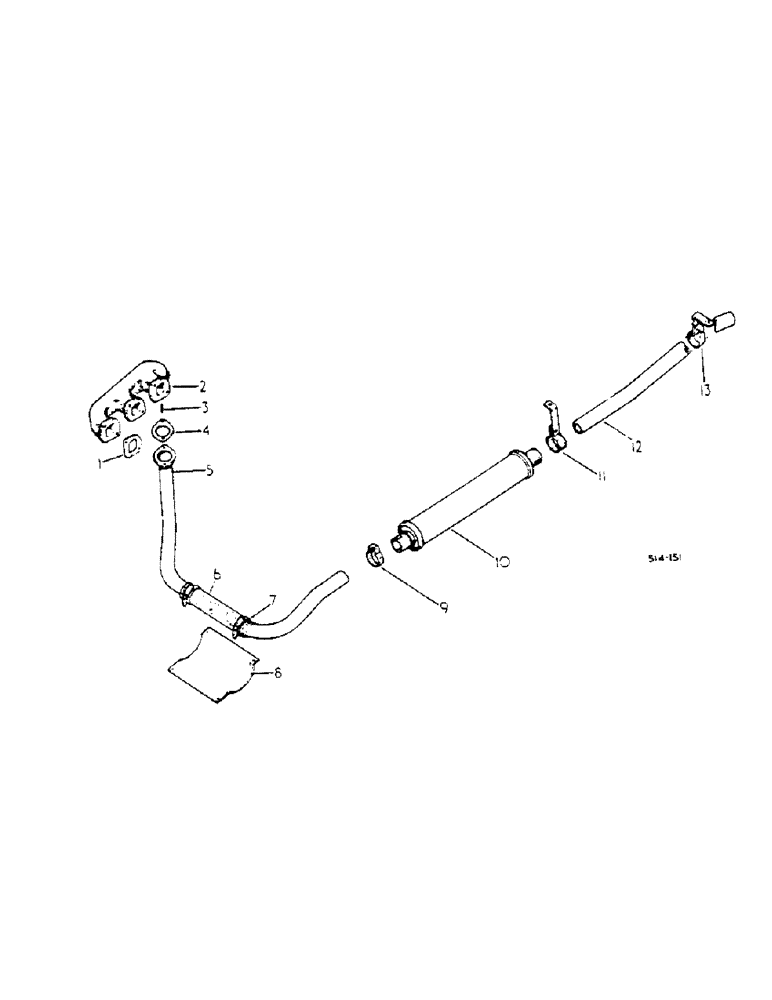

Схема запчастей Case IH 454 - (12-13) - UNDERSLUNG EXHAUST AND MANIFOLD Power
8
12
2
6
1
11
3
5
9
7
10
13
4

Артикул

Название

Примечание

Количество

1

3132434R1

MANIFOLD GASKET,0.5mm Thk

EXHAUST MANIFOLD

3шт.

2

3055124R12

MANIFOLD ASSY

EXHAUST

1шт.

103026

NUT,3/8"-24, G5

8шт.

103321

LOCK WASHER,3/8"

2шт.

20285H

WASHER

13/32 X 3/4 X 11 GA

6шт.

3

3055663R1

STUD

EXHAUST MANIFOLD

2шт.

4

401486R1

MANIFOLD GASKET

EXHAUST MANIFOLD PIPE

1шт.

5

401485R11

NO LONGER SERVICED

PIPE ASSY, EXHAUST MANIFOLD

1шт.

6

375561R2

SLEEVE

ASBESTOS, UP TO 454/105046 AND 2400/100349

1шт.

6

114614C1

SHIELD

FIBERGLASS HEAT, 454/105047 AND 100350 UP

1шт.

7

279038R91

HOSE CLAMP,#32, 1.56/2.50 Type F Worm

NO 32 HOSE

2шт.

8

401483R1

GUARD, PIPE

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

4шт.

103321

LOCK WASHER,3/8"

4шт.

9

403826R1

CLAMP

MUFFLER

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

3/8-16 X 1-1/8 ZND HEX HD CAP

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

10

401489R1

MUFFLER

1шт.

11

401491R1

CLAMP

REAR MUFFLER SUPPORT

1шт.

14990R1

BOLT

5/16-18

1шт.

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

3/8-16 X 1-1/8 HEX HD CAP

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

103320

LOCK WASHER,5/16"

1шт.

12

401490R1

RING

PIPE, TAIL

1шт.

13

401492R1

SUPPORT

TAIL PIPE REAR

1шт.

413-1014

BOLT,Hex, 5/8" - 11 x 7/8", Gr 5

5/8-11 X 7/8 ZND HEX HD CAP

1шт.

191249

BOLT,Hex, 3/8" - 16 x 3 3/4", Gr 5

3/8-16 X 3-3/4 ZND HEX HD

2шт.

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

3/8-16 X 1-1/8 ZND HEX HD CAP

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

492-11062

BEARING WASHER,5/8"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

2шт.

364811R1

SPACER,10.7mm ID x 17.14mm OD x 27mm L

PIPE

2шт.

Выбрано товаров: 35
