Запчасти Case IH 454 (04-07) - PARK LOCK (5.1) - BRAKES

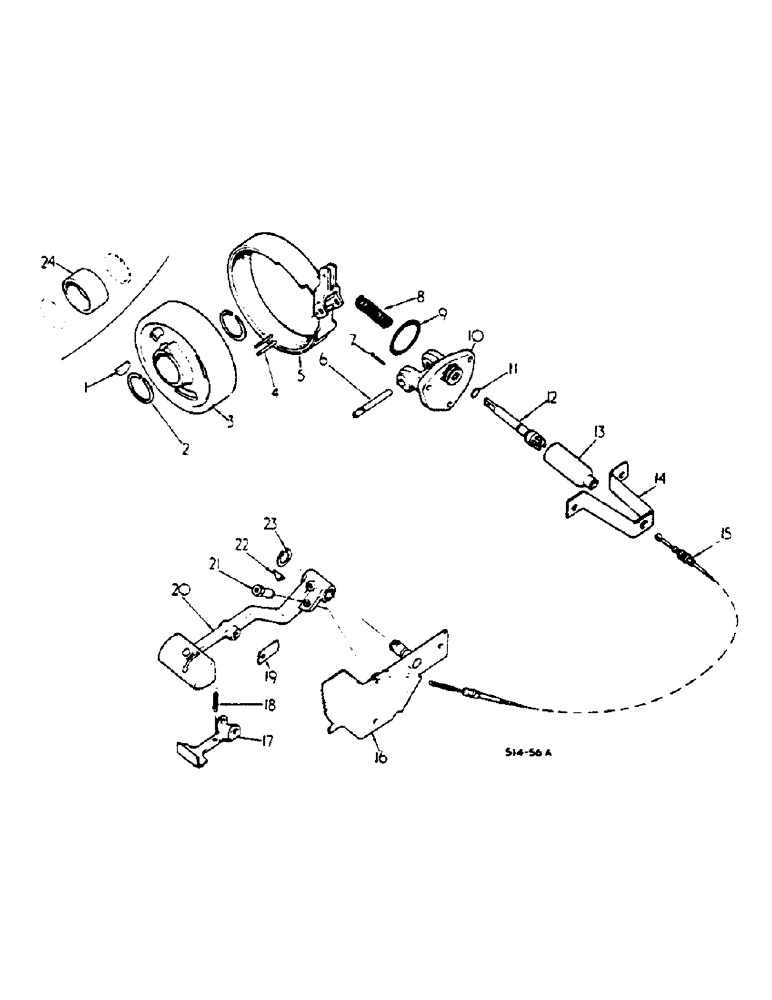

Схема запчастей Case IH 454 - (04-07) - PARK LOCK (5.1) - BRAKES
12
24
19
17
9
11
2
18
16
10
15
13
8
14
22
5
21
20
23
4
1
7
6
3

Артикул

Название

Примечание

Количество

1

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

2

527058R1

SNAP RING

RETAINING

2шт.

3

399828R1

HUB

BRAKE DRUM

1шт.

4

535544R1

PIN

1-1/2 X .250 DIA

2шт.

5

401992R3

BAND

ASSY, BRAKE AND ACTUATING TOGGLE

1шт.

16616R1

CLEVIS PIN,5/16" x .940"

5/16 X 31/32 ROD END

1шт.

103373

COTTER PIN,3/32" x 3/4"

1шт.

6

401998R1

PIVOT PIN

PARKING BRAKE PIVOT

1шт.

7

32-822

COTTER PIN,1/8" x 1 3/8"

1шт.

8

402000R1

SPRING

PARKING BRAKE RETURN

1шт.

9

383017R1

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

2-9/16 X 2-3/4 X 3/32, PARKING BRAKE PIVOT

1шт.

10

401997R1

PIVOT

PARKING BRAKE

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

3шт.

103321

LOCK WASHER,3/8"

1шт.

11

375271R1

O-RING,0.426" ID x 0.07" Width

7/16 X 9/16 X 1/16, PIVOT PLUNGER

1шт.

702269R1

HEADED PIN,5/16" x 15/16"

5/16 X 15/16 STD-HD

1шт.

95-11034

WASHER,1/4"

11/32 X 11/16 X .051

1шт.

103384

COTTER PIN,1/8" x 3/4"

1шт.

12

402014R1

PLUNGER

PARKING BRAKE PIVOT

1шт.

13

402015R1

BOOT

CABLE PROTECTION

1шт.

14

401999R1

SUPPORT

BRACKET, CABLE HSG ANCHOR LOWER

1шт.

15

529084R1

NO LONGER SERVICED

CABLE ASSY, PARKING BRAKE

1шт.

16

402001R2

BRACKET

ASSY, PARKING BRAKE RATCHET

1шт.

17

404493R2

HANDLE

PARKING BRAKE PAWL

1шт.

Q1329

HEADED PIN,1/4" x 1 3/4"

1/4 X 1-3/4 STD-HD

1шт.

16558R1

WASHER

17/64 X 5/8 X .036

1шт.

103384

COTTER PIN,1/8" x 3/4"

1шт.

18

402731R1

SPRING

PAWL HANDLE

1шт.

19

534318R1

NO LONGER SERVICED

BAR

1шт.

20

402005R3

LEVER

PARKING BRAKE HAND

1шт.

21

402013R1

NUT

5/16-24 ADJUSTABLE PIVOT

1шт.

114493

JAM NUT,Jam, 5/16"-24, G5

1шт.

148150

HAIR PIN COTTER,3/8" Retainer

SPRING, 3/8 RETAINER

2шт.

22

20605R1

LUBE NIPPLE,45 Degree, 3/16" x .62" lg, Drive

1/4 45 DEG. ANGLE DRIVE TYPE

1шт.

23

269181R1

SNAP RING,#75, Ext

parking brake hand lever #75, Ext

1шт.

24

528450R1

SPACER

PARK BRAKE DRUM, TRACTORS W/HAND OPERATED DRUM BRAKE

1шт.

Выбрано товаров: 36
