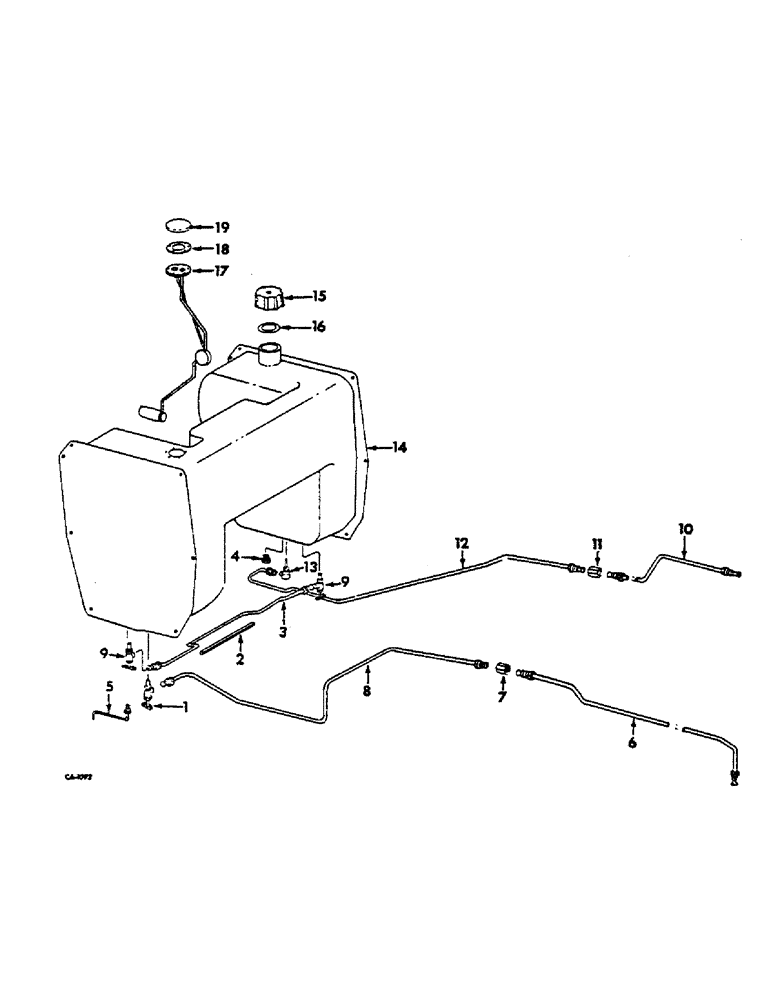

Запчасти Case IH 454 (12-06) - FUEL TANK SUPPORTS AND PIPING, BOSCH INJECTION Power

1

528926R1

VALVE,1/2" - 20 x 3/8" - 18 NPTF

ASSY, SHUT OFF

1шт.

2

530107R1

FUEL HOSE,0.31" ID x 10.00"

Balance Tube Spacer

1шт.

3

528931R1

TUBE

ASSY, BALANCE

1шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

1/2-20 INVERTED FLARED TUBE

2шт.

4

222-1014

HYD CONNECTOR,1/2"-20 Inv Fl x 1/8" NPT

CONNECTOR, 1/8 PT X 5/16 INVERTED FLARED TUBE, USED W/UNDERSLUNG EXHAUST ATT

1шт.

5

528923R1

TUBE

ASSY, TANK BREATHER

1шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

1/2-20 INVERTED FLARED TUBE, USED W/UNDERSLUNG EXHAUST ATT

2шт.

6

537536R1

TUBE

ASSY, UNION TO DIESEL FILTER

1шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

1/2-20 INVERTED FLARED TUBE

2шт.

7

137414

CHAIN

5/16 INVERTED FLARED TUBE

1шт.

8

537537R1

TUBE

ASSY, UNION TO SHUT OFF VALVE

1шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

1/2-20 INVERTED FLARED TUBE

2шт.

9

536002R1

VALVE

ASSY, SHUT-OFF

2шт.

10

537540R1

TUBE

ASSY, FUEL RET., OVERFLOW TO UNION

2шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

1/2-20 INVERTED FLARED TUBE

2шт.

11

222-1014

HYD CONNECTOR,1/2"-20 Inv Fl x 1/8" NPT

5/16 INVERTED FLARED TUBE

1шт.

12

537538R1

TUBE ASSY.

FUEL RET. UNION TO CHECK VALVE

1шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

1/2-20 INVERTED FLARED TUBE

2шт.

13

528929R1

CHECK VALVE

ASSY

1шт.

14

529371R91

FUEL TANK

ASSY, W/FILLER CAP

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

8шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

103320

LOCK WASHER,5/16"

8шт.

103321

LOCK WASHER,3/8"

2шт.

9635082

NUT,5/16" - 18, Gr 5

8шт.

102635

NUT,3/8"-16, G5

2шт.

15

529370R1

FILLER CAP

ASSY, FUEL TANK

1шт.

16

23977DB

GASKET

FUEL TANK FILLER CAP

1шт.

17

529790R1

SENDER UNIT

FUEL GAUGE SENDING

1шт.

18

528359R1

GASKET

SENDING UNIT

1шт.

19

528360R1

CAP

COVER, SENDING UNIT

1шт.

463-1108

SCREW,Hex Hd, #10-24 x 1/2"

10-24 X 1/2 C-Z HEX HD MACH

5шт.

533199R1

SEALING WASHER

SENDING UNIT COVER

4шт.

440-1106

SCREW,Cross Pan Hd, #10-24 x 3/8"

1шт.

796002R1

COPPER WASHER

SENDING UNIT COVER SEALING

1шт.

536009R1

FUEL HOSE,0.31" ID x 2.50"

Fuel Line, Used W/REF. 6, 10, and 12

3шт.

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP

1шт.
