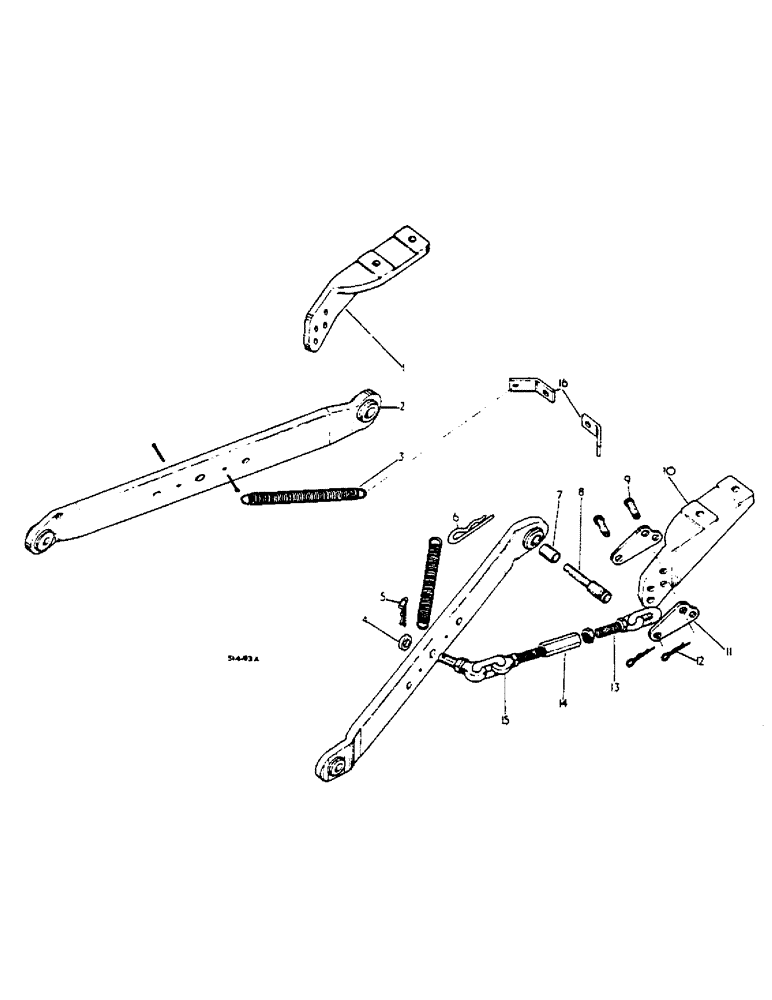

Запчасти Case IH 454 (09-08) - THREE POINT HITCH, LOWER LINKS, WITH OUTSIDE CHECK CHAINS (12) - FRAME

1

529874R1

SUPPORT

BRACKET, CHECK CHAIN LH

1шт.

SERVICE PART FOR TRACTORS W/AUTOMATIC HITCH & W/OUTSIDE CHECK CHAIN

1шт.

SERVICE PART FOR TRACTORS W/O AUTOMATIC HITCH & W/OUTSIDE CHECK CHAIN

1шт.

271562

SHIELD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 X 2 HEX HD CAP

2шт.

103325

LOCK WASHER,5/8"

2шт.

2

529870R1

LOWER LINK

ASSY.

2шт.

SERVICE PART FOR TRACTORS W/AUTOMATIC HITCH & W/OUTSIDE CHECK CHAIN

1шт.

SERVICE PART FOR TRACTORS W/O AUTOMATIC HITCH & W/OUTSIDE CHECK CHAIN

1шт.

32-2024

COTTER PIN,5/16" x 1 1/2"

4шт.

3

662632R1

SPRING

CHECK CHAIN RESTRAINING

2шт.

SERVICE PART FOR TRACTORS W/AUTOMATIC HITCH & W/OUTSIDE CHECK CHAIN

1шт.

SERVICE PART FOR TRACTORS W/O AUTOMATIC HITCH & W/OUTSIDE CHECK CHAIN

1шт.

4

529894R1

WASHER

ADJ EYE BOLT CHAIN PIN

2шт.

SERVICE PART FOR TRACTORS W/AUTOMATIC HITCH & W/OUTSIDE CHECK CHAIN

1шт.

SERVICE PART FOR TRACTORS W/O AUTOMATIC HITCH & W/OUTSIDE CHECK CHAIN

1шт.

5

529895R1

CLIP

PIN, ADJ EYE BOLT PIN WASHER SPRING

2шт.

SERVICE PART FOR TRACTORS W/AUTOMATIC HITCH & W/OUTSIDE CHECK CHAIN

1шт.

SERVICE PART FOR TRACTORS W/O AUTOMATIC HITCH & W/OUTSIDE CHECK CHAIN

1шт.

6

538406R1

COTTER PIN

PIN, QUICK ATTACHABLE COTTER

2шт.

SERVICE PART FOR TRACTORS W/AUTOMATIC HITCH & W/OUTSIDE CHECK CHAIN

1шт.

SERVICE PART FOR TRACTORS W/O AUTOMATIC HITCH & W/OUTSIDE CHECK CHAIN

1шт.

7

530826R1

BUSHING

LOWER LINK

2шт.

SERVICE PART FOR TRACTORS W/AUTOMATIC HITCH & W/OUTSIDE CHECK CHAIN

1шт.

SERVICE PART FOR TRACTORS W/O AUTOMATIC HITCH & W/OUTSIDE CHECK CHAIN

1шт.

8

530825R1

PIN,31.75mm OD x 119.84mm L

LOWER LINK

2шт.

SERVICE PART FOR TRACTORS W/AUTOMATIC HITCH & W/OUTSIDE CHECK CHAIN

1шт.

SERVICE PART FOR TRACTORS W/O AUTOMATIC HITCH & W/OUTSIDE CHECK CHAIN

1шт.

9

528112R2

PIN,15.77mm OD x 54.61mm L

LIMITER CHAIN

4шт.

SERVICE PART FOR TRACTORS W/AUTOMATIC HITCH & W/OUTSIDE CHECK CHAIN

1шт.

SERVICE PART FOR TRACTORS W/O AUTOMATIC HITCH & W/OUTSIDE CHECK CHAIN

1шт.

10

529875R1

SUPPORT

BRACKET, CHECK CHAIN RH

1шт.

SERVICE PART FOR TRACTORS W/AUTOMATIC HITCH & W/OUTSIDE CHECK CHAIN

1шт.

SERVICE PART FOR TRACTORS W/O AUTOMATIC HITCH & W/OUTSIDE CHECK CHAIN

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 X 2 HEX HD CAP

2шт.

103325

LOCK WASHER,5/8"

2шт.

11

529873R1

STRAP, CHECK CHAIN ADJ

4шт.

SERVICE PART FOR TRACTORS W/AUTOMATIC HITCH & W/OUTSIDE CHECK CHAIN

1шт.

SERVICE PART FOR TRACTORS W/O AUTOMATIC HITCH & W/OUTSIDE CHECK CHAIN

1шт.

12

720631

COTTER PIN

ADJ STRAP

4шт.

SERVICE PART FOR TRACTORS W/AUTOMATIC HITCH & W/OUTSIDE CHECK CHAIN

1шт.

SERVICE PART FOR TRACTORS W/O AUTOMATIC HITCH & W/OUTSIDE CHECK CHAIN

1шт.

13

529879R2

BOLT,Eye & Chain

ASSY, EYE AND CHAIN ADJ

2шт.

SERVICE PART FOR TRACTORS W/AUTOMATIC HITCH & W/OUTSIDE CHECK CHAIN

1шт.

SERVICE PART FOR TRACTORS W/O AUTOMATIC HITCH & W/OUTSIDE CHECK CHAIN

1шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4-10 HEX JAM

2шт.

14

529885R1

TURNBUCKLE,3/4" - 10

CHECK CHAIN ADJ EYE BOLT

2шт.

SERVICE PART FOR TRACTORS W/AUTOMATIC HITCH & W/OUTSIDE CHECK CHAIN

1шт.

SERVICE PART FOR TRACTORS W/O AUTOMATIC HITCH & W/OUTSIDE CHECK CHAIN

1шт.

15

529886R2

BOLT

ASSY, LIFT LINK PIN AND CHAIN

2шт.

SERVICE PART FOR TRACTORS W/AUTOMATIC HITCH & W/OUTSIDE CHECK CHAIN

1шт.

SERVICE PART FOR TRACTORS W/O AUTOMATIC HITCH & W/OUTSIDE CHECK CHAIN

1шт.

1092610R1

DECAL

PRODUCT-GRAPHIC, SWAY CHAINS

1шт.

SERVICE PART FOR TRACTORS W/AUTOMATIC HITCH & W/OUTSIDE CHECK CHAIN

1шт.

SERVICE PART FOR TRACTORS W/O AUTOMATIC HITCH & W/OUTSIDE CHECK CHAIN

1шт.
