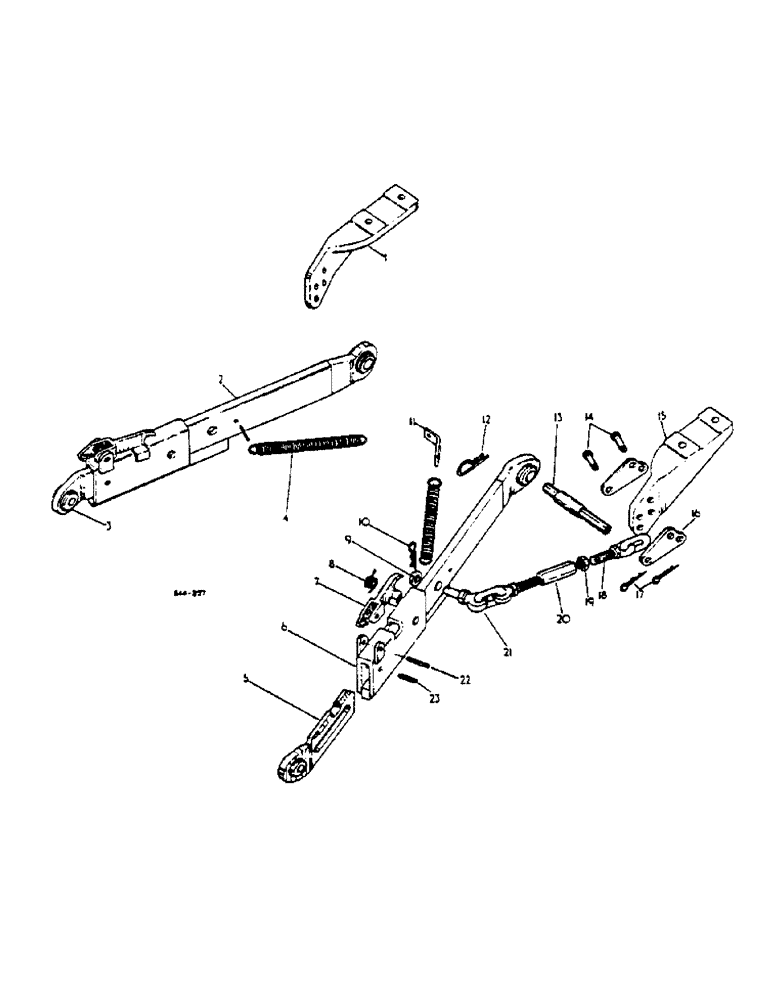

Запчасти Case IH 454 (09-05) - THREE POINT HITCH, LOWER LINKS, WITH OUTSIDE CHECK CHAINS, AUSTRALIAN MARKET (12) - FRAME

1

529876R1

BRACKET

CHECK CHAIN L.H.

1шт.

271562

SHIELD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 X 2 HEX HD CAP

2шт.

103325

LOCK WASHER,5/8"

2шт.

2

527961R2

LINK

ASSY, FRONT SECTION L.H. LOWER

1шт.

32-2024

COTTER PIN,5/16" x 1 1/2"

1шт.

3

403019R1

LOWER LINK

ASSY, REAR SECTION L.H.

1шт.

4

662632R1

SPRING

CHECK CHAIN RESTRAINING

2шт.

5

403020R1

LOWER LINK

ASSY, REAR SECTION R.H.

1шт.

6

527962R2

LINK

ASSY, FRONT SECTION R.H. LOWER

1шт.

32-2024

COTTER PIN,5/16" x 1 1/2"

1шт.

7

403023R1

LATCH

REAR SECTION LOWER

2шт.

8

403024R1

SPRING

2шт.

9

536658R1

WASHER

ADJ EYE BOLT CHAIN PIN

2шт.

10

529895R1

CLIP

PIN, ADJ EYE BOLT WASHER SPRING

2шт.

11

539226R1

BRACKET, SWAY CHAIN

2шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

103321

LOCK WASHER,3/8"

2шт.

12

538406R1

COTTER PIN

PIN, Q/ATTACHABLE COTTER

2шт.

13

402656R1

PIN

LOWER LINK

2шт.

14

528112R2

PIN,15.77mm OD x 54.61mm L

LIMITER CHAIN

4шт.

15

529877R1

BRACKET

SPARE PART CHECK CHAIN R.H

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 X 2 HEX HD CAP

2шт.

103325

LOCK WASHER,5/8"

2шт.

16

529878R1

STRAP

CHECK CHAIN ADJ

4шт.

17

720631R1

LINCH PIN

ADJ STRAP COTTER

4шт.

18

529832R2

BOLT ASSY, EYE AND CHAIN

2шт.

19

426897

JAM NUT,Jam, 3/4"-10, G5

3/4-10 HEX JAM

2шт.

20

529885R1

TURNBUCKLE,3/4" - 10

CHECK CHAIN

2шт.

21

529890R3

BOLT

ASSY, LOWER LINK PIN AND CHAIN

2шт.

22

591261R1

PIN,3/8" x 2 1/8", Coiled

2шт.

23

19903R1

PIN,1/2" x 1 3/4", Coiled

2шт.
