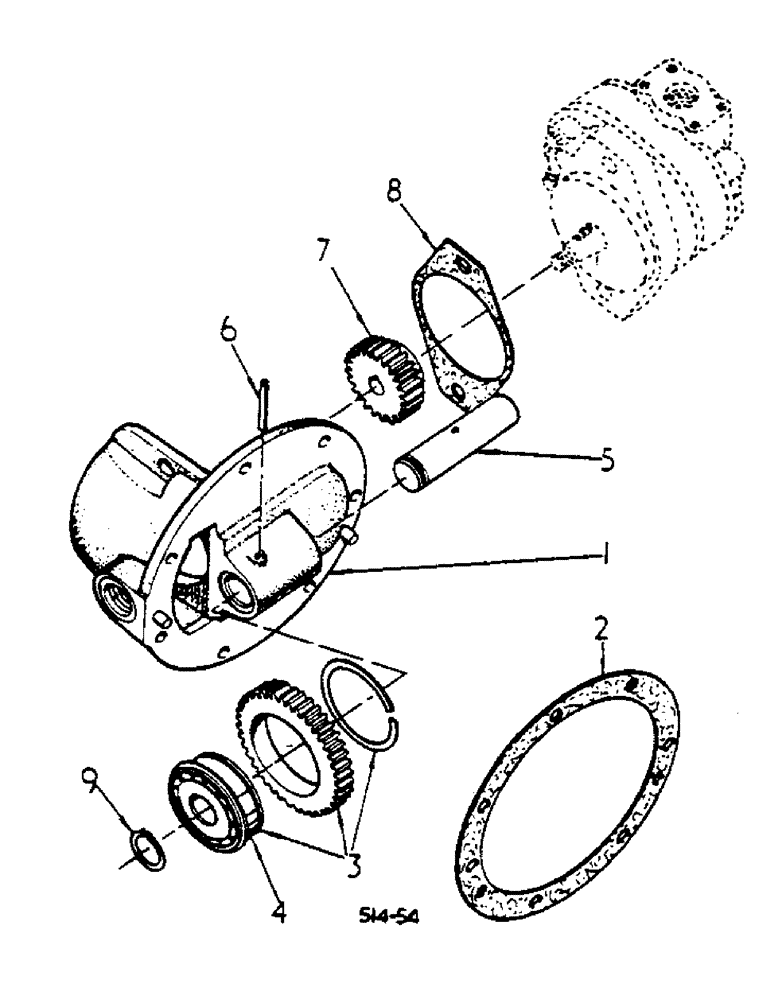

Запчасти Case IH 454 (10-51) - SIDE MOUNTED HYDRAULIC PUMP DRIVE (07) - HYDRAULICS

528643R92

PISTON ASSY

ATTACHMENT, SIDE MOUNTED HYD PUMP DRIVE, INDUSTRIAL TRACTORS

1шт.

1

528644R1

HOUSING ASSY.

HYD PUMP MOUNTING

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

7шт.

2

528650R1

GASKET

HYD PUMP MOUNTING HOUSING MED

1шт.

3

528646R11

GEAR

ASSY, HYD PUMP IDLER

1шт.

4

528647R91

BALL BEARING

HYD PUMP IDLER GEAR, OPTIONAL W/531795R91

1шт.

4

531795R91

BALL BEARING,25 mm ID x 62 mm OD x 1"

HYD PUMP IDLER GEAR, OPTIONAL W/528647R91

1шт.

5

528648R1

SHAFT

HYD PUMP IDLER GEAR

1шт.

6

38-31632

PIN,1/4" x 2", Coiled

1/4" x 2", Type A

1шт.

7

528652R1

GEAR

SIDE PUMP DRIVEN

1шт.

21121R1

LOCK NUT,1/2"-20, GB

1/2-20 NYLON INSERT HEX

1шт.

8

538898R1

GASKET

HYD PUMP

1шт.

179889

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1/2-13 X 2 HEX HD CAP

2шт.

103323

LOCK WASHER,1/2"

2шт.

102637

NUT,1/2"-13, G5

2шт.

9

515440R1

SNAP RING,#98, Ext

Ring, Snap, , gear #98, Ext

2шт.
