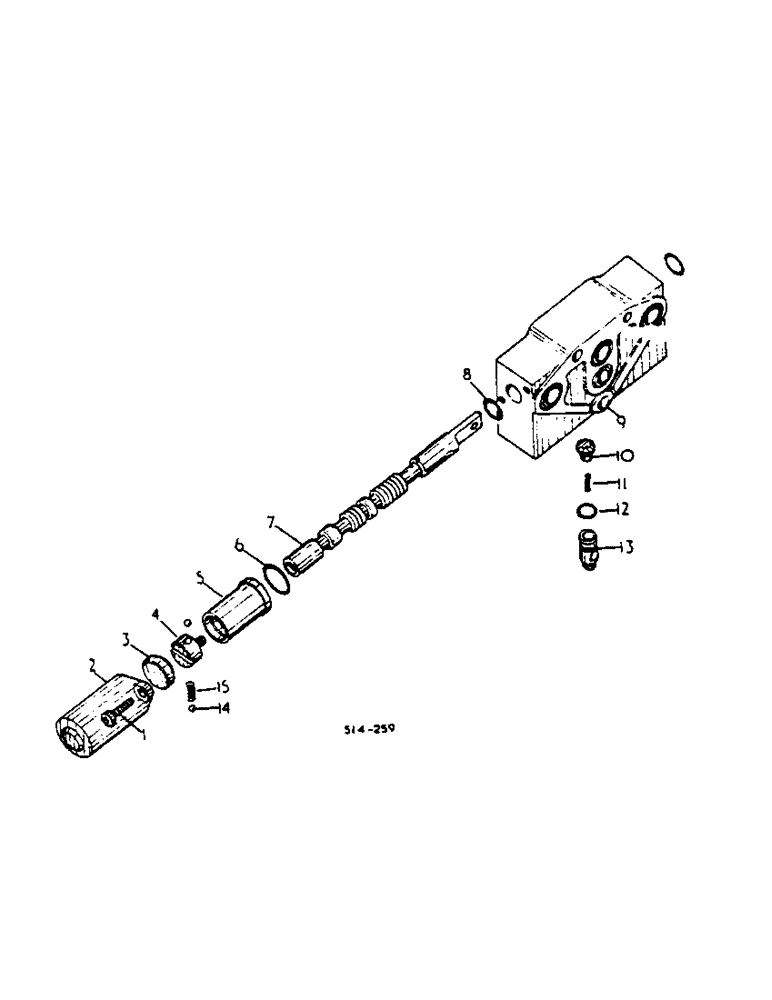

Запчасти Case IH 454 (10-50) - DOUBLE ACTING AUXILIARY HYDRAULIC VALVE, 454/008982 UP, 2400/000792 UP (07) - HYDRAULICS

3116056R92

HYDRAULIC VALVE

ASSY DOUBLE ACTING AUX

1шт.

1

3113064R1

SCREW

2шт.

2

3113058R1

CYLINDER END CAP

EXTENDED

1шт.

3

3116059R1

STOP

SPOOL

1шт.

4

3116057R1

CARRIER

DETENT

1шт.

5

3116060R1

CAGE

DETENT

1шт.

6

610547C1

O-RING,0.07" Thk x 0.864" ID, -20, Cl 7, 75 Duro

7/8 X 1 X 1/16, CLAS 5, NOT SERVICED SEPARATELY

1шт.

8

379181R2

O-RING 5/8 X 3/4 X 1/16, CLASS K

2шт.

10

3113063R1

CARRIER

VALVE, POPPET

1шт.

11

3113069R1

SPRING

CHECK VALVE

1шт.

12

391914R1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

7/16 X 9/16 X 1/16, CLASS 6

1шт.

13

3113070R1

GUIDE

CHECK VALVE

1шт.

14

17008R1

BALL,1/4" Dia

Steel

2шт.

15

3113065R1

SPRING

DETENT

1шт.
