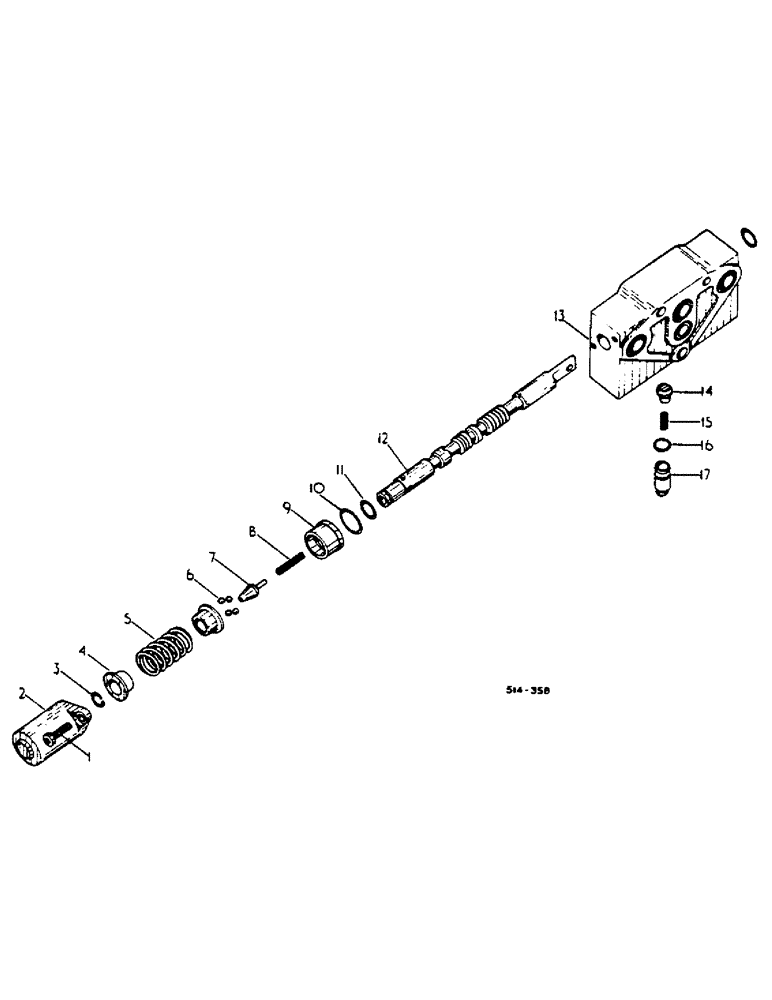

Запчасти Case IH 454 (10-49) - DOUBLE ACTING AUXILIARY HYDRAULIC VALVE, 3116056R93 (07) - HYDRAULICS

3116056R93

VALVE

DOUBLE ACTING AUX HYDRAULIC, W/SPRING RETURN SPOOLS

1шт.

1

3113064R1

SCREW

2шт.

2

3113058R1

CYLINDER END CAP

EXTENDED

1шт.

3

3118800R1

RING, SNAP

RING SNAP RETAINER

1шт.

4

3118795R1

SPRING SEAT

2шт.

5

3113060R1

SPRING

1шт.

6

17007

SLEEVE

BALL, 7/32 DIA, STEEL

4шт.

7

3118796R1

PIN

SPARE PART LOCKING

1шт.

8

3118798R1

SPRING

1шт.

9

31

SOCKET

CAGE, FLOAT DETENT

1шт.

10

610547C1

O-RING,0.07" Thk x 0.864" ID, -20, Cl 7, 75 Duro

7/8 X 1 X 1/16

1шт.

11

128359

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

5/8 X 3/4 X 1/16

2шт.

12

NSS

NOT SOLD SEPARAT

SPOOL, C1 SPADE END

1шт.

13

NSS

NOT SOLD SEPARAT

BODY, VALVE

1шт.

14

3116068R1

VALVE POPPET

1шт.

15

3113069R1

SPRING

CHECK VALVE

1шт.

16

391914R1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

7/16 X 9/16 X 1/16

1шт.

17

3113070R1

GUIDE

CHECK VALVE

1шт.
