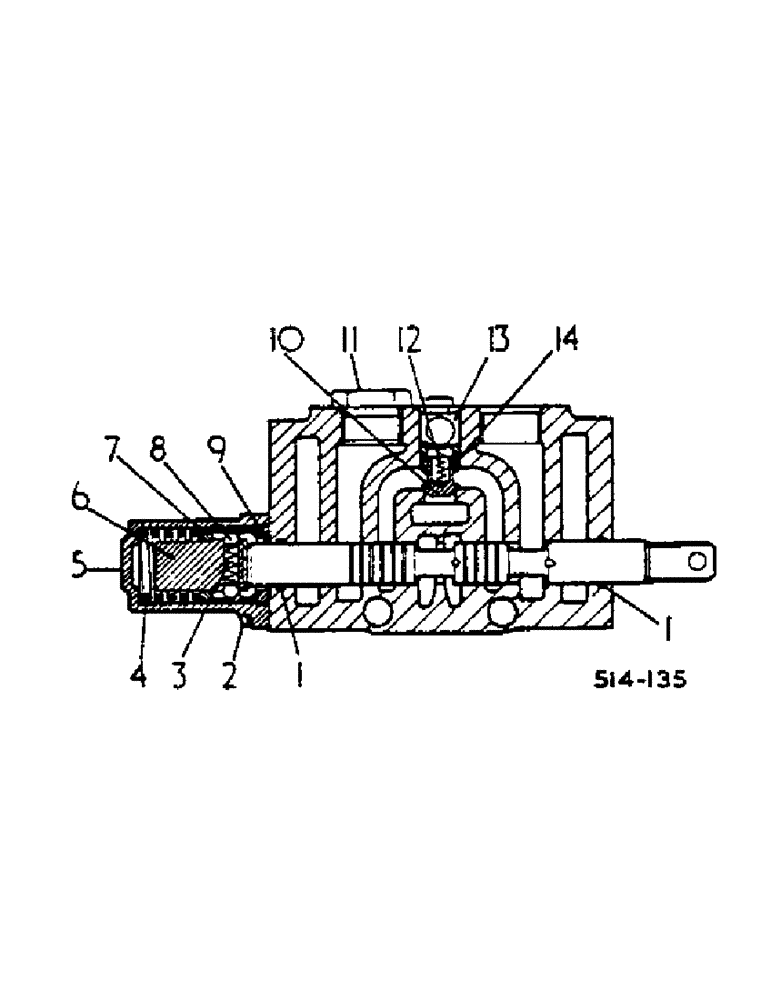

Запчасти Case IH 454 (10-47) - SINGLE ACTING AUXILIARY HYDRAULIC VALVE ASSY, UP TO 454/008849, UP TO 2400/000765 (07) - HYDRAULICS

529695R91

HYDRAULIC VALVE

ASSY, SINGLE ACTING AUX, ORDER VALVE 3116055R91

1шт.

1

128359

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

2шт.

2

3113064R1

SCREW

2шт.

3

3113065R1

SPRING

DETENT

1шт.

4

3113060R1

SPRING

1шт.

5

3113058R1

CYLINDER END CAP

EXTENDED

1шт.

6

3113063R1

CARRIER

DETENT

1шт.

7

3113061R1

SEAT

SPRING

1шт.

8

17008C1

BALL

1шт.

9

3113067R1

CAGE

SPARE PART DETENT

1шт.

10

3113068R1

VALVE POPPET

1шт.

11

3113071R1

PLUG

SPARE PART ASSY, 7/8 UNF

1шт.

12

3113069R1

SPRING

CHECK VALVE

1шт.

13

3113070R1

GUIDE

CHECK VALVE

1шт.

14

391914R1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

1шт.
