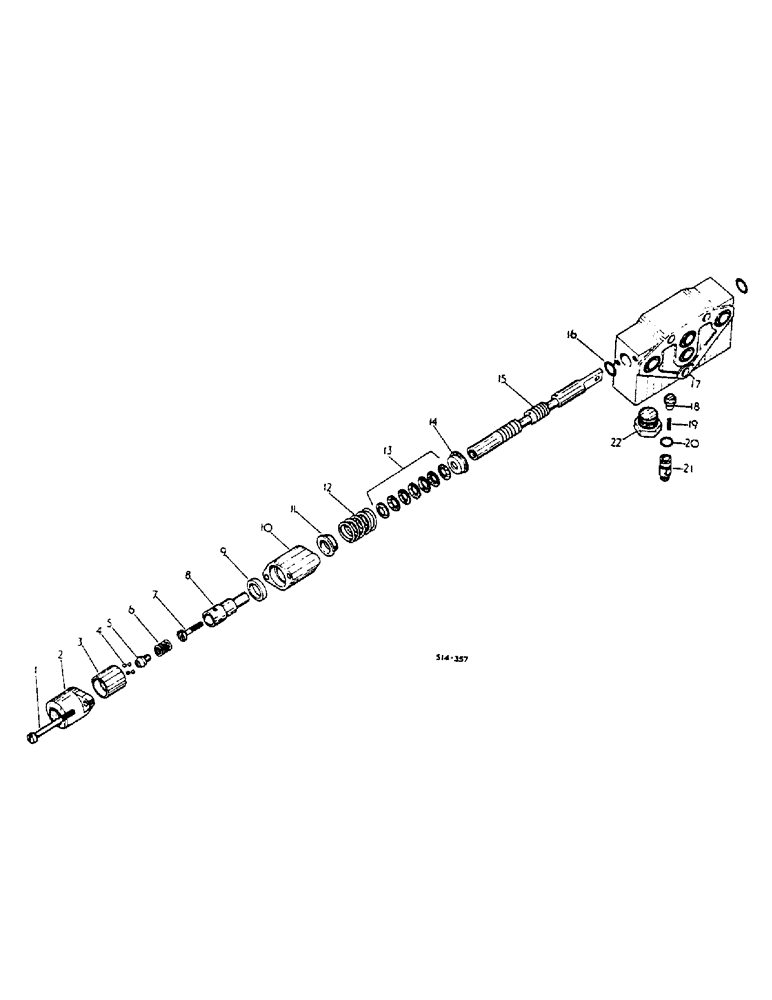

Запчасти Case IH 454 (10-44) - SINGLE ACTING AUXILIARY HYDRAULIC VALVE, 3116055R93 (07) - HYDRAULICS

3116055R93

VALVE

SINGLE ACTING AUX HYDRAULIC, W/SPRING RETURN SPOOLS

1шт.

1

3118788R1

SCREW

2шт.

2

3118787R1

CAP

END

1шт.

3

3118789R1

CAGE

DETENT

1шт.

4

17006R1

BALL

3/16 DIA STEEL

4шт.

5

3118791R1

PIN

LOCKING

1шт.

6

3118792R1

SPRING

SPARE PART

1шт.

7

3118786R1

CAPSCREW

CAP

1шт.

8

3118790R1

CARRIER

DETENT

1шт.

9

3118793R1

SPACER

1шт.

10

3118782R1

SPACER

END CAP

1шт.

11

3118783R1

SEAT

SPRING

1шт.

12

3113060R1

SPRING

1шт.

13

3118785R1

SPRING

DISC

7шт.

14

3118783R1

SEAT

SPRING

1шт.

15

NSS

NOT SOLD SEPARAT

SPOOL, B12 SPADE END

1шт.

16

128359

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

5/8 X 3/4 X 1/16

2шт.

17

NSS

NOT SOLD SEPARAT

BODY, VALVE

1шт.

18

3113068R1

VALVE POPPET

1шт.

19

3113069R1

SPRING

CHECK VALVE

1шт.

20

391914R1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

7/16 X 9/16 X 1/16

1шт.

21

3113070R1

GUIDE

CHECK VALVE

1шт.

22

3113071R1

PLUG

SPARE PART 7/8 UNE

1шт.
