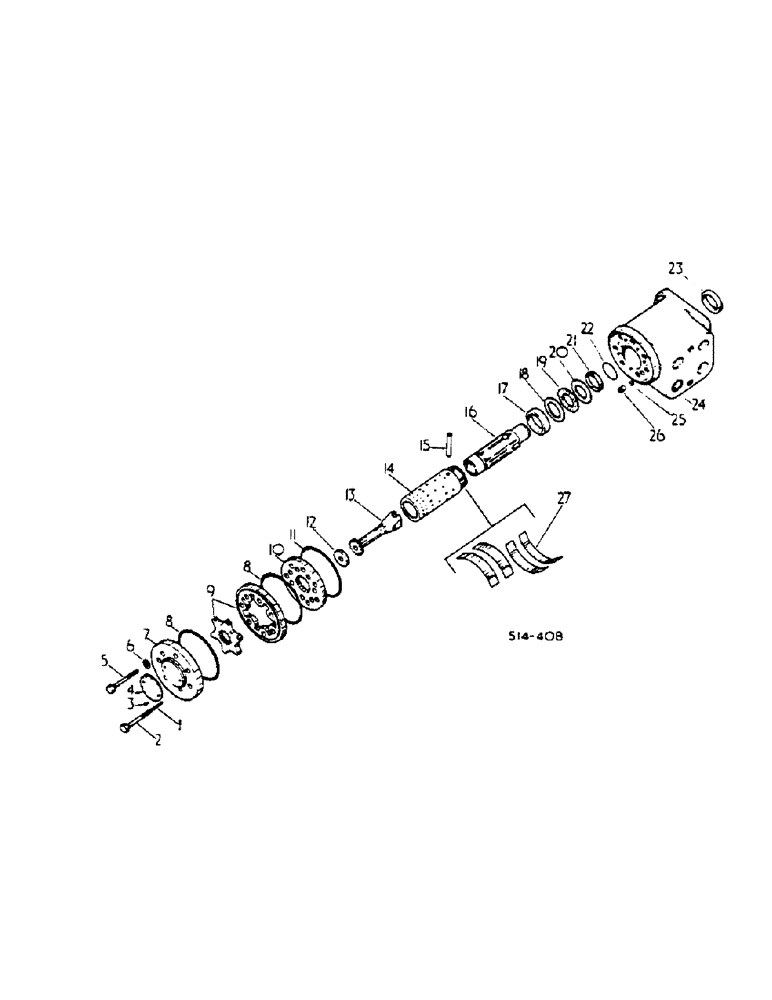

Запчасти Case IH 454 (10-42) - INTEGRAL HYDROSTATIC STEERING VALVE, 67698C91 (07) - HYDRAULICS

67698C91

HYDRAULIC VALVE

ASSY, INTEGRAL P/S

1шт.

1

3112271R1

PIN, ROLL

1шт.

2

SCREW

1шт.

3

217910

SCREW

2шт.

4

NSS

NOT SOLD SEPARAT

PLATE, RATING

1шт.

5

3146908R1

BOLT,M8 x 1 x 35mm

PLAIN

5шт.

5

3146907R1

BOLT,M8 x 1 x 35mm, Drilled

DRILLED

1шт.

6

3141538R1

WASHER

WASHER

7шт.

7

3112273R1

COVER

CAP, END

1шт.

8

O-RING, ORDER SEAL AND O-RING PACKAGE 538928R91

2шт.

9

538918R1

ROTOR ASSY.

DRIVE, ORBIT, CONSISTS OF: REF. 12 AND 13

1шт.

10

3112276R1

PLATE

VALVE

1шт.

11

O-RING, ORDER SEAL AND O-RING PACKAGE 538928R91

1шт.

12

538916R1

SPACER

1шт.

13

538915R1

DRIVE SHAFT

1шт.

14

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

15

3112269R1

PIN

CROSS

1шт.

16

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

17

3112264R1

RING

1шт.

18

3112268R1

WASHER

RACE, BEARING

1шт.

19

3112267R1

NEEDLE BEARING

1шт.

20

3112266R1

WASHER

AXIAL

1шт.

21

RING, KIN, ORDER SEAL AND O-RING PACKAGE 538928R91

1шт.

22

O-RING, ORDER SEAL AND O-RING PACKAGE 538928R91

1шт.

23

RING, SEAL, ORDER SEAL AND O-RING PACKAGE 538928R91

1шт.

24

NSS

NOT SOLD SEPARAT

HOUSING, CONSISTS OF: REF. 14 AND 16

1шт.

25

3112270R1

BALL

STEEL

1шт.

26

3112272R1

BUSHING

THREADED

1шт.

27

3112265R1

SPRING

PLATE

2шт.

27

71690R1

PLATE, SPRING

4шт.

28

67699C91

PEDESTAL

SHAFT, CONTROL W/NUT

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

4шт.

28

3118087R91

PEDESTAL

SHAFT, CONTROL W/NUT, SCANDINAVIAN MARKET

1шт.

F19646

LOCK NUT,13/16"-20, Thin

13/16-20

1шт.

538928R91

PACKAGE

SEAL AND O-RING, CONSISTS OF: REF. 8, 11, 21, 22 AND 23

1шт.
