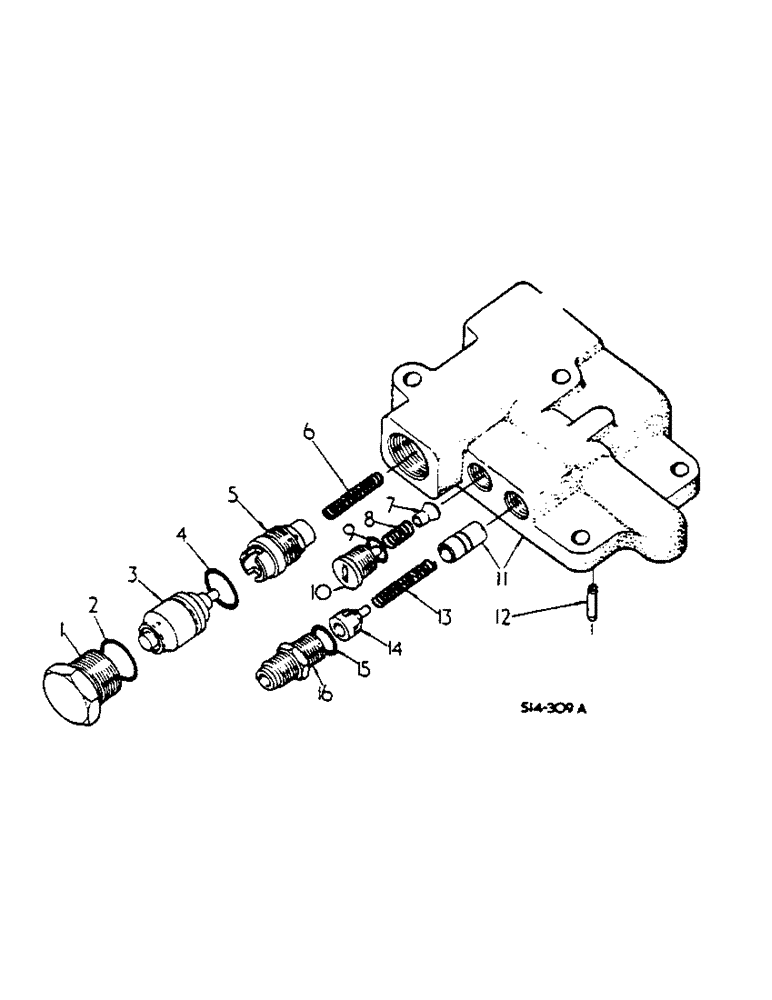

Запчасти Case IH 454 (10-38) - UNLOADING AND FLOW CONTROL VALVE (07) - HYDRAULICS

59098C93

VALVE

ASSY, UNLOADING AND FLOW CONTROL, 454/100196 UP, 2400/100029 UP

1шт.

400001R91

CONTROL VALVE

ASSY, UNLOADING AND FLOW, UP TO 454/100195, UP TO 2400/100028, ORDER VALVE 59098C92 W/O-RING 59099C1

1шт.

1

545494R2

PLUG

UNLOADING VALVE

1шт.

2

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1" OD TUBE

1шт.

3

376762R11

PISTON ASSY.

UNLOADING VALVE

1шт.

4

385713R1

O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro

13/16 X 1-1/16 X 1/8

1шт.

5

530138R1

BODY

ASSY, UNLOADING VALVE

1шт.

6

530141R1

SPRING

UNLOADING

1шт.

7

389587R3

CHECK VALVE

POPPET

1шт.

8

535547R1

SPRING

CHECK POPPET

1шт.

9

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD TUBE

1шт.

10

399851R1

PLUG

CHECK VALVE

1шт.

11

NSS

NOT SOLD SEPARAT

BODY AND SPOOL, UNLOADING AND FLOW CONTROL VALVE

1шт.

12

617057R1

PIN,1/4" x 1", Coiled

454/100196 up, 2400/100029 up

1шт.

12

399854R1

SHAFT

RETAINING

1шт.

21587R1

O-RING,0.07" Thk x 0.114" ID, -6, Cl 6, 90 Duro

UP TO 454/100195, UP TO 2400/100028, ORDER PIN 617057R1 W/ O-RING 59099C1

1шт.

13

530142R1

SPRING

FLOW CONTROL VALVE

1шт.

14

58367R1

GUIDE, SPRING, 454/100746 UP, 2400/100126 UP

1шт.

15

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD TUBE

1шт.

16

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, 3/4-16 ZND 37 DEG HYD FLARED TUBE SHORT SWIVEL, 454/100746 UP, 2400/100126 UP

1шт.

16

527910R1

FITTING

FLOW CONTROL, UP TO 454/100745, UP TO 2400/100125

1шт.
