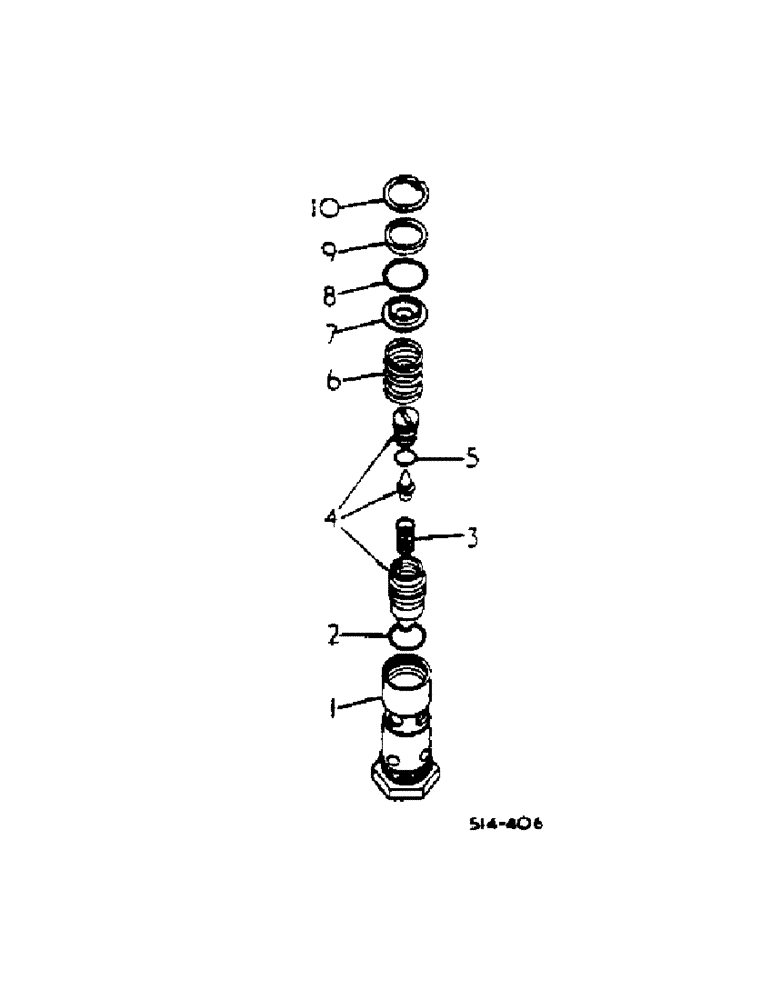

Запчасти Case IH 454 (10-37) - PILOT RELIEF VALVE (07) - HYDRAULICS

399858R92

VALVE

ASSY, PILOT RELIEF

1шт.

1

NSS

NOT SOLD SEPARAT

BODY, RELIEF VALVE

1шт.

2

379181R1

O-RING,0.614" ID x 0.07" Width

5/16 X 7/16 X 1/16, S, TREATED

1шт.

3

NSS

NOT SOLD SEPARAT

SPRING, PILOT RELIEF

1шт.

4

NSS

NOT SOLD SEPARAT

VALVE, PILOT RELIEF

1шт.

5

379366R1

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

5/16 X 7/16 X 1/16

1шт.

6

386040R1

SPRING

POPPET RETURN

1шт.

7

386042R1

PLATE

ORIFICE

1шт.

8

298385R1

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

O, 11/16 X 13/16 X 1/16

1шт.

9

386073R91

SCREEN

ASSY, PILOT RELIEF

1шт.

10

NSS

NOT SOLD SEPARAT

RING, RETAINING

1шт.
