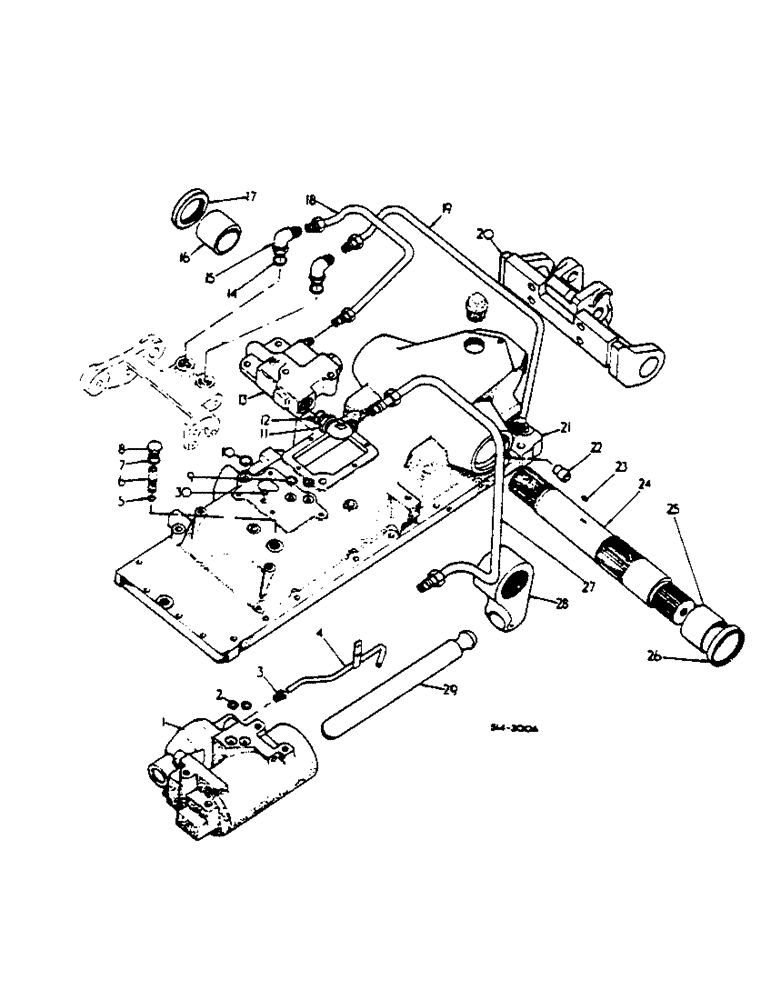

Запчасти Case IH 454 (10-25) - DRAFT CONTROL (07) - HYDRAULICS

1

399885R11

CYLINDER ASSY.

DRAFT CONTROL, SEE FIGURE 10-35

1шт.

179884

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 5, Full Thd

1/2-13 X 1-3/8 HEX-HD CAP

3шт.

400000R1

SEALING WASHER

CAP SCREW SEALING

3шт.

2

400002R1

OLIVE

SEAL, CYL TO HYD HSG

2шт.

3

222-504

TUBE NUT,9/16"-20

9/16-20 HI-DUTY TUBE FITTING

1шт.

4

400029R1

TUBE

ASSY, LUBE, UP TO 454/104660, 2400/100347

1шт.

4

60652C1

TUBE ASSY.

LUBE, 454/104661 UP, 2400/100348 UP

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

3шт.

5

702788R1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

3/8 X 9/16 X 3/32

1шт.

6

400095R91

HYDRAULIC VALVE

ASSY, CUSHION

1шт.

7

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD TUBE

1шт.

8

9410359

PLUG

3/4-16 STR THD O-RING BOSS

1шт.

9

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16 X 3/4 X 3/32

2шт.

10

21433R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

11/16 X 7/8 X 3/32

1шт.

11

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 C-Z 37DEG HYD FLARED TUBE ADJ STR THR 90 DEG

1шт.

12

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 TUBE

1шт.

13

59098C93

VALVE

ASSY, UNLOADING AND FLOW CONTROL, SEE FIGURE 10-38

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

179848

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

4шт.

14

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD TUBE

2шт.

15

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16, 37 DEG HYD FLARED TUBE ADJUSTABLE STR THREAD 90 DEG, 454/100236 UP, 2400/100040 UP

1шт.

15

9411105

ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16 37 DEG HYD FLARED TUBE ADJUSTABLE STRAIGHT THREAD 45 DEG, UP TO 454/100235 2400/100039

2шт.

16

399992R1

BUSHING

BEARING, ROCKSHAFT RH

1шт.

17

380771R91

SEAL

ROCKSHAFT RH OIL

1шт.

17

380770R91

OIL SEAL

ROCKSHAFT RH

1шт.

17

530096R91

SEAL

ROCKSHAFT RH OIL, OPTIONAL

1шт.

18

66759C1

TUBE ASSY.

VARIABLE FLOW, 454/100236 UP, 2400/100040 UP

1шт.

18

528170R1

TUBE

ASSY, VARIABLE VALVE

1шт.

18

528166R1

TUBE

ASSY, VARIBALBE VALVE TO FLOW CONTROL, UP TO 454/100235 2400/100039

1шт.

19

66758C1

TUBE

VARIABLE FLOW CONTROL SUPPLY, 454/100236 UP 2400/100040 UP

1шт.

19

527916R1

TUBE

VARIABLE FLOW CONTROL SUPPLY, UP TO 454/100235 2400/100039

1шт.

20

406997R91

SPRING

ASSY, DRAFT SENSING, Serial Range: -008683

1шт.

20

527229R91

SUPPORT

SPRING ASSY, DRAFT SENSING, Start Serial: 008684

1шт.

21047R1

HEX SOC SCREW,5/8"-11 x 1 3/4"

5/8-11 X 1-3/4 HEX SOC HD

4шт.

21

406003R21

HOUSING

ASSY, HYDRAULIC UNIT

1шт.

531143R2

STUD

TOP COVER LONG

2шт.

531144R1

STUD

TOP COVER SHORT

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

4шт.

22

399993R1

BUSHING

ECCENTRIC SHAFT

1шт.

23

376057R1

BUCKET TOOTH KEY

ROCKSHAFT HUB

1шт.

24

400049R2

SHAFT

HYD DRAFT CONTROL

1шт.

537126R2

PLATE

RETAINING LIFT ARM

2шт.

271560

PANEL,Hex, 5/8" - 11 x 1 3/4", Gr 5

2шт.

25

527749R1

BUSHING,63.52mm ID x 66.67mm OD x 50.8mm L

ROCKSHAFT LH

1шт.

26

380212R91

OIL SEAL

ROCKSHAFT LH

1шт.

26

530095R91

SEAL

ROCKSHAFT LH OIL, OPTIONAL

1шт.

27

66760R1

TUBE ASSY, DRAFT CONTROL PRESSURE, 454/100236 UP, 2400/100040 UP

1шт.

27

400006R1

TUBE

ASSY, DRAFT CONTROL PRESSURE, UP TO 454/100235, 2400/100039

1шт.

28

400050R1

LEVER

ROCKSHAFT BELLCRANK, Serial Range: -008683

1шт.

28

400053R1

LEVER

ROCKSHAFT BELLCRANK, Start Serial: 008684

1шт.

376069R1

SET SCREW

ROCKSHAFT BELLCRANK

1шт.

400052R1

PIN

HYD CYL CONN ROD

1шт.

16558R1

WASHER

17/64 X 5/8 X 18 GA

1шт.

83723R1

WAVE WASHER

SPRING

1шт.

103384

COTTER PIN,1/8" x 3/4"

1шт.

29

400054R1

PIN

ROD, HYD CYL CONNECTING, Start Serial: 008684

1шт.

29

400051R1

ROD

HYD CYL CONNECTING, Serial Range: -008683

1шт.

30

59099C1

O-RING,2.39mm Thk x 6.6mm ID

1шт.
