Запчасти Case IH 454 (10-19) - OIL FILTER (07) - HYDRAULICS

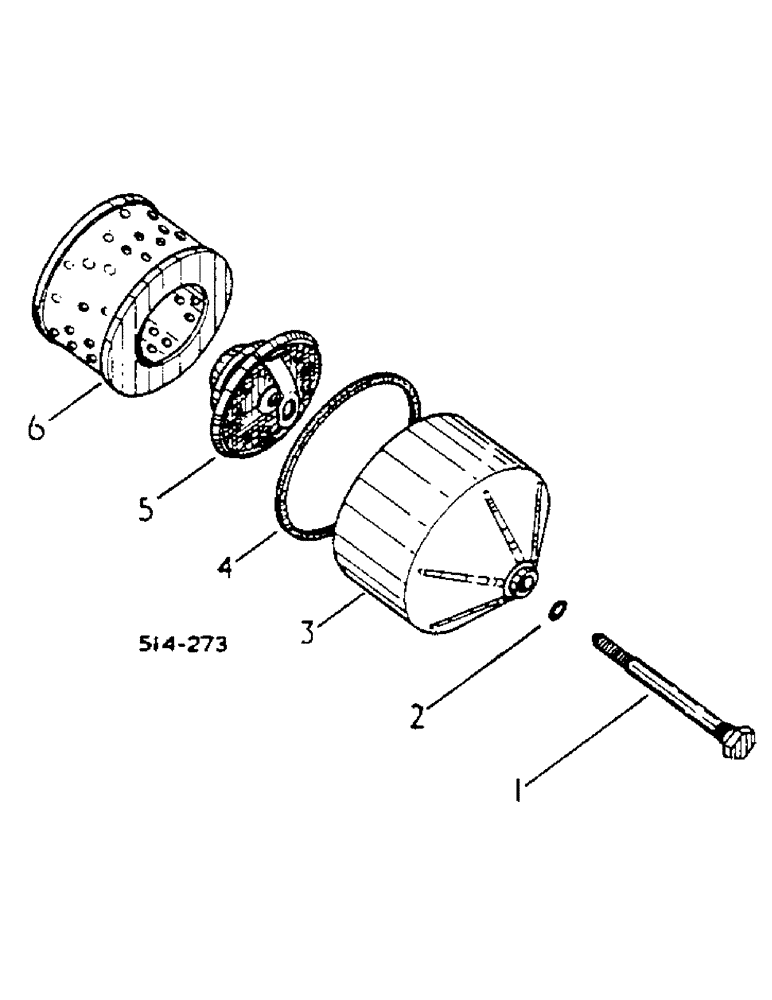

Схема запчастей Case IH 454 - (10-19) - OIL FILTER (07) - HYDRAULICS
6
2
1
4
3
5

Артикул

Название

Примечание

Количество

1

68202C1

BOLT

BOLT, CENTER

1шт.

2

375271R1

O-RING,0.426" ID x 0.07" Width

7/16 X 9/16 X 1/16, FILTER CASE SEAL

1шт.

3

68209C1

CASE

FILTER

1шт.

4

405462R1

GASKET,147.4mm ID x 154.51mm OD x 2.36mm Thk

Oil filter case

1шт.

5

405464R2

VALVE

SCREEN ASSY, BY-PASS

1шт.

6

NSS

NOT SOLD SEPARAT

ELEMENT ASSY, FURNISH OIL FILTER ELEMENT SERVICE PACKAGE

1шт.

530144R92

FILTER, ELEMENT

ELEMENT, FILTER PACKAGE SERVICE, OIL, CONSISTS OF (1) GASKET 405462R1, (1) O-RING 355966R1, (1) O-RING 375271R1, (1) ELEMENT

1шт.

65126C92

ELEMENT

PACKAGE, OIL, FOR HS TRACTORS, CONSISTS OF (1) GASKET 401070R1, (1) GASKET 405462R1, (1) O-RING 355966R1, (1) O-RING 375271R1, (2) ELEMENT

1шт.

Выбрано товаров: 8
