Запчасти Case IH 454 (10-18) - HYDRAULIC LUBE PUMP, SYNCHROMESH DRIVE (07) - HYDRAULICS

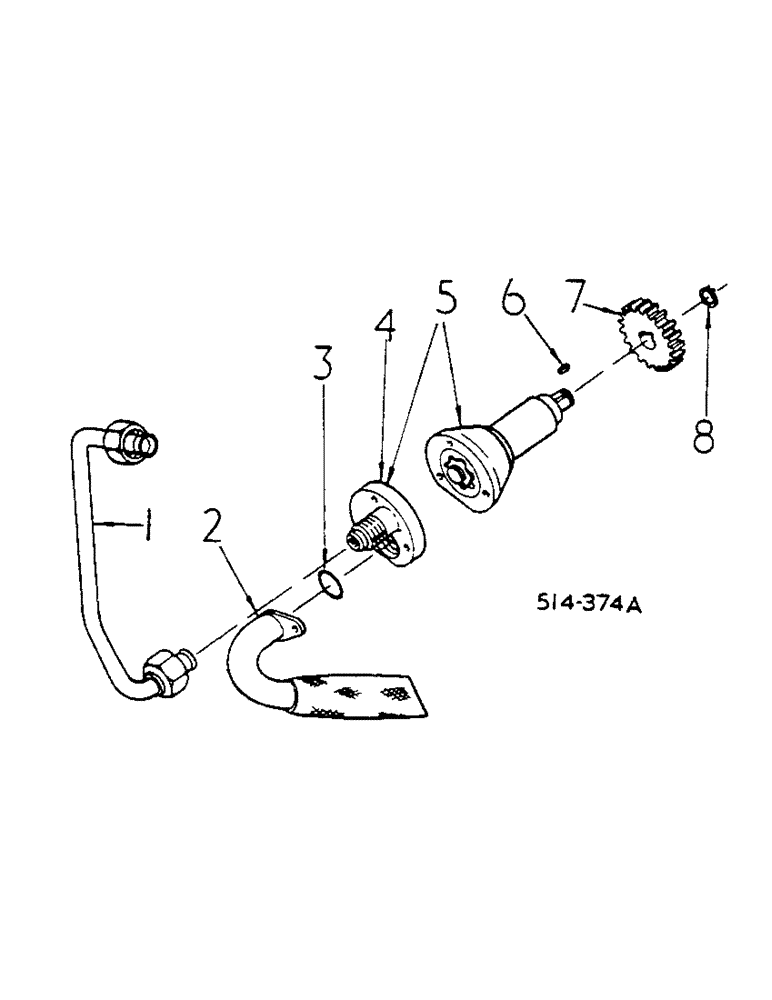

Схема запчастей Case IH 454 - (10-18) - HYDRAULIC LUBE PUMP, SYNCHROMESH DRIVE (07) - HYDRAULICS
4
1
7
8
5
6
2
3

Артикул

Название

Примечание

Количество

1

527423R1

PRESSURE PIPE

ASSY, TRANSFER PUMP OUTLET

1шт.

2

529099R1

SUCTION PIPE

TUBE, TRANSFER PUMP

1шт.

3

574069R1

O-RING,0.750" ID x .062"

3/4 X 7/8 X 1/16

1шт.

4

529275R2

PLATE

END

1шт.

5

528504R1

PUMP

ASSY, TRANSFER

1шт.

139371

SET SCREW,Hex Soc, 5/16"-18 x 1/2"

5/16-18 X 1/2 HEX SOC HD

1шт.

527424R1

SCREW

TRANSFER PUMP RETAINING

1шт.

6

529100R1

BUCKET TOOTH KEY

TRANSFER PUMP

1шт.

7

528095R1

PINION

GEAR, TRANSFER PUMP DRIVEN, 21T

1шт.

8

42123R1

RING, DRIVEN GEAR RETAINING SNAP

1шт.

Выбрано товаров: 10
