Запчасти Case IH 454 (10-16) - POWER STEERING, DANFOSS, 454/100236 UP, 2400/100040 UP (07) - HYDRAULICS

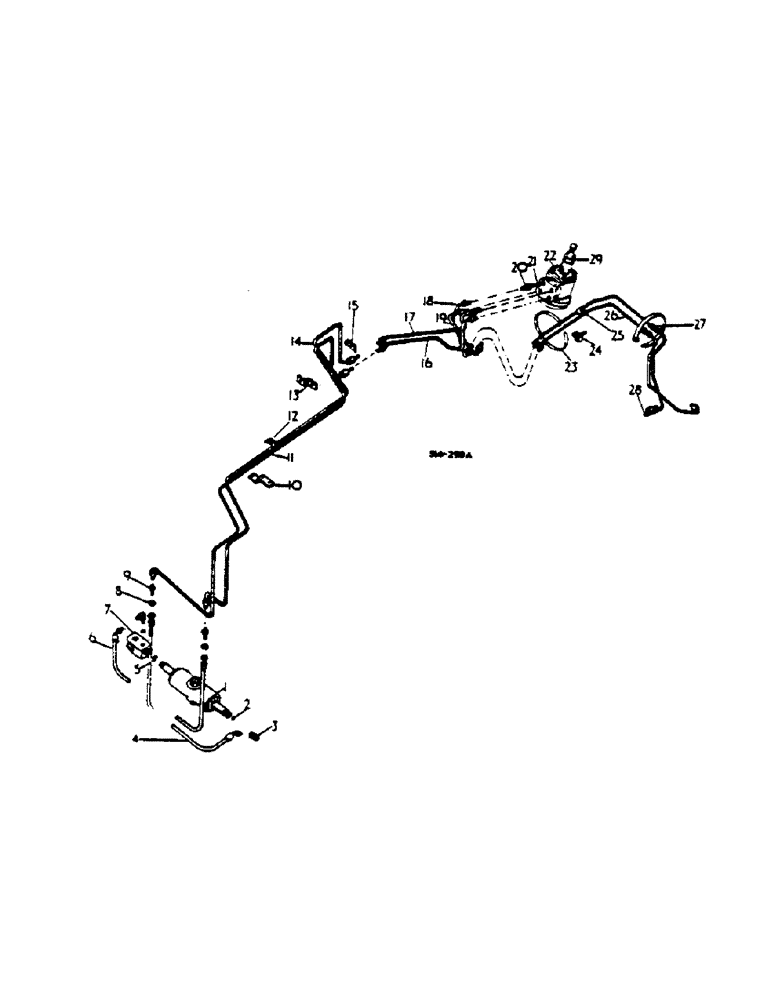

Схема запчастей Case IH 454 - (10-16) - POWER STEERING, DANFOSS, 454/100236 UP, 2400/100040 UP (07) - HYDRAULICS
13
15
20
7
11
5
26
6
10
23
14
9
17
3
27
29
2
18
4
24
12
22
1
28
21
25
19
16
8

Артикул

Название

Примечание

Количество

1

CYLINDER ASSY, HYD PS, FOR COMPONENTS, SEE LIST OF PARTS UNDER DETAILS OF POWER STEERING CYLINDER

1шт.

2

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3/8 OD tube

2шт.

3

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 C-Z 37 DEG HYD FLARED

2шт.

4

530132R1

HYDRAULIC HOSE,0.25" ID x 18.00", SAE 100R1

POWER STEERING CYL RH

1шт.

5

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD TUBE

1шт.

67488C2

PIN

POWER STEERING CYL

1шт.

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 SH DRIVE TYPE

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

1шт.

6

530131R1

HOSE

ASSY POWER STEERING CYL LH

1шт.

7

549670R1

CLEANER

CLEVIS, CYL END 3/4 THREAD

1шт.

8

9403293

LOCK NUT,Blkhd, 9/16"-18

9/16-18 C-Z BULKHEAD UNION

2шт.

9

9403254

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

9/16-18 C-Z 37 DEG HYD FLARED TUBE BULKHEAD

2шт.

115553

LOCK WASHER,Int Tooth, 5/8"

2шт.

10

529646R1

BRACKET

FRONT MANIFOLD SUPPORT

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

11

66108C1

TUBE

ASSY, POWER STEERING RH FORWARD

1шт.

12

384891R11

CLAMP

ASSY, POWER STEERING TUBE

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1/4-20 X 3/4 HEX HD CAP

1шт.

103319

LOCK WASHER,1/4"

1шт.

13

529642R1

BRACKET

FRONT MANIFOLD

1шт.

109084

NUT,1/4"-20, G5

1шт.

103319

LOCK WASHER,1/4"

1шт.

14

66106C1

TUBE

ASSY, POWER STEERING LH FORWARD

1шт.

15

529643R11

CLAMP

ASSY, POWER STEERING TUBE

1шт.

16

3116268R1

TUBE

ASSY, POWER STEERING RH REAR

1шт.

17

3116267R1

TUBE ASSY.

POWER STEERING LH REAR

1шт.

18

3116270R1

TUBE,0.375" OD

ASSY, POWER STEERING RETURN FORWARD, MACHINE NOT FITTED W/ISO MOUNTED CAB

1шт.

18

116826R91

HOSE ASSY, POWER STEERING RETURN FORWARD, MACHINE FITTED W/ISO MOUNTED CAB

1шт.

19

3116269R1

TUBE,0.375" OD

ASSY POWER STEERING PRESSURE FORWARD, MACHINE NOT FITTED W/ISO MOUNTED CAB

1шт.

19

3116827R91

HOSE

ASSY, POWER STEERING PRESSURE FORWARD, MACHINE FITTED W/ISO MOUNTED CAB

1шт.

20

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

9/16-18 C-Z 37 DEG HYD FLARED

4шт.

21

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD TUBE

4шт.

22

VALVE ASSY, INTEGRAL POWER STEERING, FOR COMPONENTS SEE LIST OF PARTS UNDER DETAILS OF INTEGRAL HYDROSTATIC STEERING VALVE

1шт.

23

306132C1

CABLE TIE,14.5" L

CABLE STRAP 14", REAR MANIFOLD TUBES

2шт.

24

529638R1

BRACKET

REAR MANIFOLD

1шт.

25

529637R1

GUIDE

MANIFOLD TUBE

1шт.

26

66105C1

TUBE ASSY.

POWER STEERING PRESSURE REAR

1шт.

27

536009R1

FUEL HOSE,0.31" ID x 2.50"

Spacer

2шт.

28

66104C1

PIPE

TUBE ASSY, POWER STEERING RETURN REAR, MACHINE NOT FITTED W/ISO MOUNTED CAB

1шт.

28

3116828R1

TUBE ASSY.

POWER STEERING RETURN REAR

1шт.

9410280

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

3/8 HYD 37 DEG FLARED TUBE SWIVEL, M.C. VALVE, MACHINE FITTED W/ISO MOUNTED CAB

1шт.

29

67699C91

PEDESTAL

SHAFT, CONTROL W/NUT

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

4шт.

29

3118087R91

PEDESTAL

SHAFT, CONTROL W/NUT, SCANDINAVIAN MARKET

1шт.

F19646

LOCK NUT,13/16"-20, Thin

13/16-20 HEX

1шт.

Выбрано товаров: 45
