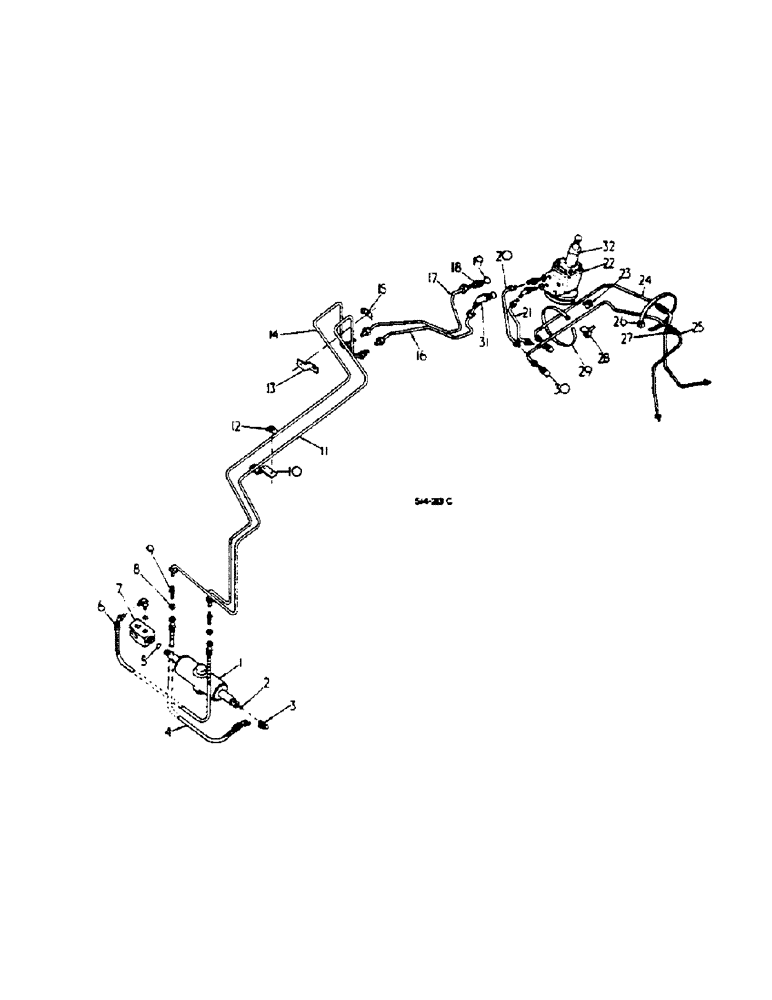

Запчасти Case IH 454 (10-13) - POWER STEERING, 454/8893 UP TO 100235, 2400/765 UP TO 100039 (07) - HYDRAULICS

1

CYLINDER ASSY, HYD P.S., FOR COMPONENTS SEE LIST OF PARTS UNDER DETAILS OF POWER STEERING CYLINDER

1шт.

2

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3/8 OD tube

2шт.

3

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 CZ 37 DEG HYD FLARED

2шт.

4

530132R1

HYDRAULIC HOSE,0.25" ID x 18.00", SAE 100R1

POWER STEERING CYL R.H.

1шт.

5

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD TUBE

1шт.

67488C2

PIN

POWER STEERING CYL

1шт.

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 SH DRIVE TYPE

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

1шт.

6

530131R1

HOSE

ASSY, POWER STEERING CYL L.H.

1шт.

7

549670R1

CLEANER

CLEVIS, CYL END 3/4 THREAD

1шт.

8

9403293

LOCK NUT,Blkhd, 9/16"-18

9/16-18 C-Z BULKHEAD UNION

2шт.

9

9403254

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

9/16-18 CZ 37 DEG HYD FLARED TUBE BULKHEAD

2шт.

115553

LOCK WASHER,Int Tooth, 5/8"

2шт.

10

529646R1

BRACKET

FRONT MANIFOLD SUPPORT

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

11

529621R1

TUBE

ASSY, POWER STEERING R.H FORWARD, ON ORDERS FOR 529621R1 FURNISH 1 TUBE 3116268R1 W/1 TUBE 66108C1 AND UNION 587639R1

1шт.

12

384891R11

CLAMP

ASSY, POWER STEERING TUBE

1шт.

179795

TILLAGE BLADE

1/4-20 X 3/4 HEX HD CAP

1шт.

103319

LOCK WASHER,1/4"

1шт.

13

529642R1

BRACKET

FRONT MANIFOLD

1шт.

109084

NUT,1/4"-20, G5

1шт.

103319

LOCK WASHER,1/4"

1шт.

14

529620R1

TUBE

ASSY, POWER STEERING L.H FORWARD, ON ORDERS FOR 529620R1 FURNISH 1 TUBE 3116267R1 W/66106C1

1шт.

15

529643R11

CLAMP

ASSY, POWER STEERING TUBE

1шт.

16

537425R1

TUBE

ASSY, POWER STEERING R.H. REAR, ON ORDERS FOR 537425R1 FURNISH 1 TUBE 3116268R1 W/1 TUBE 66109C1 AND 1 UNION 587639R1

1шт.

17

537424R1

TUBE

ASSY, POWER STEERING L.H. REAR, ON ORDERS FOR 537424R1 FURNISH 1 TUBE 3116267R1 W/1 TUBE 66107C1

1шт.

18

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

9/16-18 CZ 37 DEG HYD FLARED

2шт.

19

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD TUBE

4шт.

20

537427R1

TUBE

ASSY, POWER STEERING RETURN FORWARD, ON ORDERS FOR 537427R1 FURNISH 1 TUBE 3116270R1 W/1 TUBE 66104C1 AND 1 UNION 587639R1

1шт.

21

537426R1

TUBE

ASSY, POWER STEERING PRESSURE FORWARD, ON ORDERS FOR 537426R1 FURNISH 1 TUBE 3116269R1 W/1 TUBE 66105C1, 1 UNION 587639R1 AND 1 CHECK VALVE 57715C1

1шт.

22

VALVE ASSY, INTEGRAL POWER STEERING, FOR COMPONENTS SEE LIST OF PARTS UNDER DETAILS OF INTEGRAL HYDROSTATIC STEERING VALVE

1шт.

23

529637R2

GUIDE

MANIFOLD TUBE

1шт.

24

529616R1

TUBE

ASSY, POWER STEERING PRESSURE REAR, ON ORDERS FOR 529616R1 FURNISH 1 TUBE 3116271R1 W/1 TUBE 66105C1, 1 UNION 587639R1 AND 1 CHECK VALVE 57715C1

1шт.

25

529615R1

TUBE

ASSY, POWER STEERING RETURN REAR, ON ORDERS FOR 529615R1 FURNISH 1 TUBE 3116272R1 W/1 TUBE 66104C1 AND 1 UNION 587639R1

1шт.

26

306132C1

CABLE TIE,14.5" L

CABLE STRAP 14", REAR MANIFOLD TUBES

1шт.

27

536009R1

FUEL HOSE,0.31" ID x 2.50"

Spacer

2шт.

28

529638R1

BRACKET

REAR MANIFOLD

1шт.

29

306132C1

CABLE TIE,14.5" L

CABLE STRAP 14", REAR MANIFOLD TUBE

1шт.

30

9402942

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

ELBOW, 9/16-18 CZ 37 DEG HYD FLARED TUBE

2шт.

31

537423R1

ELBOW

ASSY, HYD TUBE

2шт.

32

67699C91

PEDESTAL

SHAFT, CONTROL W/NUT

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

4шт.

32

3118087R91

PEDESTAL

SHAFT, CONTROL W/NUT, SCANDINAVIAN MARKET

1шт.

F19646

LOCK NUT,13/16"-20, Thin

13/16-20 HEX

1шт.
