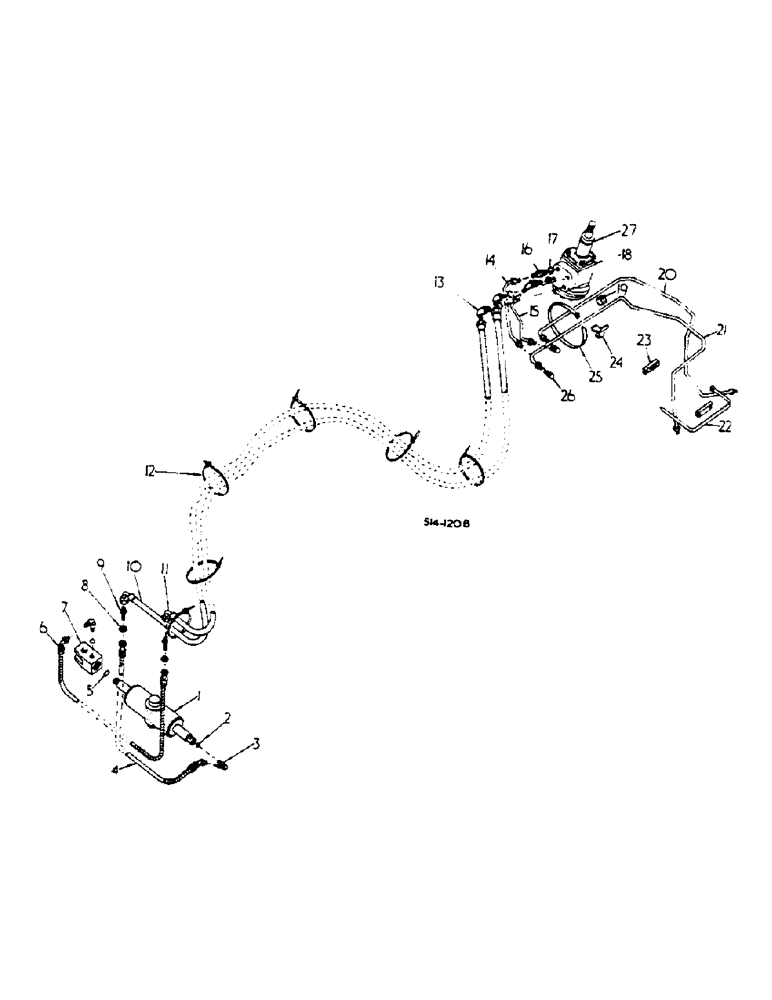

Запчасти Case IH 454 (10-11) - POWER STEERING, DANFOSS, UP TO 454/8892 (07) - HYDRAULICS

1

CYLINDER ASSY, HYD P.S, FOR COMPONENTS SEE LIST OF PARTS UNDER DETAILS OF HYD CYLINDER

1шт.

2

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3/8 OD tube

2шт.

3

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 CZ 37 DEG HYD FLARED

2шт.

4

530132R1

HYDRAULIC HOSE,0.25" ID x 18.00", SAE 100R1

POWER STEERING CYL RH

1шт.

5

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD TUBE

1шт.

5

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD TUBE

1шт.

67488C2

PIN

POWER STEERING CYL

1шт.

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 SH DRIVE TYPE

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

1шт.

6

530131R1

HOSE

ASSY, POWER STEERING CYL LH

1шт.

7

406762R1

CLEVIS

CYL END 7/8 THREAD

1шт.

7

549670R1

CLEANER

CLEVIS, CYL END 3/4 THREAD

1шт.

8

9403293

LOCK NUT,Blkhd, 9/16"-18

9/16-18 CZ BULKHEAD UNION

2шт.

155553

SPARE PART

WASHER

2шт.

9

9403254

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

9/16-18 CZ 37 DEG HYD FLARED TUBE BULKHEAD

2шт.

10

4317

TOY

HOSE ASSY, POWER STEERING RH REAR

1шт.

11

4317125R1

HOSE

ASSY, POWER STEERING LH REAR

1шт.

12

306132C1

CABLE TIE,14.5" L

CABLE STRAP 14"

6шт.

13

537423R1

ELBOW

ASSY, HYD TUBE

3шт.

14

537427R1

TUBE

ASSY, POWER STEERING RETURN FORWARD

1шт.

15

537426R1

TUBE

ASSY, POWER STEERING PRESSURE FORWARD

1шт.

16

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

9/16-18 CZ 37 DEG HYD FLARED

2шт.

17

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD TUBE

4шт.

18

VALVE ASSY, INTEGRAL POWER STEERING, FOR COMPONENTS SEE LIST OF PARTS UNDER DETAILS OF INTEGRAL HYDROSTATIC STEERING VALVE

1шт.

19

529637R1

GUIDE

MANIFOLD TUBE

1шт.

20

529616R1

TUBE

ASSY, POWER STEERING PRESSURE REAR

1шт.

21

529615R1

TUBE

ASSY, POWER STEERING RETURN REAR

1шт.

22

306132C1

CABLE TIE,14.5" L

CABLE STRAP 14", REAR MANIFOLD TUBES

1шт.

23

536009R1

FUEL HOSE,0.31" ID x 2.50"

Spacer

2шт.

24

529638R1

BRACKET

REAR MANIFOLD, FOR SYNCHROMESH TRACTORS

1шт.

24

529639R1

BRACKET

REAR MANIFOLD, FOR HYDROSTATIC TRACTORS

1шт.

25

306132C1

CABLE TIE,14.5" L

CABLE STRAP 14", REAR MANIFOLD TUBES

1шт.

26

9402942

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

9/16-18 CZ 37 DEG HYD FLARED

2шт.

27

67699C91

PEDESTAL

SHAFT, CONTROL W/NUT

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

4шт.

27

3118087R91

PEDESTAL

SHAFT, CONTROL W/NUT, SCANDINAVIAN MARKET

1шт.

F19646

LOCK NUT,13/16"-20, Thin

13/16-20 HEX

1шт.

4317123R1

MOULDING, EDGE SIDE PANEL BRACKET

2шт.

4317122R1

SPARE PART

MOULDING, EDGE RADIATOR BAFFLE

1шт.

4317126R1

MOULDING, EDGE BATTERY TRAY

1шт.

109084

NUT,1/4"-20, G5

1шт.

95-11028

WASHER,1/4"

9/32 X 5/8 X .051, BATTERY TRAY PIPE CLAMP

1шт.
