Запчасти Case IH 454 (12-02) - AIR CLEANER AND CONNECTIONS Power

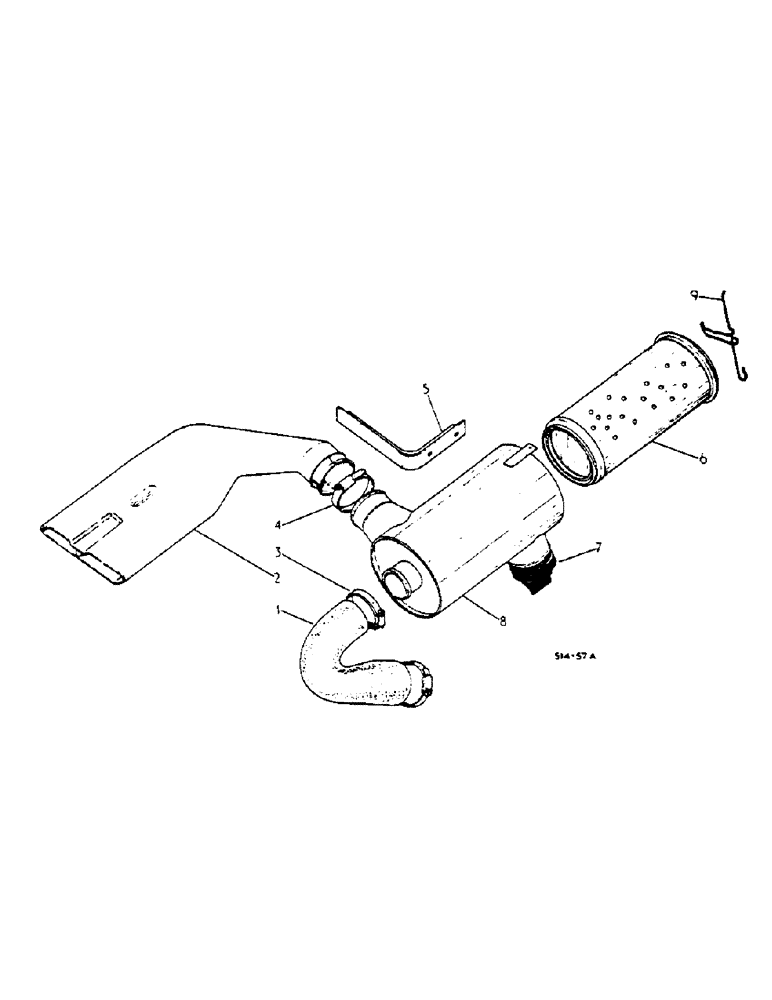

Схема запчастей Case IH 454 - (12-02) - AIR CLEANER AND CONNECTIONS Power
2
8
6
7
9
5
3
4
1

Артикул

Название

Примечание

Количество

1

402615R1

INTAKE AIR HOSE,2.50" ID, 2.80" ID

Air Cleaner Outlet

1шт.

2

529864R1

DUCT

AIR INLET

1шт.

3

397256R1

HOSE CLAMP,#44, 2.31/3.25 Type F Worm, W/liner

NO. 44 HOSE

2шт.

4

21423R1

CLAMP

3-5/16 HOSE

1шт.

4

539994R1

CLAMP

3-5/16 HOSE, OPTIONAL

1шт.

5

527270R1

SPARE PART AIR CLEANER MOUNTING

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

2шт.

6

529854R1

ELEMENT

ASSY

1шт.

7

529855R1

VALVE

DUST UNLOADER

1шт.

8

402612R91

AIR CLEANER

ASSY, UP TO 454/103079, UP TO 2400/100296

1шт.

8

3118835R91

AIR CLEANER

ASSY, 454/103080 UP, 2400/100297 UP, INCLUDES REF. 6 AND 7

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

2шт.

9

3118679R1

RETAINER

CLAMP, AIR CLEANER

1шт.

Выбрано товаров: 16
