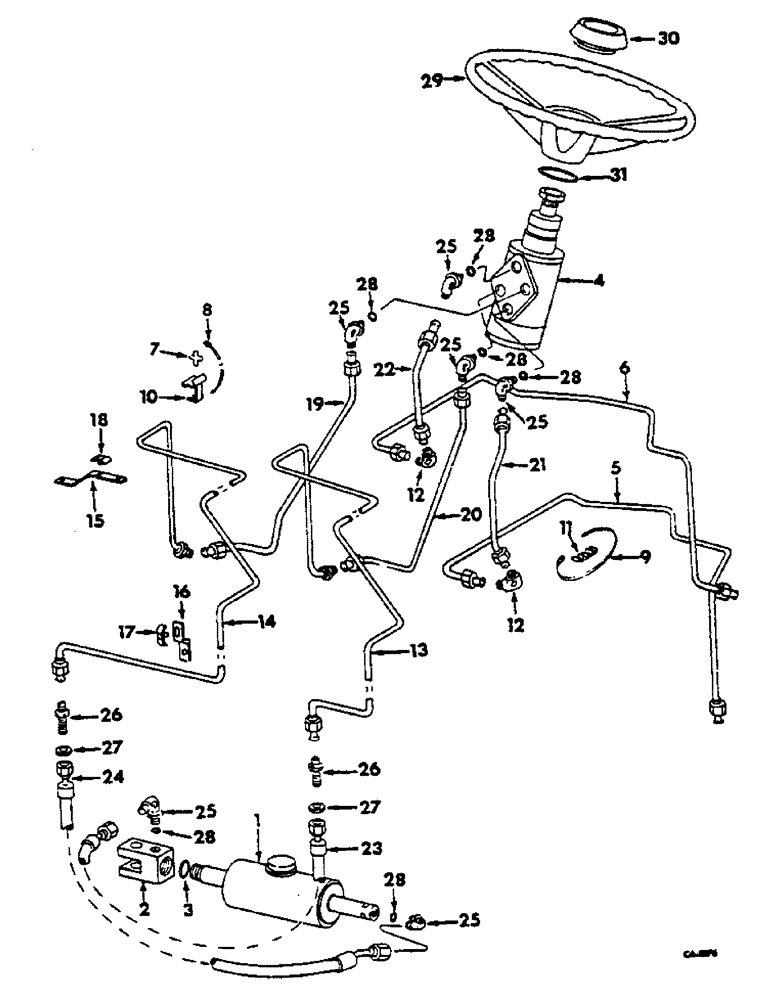

Запчасти Case IH 454 (10-08) - POWER STEERING, ROSS (07) - HYDRAULICS

1

CYLINDER ASSY, HYD PS, FOR COMPONENTS SEE LIST OF PARTS UNDER DETAILS OF HYDRAULIC CYLINDER

1шт.

2

406762R1

CLEVIS

CYL END

1шт.

3

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD TUBE

1шт.

522246R1

HEADED PIN,19.05mm OD x 63.5mm L

3/4 X 2-1/2 STD HD

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

1шт.

4

527326R91

LOCK VALVE

ASSY, INTEGRAL P/S, SEE FIGURE 10-40

1шт.

5

529615R1

TUBE

ASSY, POWER STEERING RETURN REAR

1шт.

6

529616R1

TUBE

ASSY, POWER STEERING PRESSURE REAR

1шт.

7

529637R1

GUIDE

MANIFOLD TUBE

1шт.

8

306132C1

CABLE TIE,14.5" L

CABLE STRAP 14", REAR MANIFOLD TUBES

1шт.

9

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP REAR MANIFOLD TUBES

1шт.

10

529638R1

BRACKET

REAR MANIFOLD, SYNCHROMESH DRIVE TRACTORS

1шт.

10

529639R1

BRACKET

REAR MANIFOLD, HYDROSTATIC DRIVE TRACTORS

1шт.

11

536009R1

FUEL HOSE,0.31" ID x 2.50"

Spacer

2шт.

12

9402942

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

9/16-18 C-Z 37 DEG HYD FLARED TUBE 90 DEG ELBOW

2шт.

13

529620R1

TUBE

ASSY, POWER STEERING LH FORWARD

1шт.

14

529621R1

TUBE

ASSY, POWER STEERING RH FORWARD

1шт.

15

529641R1

BRACKET

FRONT MANIFOLD SUPPORT

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

16

529642R1

BRACKET

FRONT MANIFOLD

1шт.

109084

NUT,1/4"-20, G5

1шт.

103319

LOCK WASHER,1/4"

1шт.

17

529643R11

CLAMP

ASSY, POWER STEERING TUBE

1шт.

18

384891R11

CLAMP

ASSY, POWER STEERING TUBE

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1/4-20 X 3/4 HEX-HD CAP

1шт.

103319

LOCK WASHER,1/4"

1шт.

19

529622R1

TUBE

ASSY, POWER STEERING RH REAR

1шт.

20

529623R1

SPARE PART ASSY, POWER STEERING LH REAR

1шт.

21

529624R1

TUBE

ASSY, POWER STEERING RETURN FWD

1шт.

22

529625R1

TUBE

ASSY, POWER STEERING PRESSURE FWD

1шт.

23

530131R1

HOSE

ASSY, POWER STEERING CYL LH

1шт.

24

530132R1

HYDRAULIC HOSE,0.25" ID x 18.00", SAE 100R1

POWER STEERING CYL RH

1шт.

25

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 C-Z 37 DEG HYD FLARED TUBE ADJ STR THD 90 DEG

6шт.

26

9403254

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

9/16-18 C-Z 37 DEG HYD FLARED TUBE BULKHEAD

2шт.

27

9403293

LOCK NUT,Blkhd, 9/16"-18

9/16-18 C-Z BULKHEAD UNION

2шт.

28

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3/8 OD tube

6шт.

29

385156R1

WHEEL (STEERING)

16" DIA

1шт.

29

385156R1GV

STEERING WHEEL

Value, Steering Wheel

1шт.

30

68837C1

CAP

STEERING WHEEL

1шт.

31

295204R1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

2-13/16 X 3 X 3/32

1шт.
