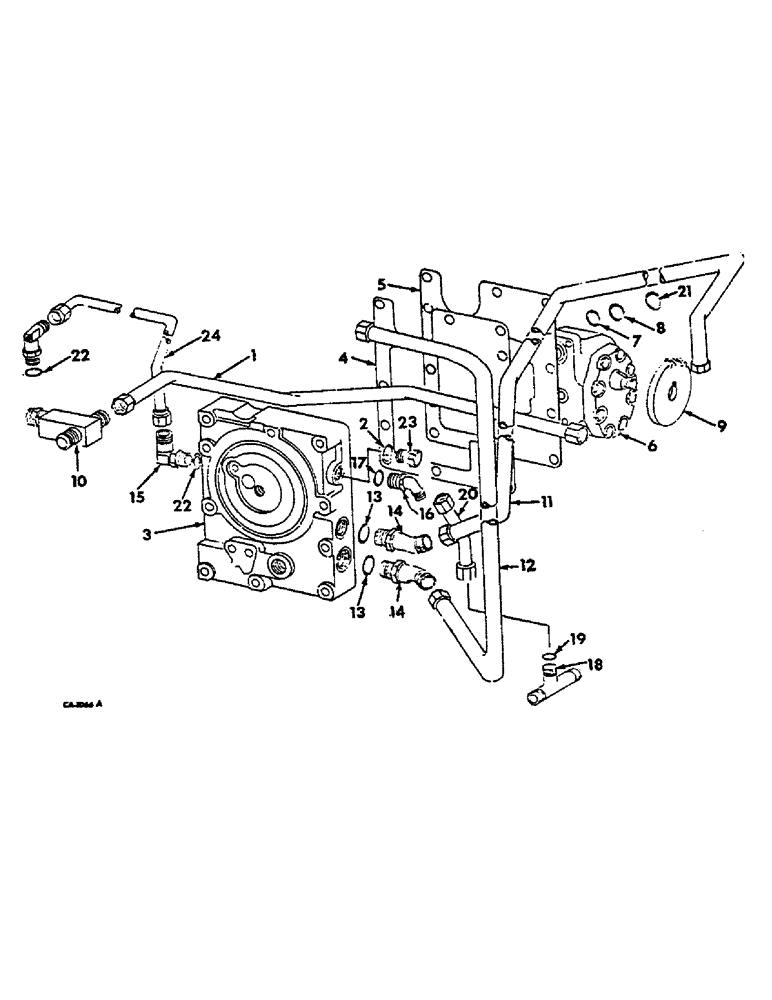

Запчасти Case IH 454 (10-05) - HYDPAULIC POWER SUPPLY AND MULTI CONTROL VALVE, UP TO 454/008692 (07) - HYDRAULICS

1

529618R1

TUBE

ASSY, LUB DUMP, SYNCHROMESH DRIVE TRACTORS

1шт.

2

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1/4 OD tube

1шт.

3

57714C93

VALVE

ASSY, MULTIPLE CONTROL, SEE FIGURE 10-33

1шт.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

9шт.

186283

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

3/8-16 X 3-1/2 HEX-HD CAP

1шт.

103321

LOCK WASHER,3/8"

10шт.

4

401736R2

GASKET

MULTIPLE CONTROL VALVE HV

1шт.

5

401737R2

GASKET

MULTIPLE CONTROL VALVE, LIGHT

1шт.

6

406763R91

PUMP

ASSY, HYD GEAR, OPTIONAL W/406827R91

1шт.

6

84573150R

REMAN-HYD PUMP

454, 2400, Both INTERNATIONAL SERIES-A TRACTOR (EUROPE), ASSY, HYD GEAR (1/71-12/73), Reman for New PN 406763R91

1шт.

6

84573150C

CORE-HYDRAULIC PUMP

Return Number

1шт.

6

406827R91

PUMP

ASSY, HYD GEAR, OPTIONAL W/406763R91, SEE END OF LIST FOR COMPONENTS

1шт.

6

84573150R

REMAN-HYD PUMP

454, 2400, Both INTERNATIONAL SERIES-A TRACTOR (EUROPE), ASSY, HYD GEAR (1/71-12/73), Reman for New PN 406827R91

1шт.

6

84573150C

CORE-HYDRAULIC PUMP

Return Number

1шт.

829

SPARE PART SCREW, 5/16-18 X 2-3/4 HEX-HD CAP

2шт.

186270

BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 5

2шт.

382331R1

SEALING WASHER,8.33mm ID x 12.7mm OD x 0.79mm Thk

PUMP MOUNTING BOLT

4шт.

7

21433R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

11/16 X 7/8 X 3/32, PUMP PRESSURE PORT

1шт.

8

372821R1

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

1-1/16 X 1-1/4 X 3/32, PUMP SUCTION PORT

1шт.

9

406764R1

PINION

GEAR, HYD PUMP DRIVEN, 27T

1шт.

9

406793R1

GEAR

HYD PUMP DRIVEN, 19T, W/623 RPM IPTO

1шт.

19258R1

LOCK NUT,1/2"-20, GB

1/2-20 ESNA STOP

1шт.

10

527477R92

VALVE

ASSY, LUB REGULATOR, SYNCHROMESH DRIVE TRACTORS

1шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD TUBE

1шт.

9410060

WASHER,Blkhd, 3/4"-16

NUT, 3/4-16 ZND BULKHEAD UNION LOCK

1шт.

11

399997R1

TUBE

ASSY, DRAFT CONTROL RETURN

1шт.

12

530133R1

TUBE

ASSY, AUXILIARY VALVE PRESSURE

1шт.

13

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD TUBE

2шт.

14

9411106

ELBOW

7/8-14 C-Z 37 DEG HYD FLARED TUBE ADJ STR THD 45 DEG

2шт.

15

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16 C-Z 37 DEG HYD FLARED TUBE ADJ STR THR 90 DEG

1шт.

16

9411102

ELBOW,45 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

7/16-20 C-Z 37 DEG HYD FLARED TUBE, TRACTORS W/IPTO

1шт.

17

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1/4 OD tube, Tractors with IPTO

1шт.

18

9411115

TEE,7/16"-20, 37 Degree x 7/8"-14, O-Ring Br

7/16-20 C-Z 37 DEG HYD FLARED TUBE ADJ STR THD 90 DEG, TRACTORS W/IPTO

1шт.

9403369

CAP,37 Degree, 7/16"-20

7/16-20 C-Z 37 DEG HYD FLARED TUBE

1шт.

19

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1/4 OD tube, Tractors with IPTO

1шт.

20

401738R1

TUBE

ASSY, IPTO PRESSURE, TRACTORS W/IPTO

1шт.

21

707253R1

O-RING,-222, 70 Duro, 1.484" ID x .139" Thk

1-1/2 X 1-3/4 X 1/8 INLET PORT

1шт.

22

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD TUBE

2шт.

23

9410356

PLUG

7/16-20 STR THD O-RING BOSS

1шт.

24

529617R3

TUBE

MULTIPLE CONTROL VALVE DUMP, HYDROSTATIC DRIVE TRACTORS

1шт.

25

534773R2

ELBOW

MCV DUMP ORIFICE, HYDROSTATIC DRIVE TRACTOR

1шт.

69354C1

SEAL

HYD. PUMP, USED W/PUMP 67248C91 OR 406827R91

1шт.

69352C1

SEAL

HYD. PUMP, USED W/PUMP 66513C91 OR 406763R91

1шт.

69351C1

GLUE

ADHESIVE, TUBE, SYNCHROMESH DRIVE TRACTORS

1шт.

534261R91

SEAL KIT

PACKAGE SERVICE, HYD PUMP O-RING & GASKET, CONSISTS OF: (1) O-RING 22276R1, (1) O-RING 372821R1, (1) O-RING 350667R1

1шт.

65000C2

GASKET

MULTIPLE CONTROL VALVE BODY

1шт.

405458R2

LARGE PLATE

PLATE, LARGE MULTIPLE CONTROL VALVE

1шт.

387926R2

RING

RECTANGULAR

1шт.

406763R1

PUMP ASSY, HYD GEAR, CONSISTS OF KEY, KIT AND O-RINGS

1шт.

124546

WOODRUFF KEY,#6, 5/32" x 5/8", HT

Pump shaft

1шт.

534262R91

PACKAGE

KIT, SEAL

1шт.

372821R1

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

SUCTION PORT

1шт.

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

PRESSURE PORT

1шт.

406827R91

PUMP

ASSY, HYD GEAR, CONSISTS OF BALL, KEY, SEAL AND SPRING

1шт.

84573150R

REMAN-HYD PUMP

454, 2400, Both INTERNATIONAL SERIES-A TRACTOR (EUROPE), ASSY, HYD GEAR (1/71-12/73), Reman for New PN 406827R91

1шт.

84573150C

CORE-HYDRAULIC PUMP

Return Number

1шт.

16007R1

BALL

7/32 DIA

1шт.

124546

WOODRUFF KEY,#6, 5/32" x 5/8", HT

Pump drive gear

1шт.

373244R91

SEAL

PUMP SHAFT

1шт.

371523R1

SPRING

BALL CHECK

1шт.

56541

HUB

VALVE, CHECK, UP TO 454/100235, UP TO 2400/100039

1шт.

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Used with multiple control valve

1шт.
