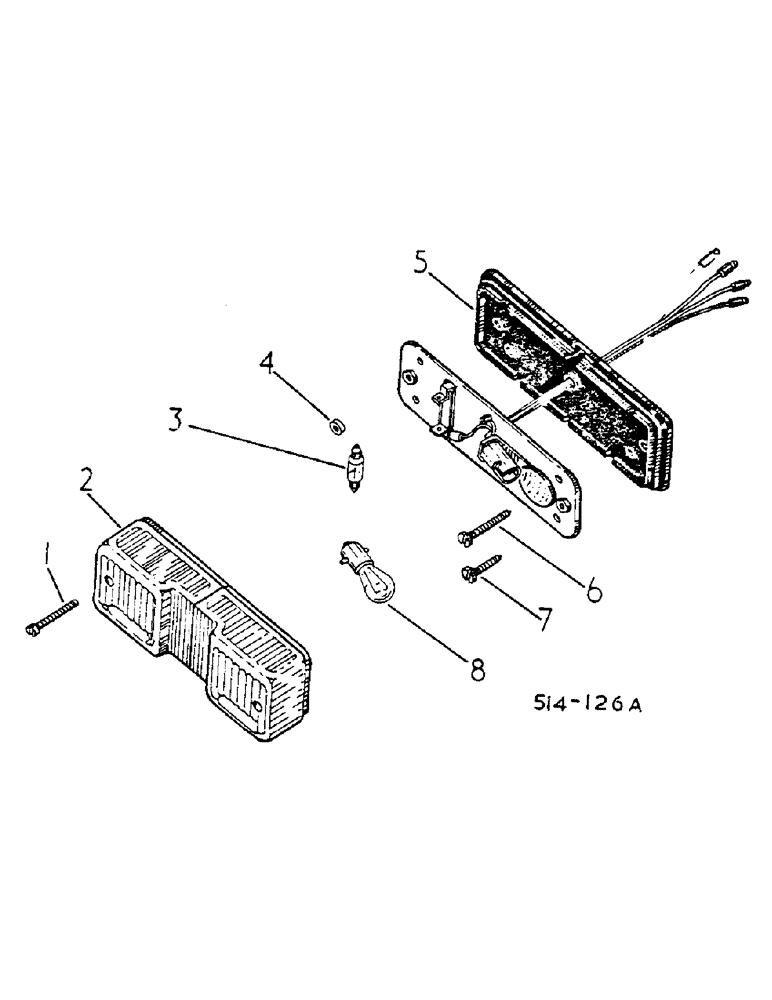

Запчасти Case IH 454 (08-54) - FENDER WIRING AND SIDE/FLASHER LIGHTS (06) - ELECTRICAL

3112877R93

INDICATOR LIGHT

SIDE AND FLASHER

2шт.

263-5658

SELF-TAP SCREW,Slotted Pan Hd, #10 x 1/2"

NO. 10-16 X 1/2 SELF-TAP

2шт.

1

3112785R1

SCREW

4BA X 1-1/2 ZINC PLTD

4шт.

2

3113395R1

LENS

CLEAR/AMBER

2шт.

3

3118024R1

LAMP

12V, 5W, FESTOON

1шт.

3

3113360R1

SPARE PART

LAMP, 14V, 7W BULB

1шт.

4

3112796R1

ARM

RING, RETAINING

4шт.

5

CUSHION, BLACK RUBBER, VERTICAL

2шт.

6

125932

SELF-TAP SCREW,Sl Pan Hd, #8 x 1/2"

4шт.

7

24247R1

SCREW

NO. 10-16 X 7/8 PAN HD STD

4шт.

8

3025210R91

BULB

LAMP, 12V, 21W SCC

2шт.

3113658R91

HARNESS

FENDER L.H.

1шт.

3113659R91

HARNESS

FENDER R.H.

1шт.

708114R1

SPARE PART CABLE

2шт.

530043R1

GROMMET

FENDER HARNESS

2шт.

705897R1

CONNECTOR, ELEC

CONNECTOR 1 WAY R.H. FENDER

1шт.

705897R1

CONNECTOR, ELEC

CONNECTOR 1 WAY R.H. FENDER

1шт.
