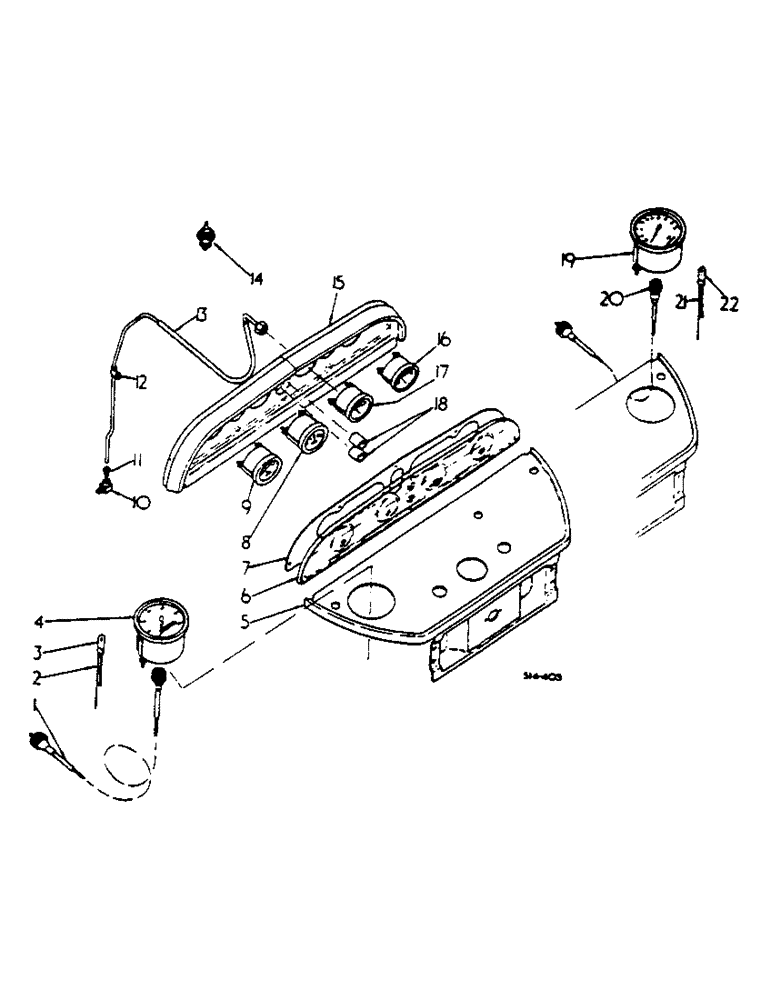

Запчасти Case IH 454 (11-02) - INSTRUMENT PANEL AND GAUGES Instruments

1

529235R1

FLEXIBLE CABLE

CABLE ASSY, TRACTORMETER, SYNCHROMESH DRIVE TRACTORS

1шт.

1

CABLE ASSY, TACHOMETER DRIVE, HYDROSTATIC DRIVE TRACTORS

1шт.

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP Tachometer

1шт.

2

3123661R1

HOLDER

TRACTORMETER LAMP, SYNCHROMESH DRIVE TRACTORS

1шт.

3

529233R1

LAMP

12V, 3W CAPLESS BULB

1шт.

4

529221R91

DECAL

METER, TRACTOR, 15 MPH, TRACTORS W/SYNCHROMESH DRIVE AND 12/53T BEVEL GEAR SET

1шт.

4

529222R91

TRACTORMETER

24 KPH, TRACTORS, EXPORT, W/SYNCHROMESH DRIVE AND 12/53T BEVEL GEAR SET

1шт.

4

529225R91

TRACTORMETER

20 MPH, TRACTORS, EXPORT, W/SYNCHROMESH DRIVE AND 14/51T BEVEL GEAR SET

1шт.

4

529226R91

TRACTORMETER

32 KPH, TRACTORS, EXPORT, W/SYNCHROMESH DRIVE AND 14/51T BEVEL GEAR SET

1шт.

4

532831R91

SPARE PART

METER, TRACTOR, 20 MPH, TRACTORS, EXPORT W/SYNCHROMESH DRIVE AND 12/53T BEVEL GEAR SET

1шт.

4

532832R91

METER, TRACTOR, 32 KPH, TRACTORS, EXPORT, W/SYNCHROMESH DRIVE AND 12/53T BEVEL GEAR SET

1шт.

4

532833R91

METER, TRACTOR, 15 MPH, TRACTORS W/SYNCHROMESH DRIVE AND 14/51T BEVEL GEAR SET

1шт.

4

532834R91

METER, TRACTOR, 24 KPH, TRACTORS, EXPORT, W/SYNCHROMESH DRIVE AND 14/51T BEVEL GEAR SET, FOR THE ABOVE TRACTORMETERS FURNISH TACHOMETER 528364R91 W/THE APPROPRIATE PRODUCT-GRAPHIC

1шт.

4

528364R91

NO LONGER SERVICED

TACHOMETER

1шт.

537812R1

PRODUCT GRAPHIC

SPEED CHART KPH, FOR TRACTORS W/BB TRANSMISSION, SYNCHROMESH TRACTORS EXPORT

1шт.

537813R1

SPARE PART SPEED CHART MPH, FOR TRACTORS W/BB TRANSMISSION, SYNCHROMESH TRACTORS

1шт.

537814R1

PRODUCT GRAPHIC

SPEED CHART KPH, FOR TRACTORS W/AS TRANSMISSION, SYNCHROMESH TRACTORS EXPORT

1шт.

537815R1

PRODUCT GRAPHIC

SPEED CHART MPH, FOR TRACTORS W/AS TRANSMISSION, SYNCHROMESH TRACTORS

1шт.

537816R1

DECAL

PRODUCT-GRAPHIC, SPEED CHART KPH, FOR TRACTORS W/AR TRANSMISSION, SYNCHROMESH TRACTORS EXPORT

1шт.

537817R1

DECAL

PRODUCT-GRAPHIC, SPEED CHART MPH, FOR TRACTORS W/AR TRANSMISSION, SYNCHROMESH TRACTORS

1шт.

537818R1

DECAL

PRODUCT-GRAPHIC, SPEED CHART KPH, FOR TRACTORS W/BS TRANSMISSION, SYNCHROMESH TRACTORS EXPORT

1шт.

537819R1

PRODUCT GRAPHIC

SPEED CHART MPH, FOR TRACTORS W/BS TRANSMISSION, SYNCHROMESH TRACTORS

1шт.

5

533261R5

PANEL

ASSY, INSTRUMENT, SYNCHROMESH DRIVE TRACTORS

1шт.

5

3112372R5

PANEL

ASSY, INSTRUMENT, SYNCHROMESH DRIVE TRACTORS

1шт.

5

3112372R5

PANEL

ASSY, INSTRUMENT, SYNCHROMESH DRIVE TRACTORS

1шт.

5

533264R6

PANEL

ASSY, INSTRUMENT, HYDROSTATIC DRIVE TRACTORS, HAND SPEED CONTROL

1шт.

5

3112374R5

PANEL

ASSY, INSTRUMENT, HYDROSTATIC DRIVE TRACTORS, AUSTRIAN MARKET, HAND SPEED CONTROL

1шт.

538484R1

SPARE PART ASSY, STEADY REST, HAND SPEED CONTROL

1шт.

157523

SCREW

5/16-18 X 3/4 C2 MACH

2шт.

5

538697R4

PANEL

ASSY, INSTRUMENT, HYDROSTATIC DRIVE TRACTORS, FOOT SPEED CONTROL

1шт.

5

533699R4

PANEL ASSY, INSTRUMENT, HYDROSTATIC DRIVE TRACTORS, AUSTRIAN MARKET, FOOT SPEED CONTROL

1шт.

109084

NUT,1/4"-20, G5

2шт.

180014

SCREW,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

1/4-20 X 3/8 HEX HD CAP

2шт.

167214

CHAIN

SCREW, 12-24 X 1/2 C-Z CR REC PAN HD TAP

4шт.

6

529359R11

INSTRUMENT PANEL

ASSY, FACE

1шт.

436665

SCREW

6-32 X 1/2 C-Z SLT PAN HD

8шт.

3113468R1

WASHER

FIBER MACH

3шт.

7

3113469R1

GASKET

1шт.

8

528211R1

AMMETER

ASSY

1шт.

9

528210R1

ELECTRICAL GAUGE

ASSY, FUEL

1шт.

10

21267D

FITTING

SPARE PART ELBOW, 3/8-24 HI-DUTY TUBE FITTING, OIL PRESSURE PIPE TO ENGINE

1шт.

11

25038H

NUT, 3/8-24 HI-DUTY TUBE FITTING

1шт.

12

533275R1

CLAMP

OIL PRESSURE PIPE

1шт.

533276R1

SPARE PART

1шт.

179815

BOLT,Hex, 5/16" - 18 x 11/16", Gr 5

1шт.

13

533273R1

PIPE

OIL PRESSURE

1шт.

14

3106585R1

TRANSMITTER

GAUGE, TEMPERATURE SENDER

1шт.

536650R1

GASKET

TEMPERATURE SENDER GAUGE, UP TO 454/7292, UP TO 2400/0687

1шт.

14

3073787R91

TRANSMITTER

TEMPERATURE SENDER, 454/7293 UP, 2400/0688 UP

1шт.

15

529357R2

HOUSING

INSTRUMENT PANEL GAUGE

1шт.

16

528213R1

ELECTRICAL GAUGE

ASSY, WATER TEMPERATURE

1шт.

17

528212R1

ELECTRICAL GAUGE

ASSY, OIL

1шт.

3115042R1

WASHER

OIL GAUGE SEALING

1шт.

18

530589R1

TUBE

WARNING LIGHT

2шт.

19

529765R92

SPEEDOMETER, 15 MPH

1шт.

19

529766R92

HEAD

SPEEDOMETER, 20 MPH

1шт.

19

529769R92

KM SPEEDOMETER

24 KPH

1шт.

19

529770R92

METER

32 KPH, HYDROSTATIC DRIVE TRACTORS

1шт.

20

529235R1

FLEXIBLE CABLE

CABLE ASSY, FLEXIBLE DRIVE, HYDROSTATIC DRIVE TRACTORS

1шт.

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP Tachometer

1шт.

21

3123661R1

HOLDER

SPEEDOMETER LAMP, HYDROSTATIC DRIVE TRACTORS

1шт.

22

529233R1

LAMP

12V, 3W, CAPLESS BULB

1шт.

3113429R1

PLUG

BLANKING, OPTIONAL W/191105

1шт.

191105

PLUG, 1 C-Z BUTTON, OPTIONAL W/3113429R1

1шт.

142070

PLUG,13/32"

BUTTON WORN, OPTIONAL W/3113430R1

1шт.

3113430R1

PLUG

BLANKING, OPTIONAL W/142070

1шт.

432281

HOLE PLUG BUTTON,29/32"

CIGARETTE LIGHTER HOLE BUTTON, OPTIONAL W/528240R1 AND 178023

1шт.

528240R1

NO LONGER SERVICED

PLUG, CIGARETTE LIGHTER HOLE BUTTON, OPTIONAL W/432281 AND 178023

1шт.

178023

FILTER SCREEN,29/32"

CIGARETTE LIGHTER HOLE BUTTON, OPTIONAL W/432281 AND 528240R1

1шт.

538239R1

PLUG

DIRECTION INDICATOR LIGHT HOLE

2шт.

538240R1

PLUG

DIRECTION INDICATOR SWITCH HOLE

1шт.
