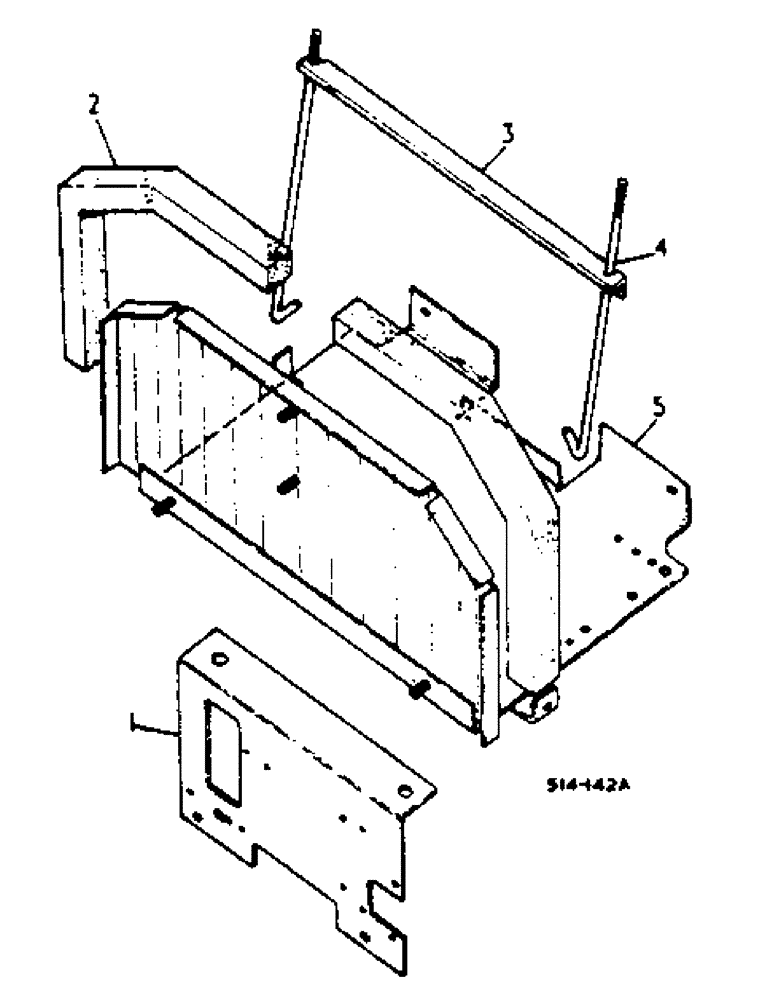

Запчасти Case IH 454 (08-51) - BATTERY TRAY, MACHINES NOT FITTED W/ISO MOUNTED CAB (06) - ELECTRICAL

1

3113042R1

SUPPORT

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

2шт.

109084

NUT,1/4"-20, G5

1шт.

103319

LOCK WASHER,1/4"

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

1шт.

2

394788R1

GASKET

GASKET, BATTERY HEAT SHIELD

2шт.

3

3121178R1

BRACKET

ANGLE, BATTERY HOLD DOWN

1шт.

4

527605R1

ROD

BATTERY HOLD DOWN, SYNRHROMESH DRIVE TRACTORS

2шт.

7500032

BUSHING

5/16-18 C-Z

2шт.

120393

BEARING WASHER,5/16", SAE

11/32 X 11/16 X .051 C-Z

2шт.

5

538052R5

TRAY

ASSY, BATTERY

1шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

2шт.

20893R1

WASHER

11 1 X .120 C-Z

2шт.

3113841R1

MOLDING

EDGE

1шт.

306132C1

CABLE TIE,14.5" L

CABLE STRAP LOCK 14"

2шт.
