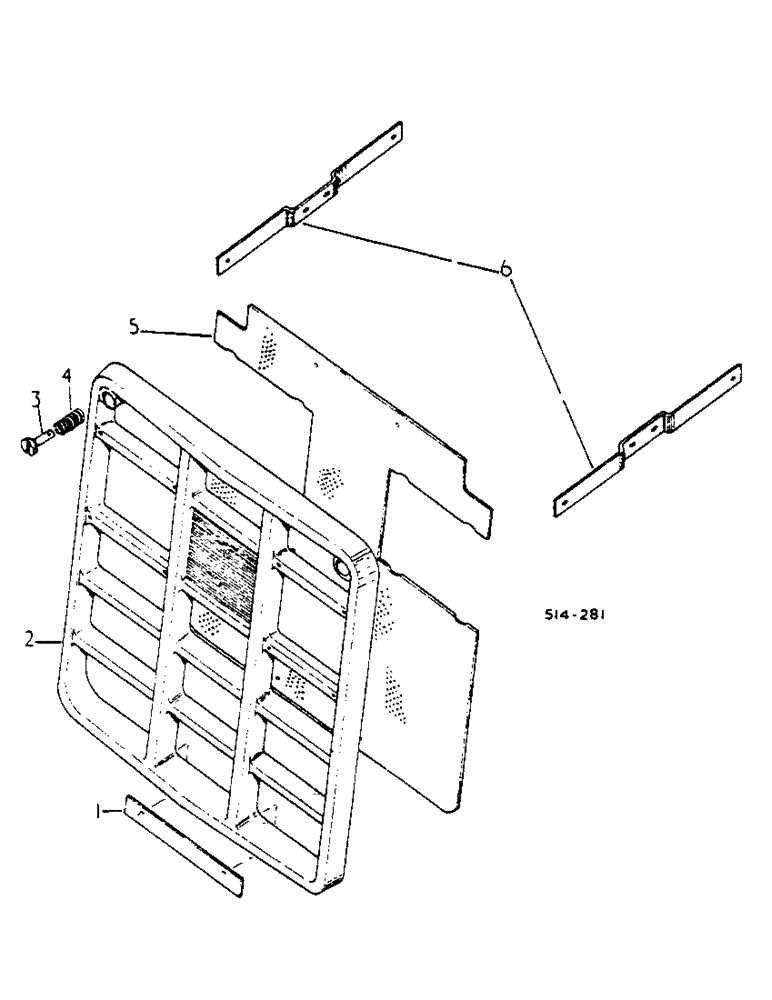

Запчасти Case IH 454 (06-08) - RADIATOR GRILLE Cooling

1

532192R1

BRACKET

GRILLE RETAINING

1шт.

537163R1

BAR

GRILLE RETAINING

1шт.

26052R1

PIN,3/16" x 1 1/2", Coiled

2шт.

436570

SCREW,Slotted Pan Hd, #10-24 x 1/2"

10-24 X 1/2 SLT-PAN-HD, MACH

2шт.

23505R1

WASHER

9/32 X 5/8 X 16 GA CZ, USED W/GRILLE 537496R1

2шт.

22971R1

PIN

5/32 X 1-1/4 HV COILED SPRING

2шт.

23505R1

WASHER

9/32 X 5/8 X 16 GA CZ, USED W/GRILLE 528153R2

2шт.

2

537496R1

GRILLE

RADIATOR, PLASTIC

1шт.

401499R1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 1/2"

10-24 X 1/2 HEX WASHER HDTAP

4шт.

2

528153R2

GRILLE

RADIATOR

1шт.

401499R1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 1/2"

10-24 X 1/2 HEX WASHER HD TAP

6шт.

3

3113470R1

PIN

LATCH ASSY, GRILLE, USED W/GRILLE 537496R1

2шт.

3

532178R1

LATCH

ASSY, GRILLE, USED W/GRILLE 528153R2

2шт.

4

532180R1

SPRING

GRILLE LATCH

2шт.

5

528155R3

SCREEN

GRILLE

1шт.

Q397

WASHER

11/32 X 3/4 X 16 GA

1шт.

6

402199R1

SUPPORT

SPARE PART RADIATOR AND GRILLE HOUSING

2шт.

179789

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

2шт.

103319

LOCK WASHER,1/4"

6шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Machine not fitted w/ISO mounted cab

2шт.
