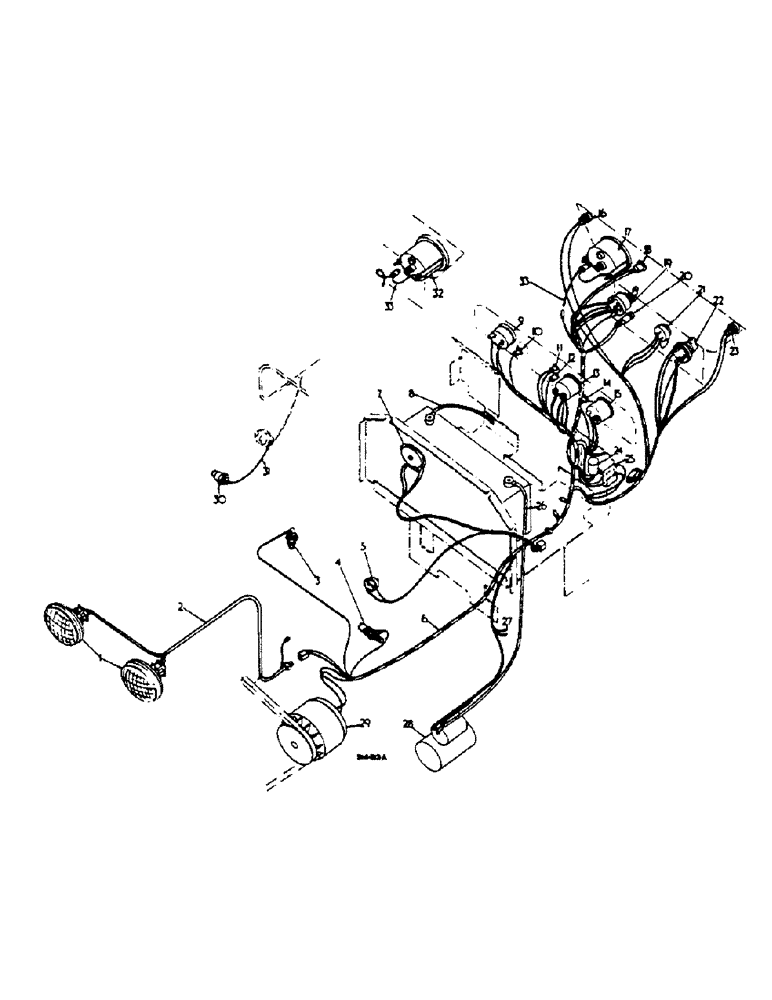

Запчасти Case IH 454 (08-15) - MAIN PANEL HARNESS AND CONNECTIONS, W/ALTERNATOR, UP TO 454/101983, UP TO 2400/100212 (06) - ELECTRICAL

1

LIGHT, HEAD R.H. AND L.H., SEE HEADLIGHT

1шт.

2

3113095R1

HARNESS

ASSY, HEADLIGHT

1шт.

3

TRANSMITTER, HEAT INDICATOR, SEE INSTRUMENT PANEL AND GAUGES

1шт.

4

GLOW PLUG, SEE THERMOSTART

1шт.

5

SWITCH, BRAKE LIGHT, SEE BRAKE LIGHT SWITCH AND BRACKET, DELUXE

1шт.

6

3113701R91

HARNESS

ASSY, MAIN PANEL, 454/100570 UP, 2400/100082 UP

1шт.

6

3113330R91

HARNESS

ASSY, MAIN PANEL, UP TO 2400/100081, UP TO 454/100569

1шт.

7

HORN, SEE HORN

1шт.

8

3113066R1

CABLE

BATTERY NEGATIVE TO EARTH, SYNCHROMESH DRIVE TRACTORS

1шт.

8

52

SET

CABLE, BATTERY NEGATIVE TO EARTH, HEAVY DUTY BATTERY ATTACHMENT, HYDROSTATIC DRIVE TRACTORS

1шт.

9

INDICATOR, HEAT, SEE INSTRUMENT PANEL AND GAUGES

1шт.

10

3117434R1

HOLDER

LAMP

1шт.

3117437R1

RIVET

1шт.

705757R91

LAMP

PANEL, 12V, 5W MCC

1шт.

751467R1

BULB

LAMP, PANEL, 12V, 6W MCC, OPTIONAL

1шт.

11

3117436R1

HOLDER

LAMP

1шт.

3117437R1

RIVET

1шт.

3041099R1

LAMP

TRANS. OIL PRESSURE WARNING, 12V, 2.2 MES

1шт.

12

3117435R1

HOLDER

LAMP

1шт.

3117437R1

RIVET

1шт.

3041099R1

LAMP

PARK BRAKE WARNING, 12V, 2.2 MES

1шт.

13

AMMETER, SEE INSTRUMENT PANEL AND GAUGES

1шт.

14

3117434R1

HOLDER

LAMP

1шт.

3117437R1

RIVET

1шт.

705757R91

LAMP

PANEL, 12V, 5W MCC

1шт.

751467R1

BULB

LAMP, PANEL, 12V, 6W MCC

1шт.

15

GAUGE, FUEL, SEE INSTRUMENT PANEL AND GAUGES

1шт.

16

LIGHT, TRAILER WARNING, SEE FLASHER INSTRUMENTS

1шт.

17

TACHOMETER, SEE INSTRUMENT PANEL AND GAUGES

1шт.

18

894348H1

WARNING LIGHT

ALTERNATOR

1шт.

894350H1

BULB

LAMP, 12V, 2.2W MCC

1шт.

3119789R1

BULB

LAMP, 12V, 2W, 8.8 MM TUBULAR, OPTIONAL

1шт.

3074997R91

CAP

SCREWED W/LENS

1шт.

19

SWITCH, KEY, SEE ENGINE CONTROLS AND SWITCHES

1шт.

20

BUTTON, HORN, SEE ENGINE CONTROLS AND SWITCHES

1шт.

21

SWITCH, FLASHER, SEE FLASHER INSTRUMENTS

1шт.

22

SWITCH, LIGHT, SEE ENGINE CONTROL AND SWITCHES

1шт.

23

LIGHT, TRACTOR WARNING, SEE FLASHER INSTRUMENTS

1шт.

24

FLASHER, UNIT, SEE FLASHER INSTRUMENTS

1шт.

25

HOUSING, FUSE, SEE ENGINE CONTROLS AND SWITCHES

1шт.

26

528301R1

CABLE ASSY.

BATTERY TO STARTER B TERM

1шт.

27

CONNECTOR, WINDSCREEN WIPER, SEE SAFETY CAB

2шт.

28

STARTER, SEE STARTER MOTOR

1шт.

29

ALTERNATOR, SEE ALTERNATOR AND CONNECTIONS

1шт.

30

NOT APPLICABLE

1шт.

31

NOT APPLICABLE

1шт.

32

NOT APPLICABLE

1шт.

33

HOLDER, SPEEDOMETER AND TACHO LAMP

2шт.

LAMP, 12V, 3W, CAPLESS, SEE INSTRUMENT PANEL AND GAUGES

2шт.

535305R1

CLIP

PANEL HARNESS

2шт.

537025R1

CLIP

PANEL HARNESS

1шт.

289862C62

CLIP, MAIN HARNESS, ON TRANS HSG

1шт.

3067819R1

SPARE PART HEADLIGHT HARNESS

1шт.

535303R1

CABLE CLIP

EDGE

1шт.

537024R1

CLIP

SAFETY START CABLE, ON BATTERY TRAY SUPPORT

1шт.

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP Solenoid

3шт.

366460R1

CABLE CLIP

FUEL SENDER

1шт.

537024R1

CLIP

BRAKE LIGHT CABLE, ON BATTERY TRAY SUPPORTS

1шт.

3116240R1

CLIP

BATTERY CABLE

1шт.

450643

SCREW,Hex Hd, #8-32 x 3/8"

NO.8 X 3/8

1шт.

225-10108

NUT,#8-32

1шт.

492-11008

LOCK WASHER,#8

1шт.

3112817R1

CLAMP

HORN CABLE

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

109084

NUT,1/4"-20, G5

1шт.

103319

LOCK WASHER,1/4"

1шт.

705896R1

CONNECTOR, ELEC

CONNECTOR 2 WAY PANEL HARNESS

1шт.

705897R1

CONNECTOR, ELEC

CONNECTOR 1 WAY PANEL HARNESS

2шт.

708115R1

PLATE ASSY.

CLIP, TEMP SENDING UNIT CABLE

1шт.
