Запчасти Case IH 454 (13-62) - HEATER PIPES AND WIRING, SEKURA ROOF (05) - SUPERSTRUCTURE

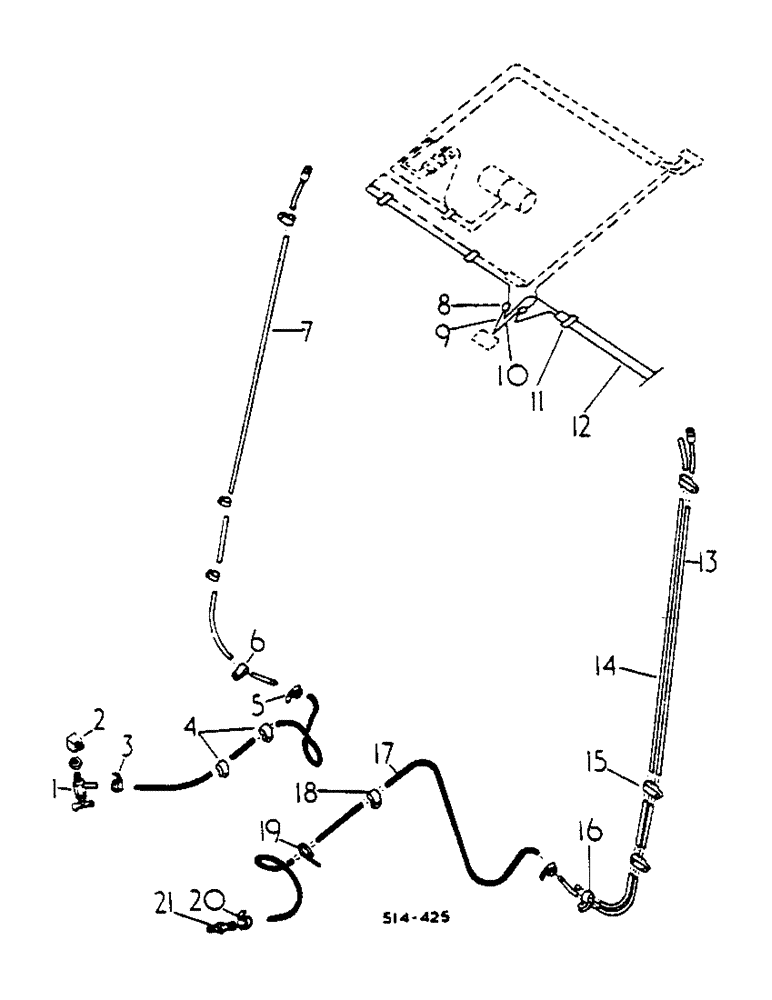

Схема запчастей Case IH 454 - (13-62) - HEATER PIPES AND WIRING, SEKURA ROOF (05) - SUPERSTRUCTURE
20
8
13
1
7
19
17
14
10
3
15
11
18
12
5
6
2
4
16
9
21

Артикул

Название

Примечание

Количество

1

898799H1

VALVE

WATER SHUT OFF TAP

1шт.

2

3121599R1

ADAPTER

SPARE PART THERMOSTAT HSG TO WATER TAP

1шт.

3

3074617R91

CLAMP

HOSE

2шт.

4

168396H1

CLAMP,13/16", 3/8" Bolt

2шт.

5

3025348R1

FLEXIBLE HOSE

WATER TAP TO WINDSCREEN PIPE

1шт.

6

3121728R1

CLAMP

4шт.

27004R1

SCREW,Cross Pan Hd, #10 x 1/2"

10-24 X 1/2 PAN HD CR TAPPING

4шт.

7

3121596R1

TUBE

HEATER

1шт.

8

705896R1

CONNECTOR, ELEC

CONNECTOR 2 WAY

2шт.

9

3121591R1

CABLE ASSY.

SPARE PART BLOWER CONNECTOR TO WIPER

1шт.

10

3121590R1

CABLE

SPARE PART WIRE, FLYING LEAD BLOWER CONN TO WIPER

1шт.

11

537024R1

CLIP

CABLE EDGE

1шт.

12

3121601R1

CABLE ASSY, WINDSCREEN WIPER

1шт.

13

3121596R1

TUBE

HEATER

1шт.

14

3121729R1

CONDUIT

WIPER CABLE

1шт.

15

3121727R1

CLAMP

3шт.

27004R1

SCREW,Cross Pan Hd, #10 x 1/2"

10-24 X 1/2 PAN HD TAPPING

3шт.

16

3121726R1

CLAMP

1шт.

27004R1

SCREW,Cross Pan Hd, #10 x 1/2"

10-24 X 1/2 PAN HD TAPPING

1шт.

17

3025408R1

HOSE

WINDSCREEN PIPE TO WATER PUMP

1шт.

18

168396H1

CLAMP,13/16", 3/8" Bolt

1шт.

19

3120178R1

STRAP

CABLE LOCK

1шт.

20

3074617R91

CLAMP

HOSE

2шт.

21

3025188R1

ADAPTER

WATER PUMP

1шт.

Выбрано товаров: 24
