Запчасти Case IH 454 (13-53) - CAB INSULATION, MACHINES FITTED W/ISO MOUNTED CAB (05) - SUPERSTRUCTURE

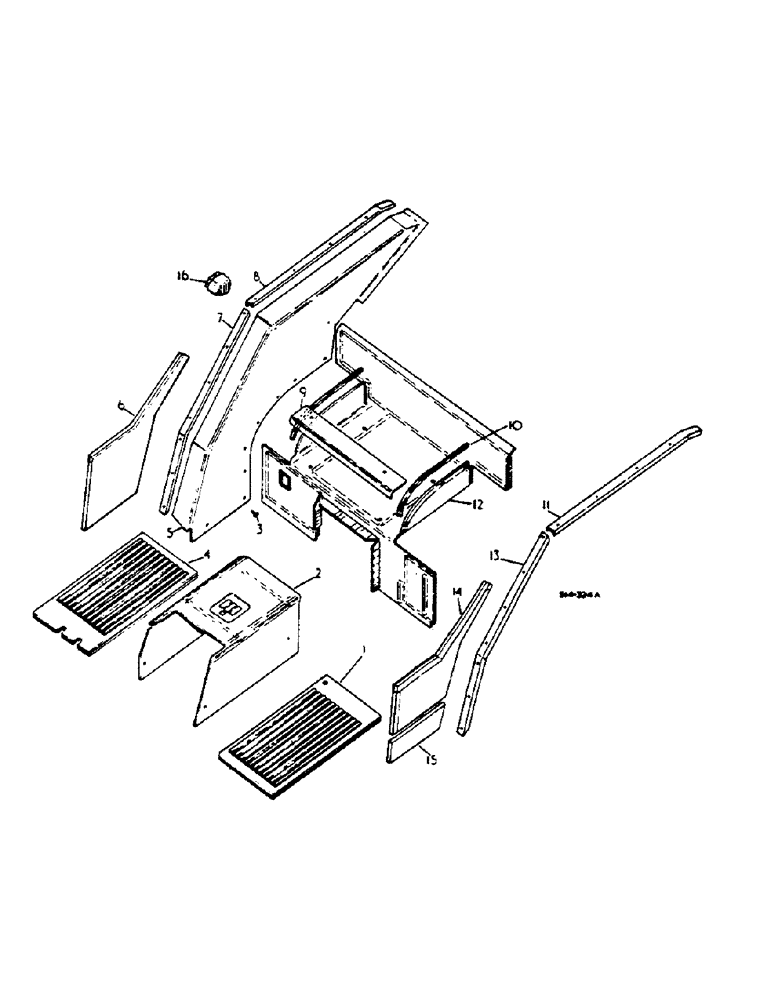

Схема запчастей Case IH 454 - (13-53) - CAB INSULATION, MACHINES FITTED W/ISO MOUNTED CAB (05) - SUPERSTRUCTURE
2
15
1
13
16
3
6
14
8
5
12
11
7
9
10
4

Артикул

Название

Примечание

Количество

1

3116832R1

INSULATOR

CPTE. FLOOR L.H.

1шт.

2

3116838R1

INSULATOR

CPTE. TUNNEL

1шт.

179799

BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 5

1/4-14 X 1-1/4 HEX HD CAP

2шт.

120392

WASHER,1/4", SAE

.281 X .625 X .051 PLN

2шт.

3

3118451R1

CLIP,ELECTRICAL

STUD, FENDER TRIM RETAINER

18шт.

4

3116833R2

INSULATOR

CPTE. FLOOR, RH

1шт.

5

3118449R1

INSULATOR

FENDER TRIM L.H.

1шт.

5

3118450R1

INSULATOR

FENDER TRIM R.H.

1шт.

6

3118458R1

INSULATOR

DOOR R.H.

1шт.

7

3118455R1

RETAINER

FENDER FRONT INSULATOR R.H.

1шт.

24613R1

SELF-TAP SCREW,Cross Oval Hd, #8 x 3/4"

Type AB

1шт.

8

3118453R1

RETAINER

FENDER TOP INSULATOR R.H.

1шт.

9

3116885R1

RETAINER

SPARE PART SEAT DECK INSULATOR, FRONT

1шт.

10

3118676R1

GASKET

MOULDING, INSULATOR, BULK LENGTH 150 FT

1шт.

11

3118452R1

RETAINER

FENDER TOP INSULATOR LH

1шт.

24613R1

SELF-TAP SCREW,Cross Oval Hd, #8 x 3/4"

Type AB

4шт.

12

3116871R1

INSULATOR

CPTE. SEAT DECK

1шт.

13

3118454R1

RETAINER

FENDER FRONT INSULATOR

1шт.

24613R1

SELF-TAP SCREW,Cross Oval Hd, #8 x 3/4"

Type AB

7шт.

14

3118456R1

INSULATOR

DOOR L.H.

1шт.

15

3118457R1

INSULATOR

DOOR L.H., LOWER PANEL

1шт.

16

3121165R1

PLUG

FENDER TRIM

2шт.

Выбрано товаров: 22
