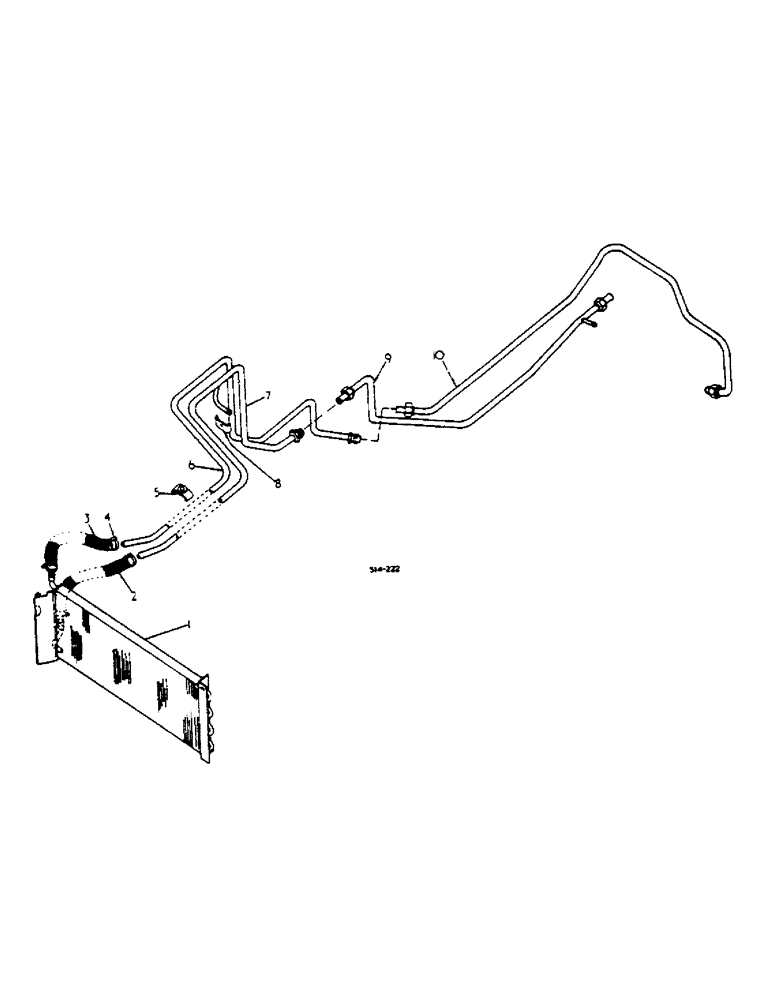

Запчасти Case IH 454 (06-02) - OIL COOLER, SYNCHROMESH DRIVE TRACTOR Cooling

1

539560R1

COOLER

OIL

1шт.

1380S

PIN

5/16 X 1-3/4 STD HD

2шт.

103384

COTTER PIN,1/8" x 3/4"

2шт.

2

400707R1

HYDRAULIC HOSE,12.70 mm ID, SAE 100R6, SAE J517

OIL COOLER OUTLET

1шт.

3

388606R1

HYDRAULIC HOSE,12.70 mm ID x 342.00 mm, SAE 100R6, SAE J517

OIL COOLER INLET

1шт.

3

529613R1

FLEXIBLE HOSE

OIL COOLER INLET, OPTIONAL

1шт.

4

74085R91

SPARE PART

CLAMP, OIL COOLER HOSE

4шт.

4

3074617R1

CLAMP

OIL COOLER HOSE, OPTIONAL

4шт.

5

529644R11

CLAMP

ASSY, OIL COOLER TUBE

1шт.

179796

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

1/4-20 X 7/8 HEX HD CAP

1шт.

103319

LOCK WASHER,1/4"

1шт.

6

66097C1

TUBE

ASSY, OIL COOLER INLET

1шт.

6

529607R1

SPARE PART ASSY, OIL COOLER INLET, ORDER TUBE 66097C1 W/TUBE 66095C1

1шт.

7

66099C1

TUBE

ASSY, OIL COOLER OUTLET

1шт.

7

529608R1

TUBE

ASSY, OIL COOLER OUTLET, ORDER TUBE 66099C1 W/TUBE 66096C1

1шт.

8

381448R1

CLAMP

OIL COOLER TUBE

1шт.

9

66096C1

TUBE

OIL COOLER RETURN REAR

1шт.

9

529606R1

TUBE

ASSY, OIL COOLER RETURN REAR, ORDER TUBE 66096C1 W/TUBE 66099C1

1шт.

10

66095C1

TUBE

ASSY, OIL COOLER REAR

1шт.

10

529605R1

SPARE PART ASSY, OIL COOLER REAR, ORDER TUBE 66095C1 W/TUBE 66097C1

1шт.

9402787

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

3/4-16 C-Z 37 DEG HYD FLARED TUBE, OIL COOLER RETURN REAR TUBE

1шт.

9402943

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

UNION, 3/4-16 C-Z 37 DEG HYD FLARED TUBE 90 DEG, OIL COOLER REAR TUBE, UP TO 454/8692, UP TO 2400/715

1шт.
