Запчасти Case IH 454 (13-42) - SAFETY CAB, MACHINES FITTED W/ISO MOUNTED CAB (05) - SUPERSTRUCTURE

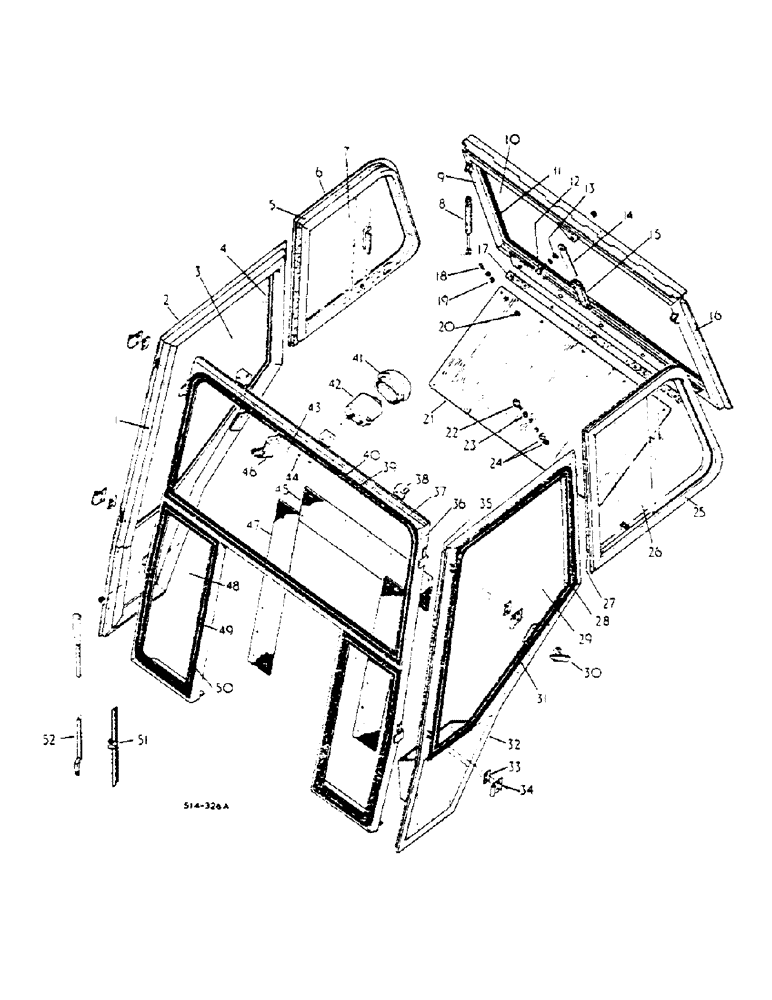

Схема запчастей Case IH 454 - (13-42) - SAFETY CAB, MACHINES FITTED W/ISO MOUNTED CAB (05) - SUPERSTRUCTURE
4
21
25
48
46
45
30
6
11
13
27
44
5
35
33
8
28
24
47
50
32
1
31
22
10
15
18
43
7
29
39
38
20
9
26
40
36
34
12
19
41
37
17
42
14
51
52
2
3
23
16
49

Артикул

Название

Примечание

Количество

1

3113568R1

DOOR SEAL

REAR 63.0"

1шт.

1

3113567R1

DOOR SEAL

UPPER 25.3"

1шт.

1

3113570R1

SEAL

DOOR FRONT 58.0"

1шт.

1

3113569R1

DOOR SEAL

LOWER 13.3"

1шт.

2

3118688R91

DOOR

CPTE. R.H.

1шт.

3

3118693R1

GLASS

1шт.

4

3112454R1

MOLDING

SEAL R.H.

1шт.

4

3118670R1

SEAL

DOOR STRIP, BULK LENGTH 100 FT

1шт.

5

3118672R1

STRIP

SEAL, SLIDING, BULK LENGTH 50 FT

1шт.

6

3118692R91

GLASS

SPARE PART WINDOW, SLIDING CPTE. R.H.

1шт.

167047

SELF-TAP SCREW,Cross Pan Hd, #8 - 32 x 1/2"

8-32 PAN HD CROSS RECESS TAP

4шт.

7

3118696R1

GLASS

SPARE PART SLIDING

1шт.

8

3118430R1

GAS STRUT

CYLINDER, SPRING

2шт.

3118431R1

CLEVIS PIN

CLEVIS

2шт.

3118432R1

WASHER

4шт.

3053111R1

RING, SNAP,M10, Ext

RING SNAP RETAINING

4шт.

9

3118424R91

FRAME

PANEL, CPTE. REAR WINDOW

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

103320

LOCK WASHER,5/16"

6шт.

120393

BEARING WASHER,5/16", SAE

.344 X .688 X .051

6шт.

10

3118697R1

GLASS

1шт.

11

3112496R1

SEAL

1шт.

3118670R1

SEAL

FILLER STRIP, BULK LENGTH 100 FT

1шт.

12

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

495-21044

WASHER,3/8"

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

13

3062236R1

PAD

FRICTION

1шт.

3118686R1

COVER

REAR FRICTION PAD

1шт.

14

3118655R1

HANDLE

PLATE, LATCH

1шт.

15

3118656R1

GRIP

LATCH

1шт.

16

3112498R1

SEAL, GLASS

REAR WINDOW

2шт.

17

3118662R1

RUBBER SEAL

RUBBER

1шт.

18

3118660R1

BOLT

SHOULDER

5шт.

NLS

NO LONGER SERVICED

.406 X .812 X .051 PLAIN

5шт.

19

3118661R1

GROMMET

5шт.

20

3119440R1

LOCK NUT

1/4 PHILIDAS

5шт.

120392

WASHER,1/4", SAE

.281 X .625 X .051 PLAIN

5шт.

21

3118657R1

GLASS

LOWER REAR WINDOW

1шт.

22

3118658R1

DAMPER

RUBBER

1шт.

23

3118659R1

GROMMET

1шт.

24

3118685R1

LOCK NUT

6 MM PHILIDAS W/PLASTIC CAP

1шт.

120392

WASHER,1/4", SAE

.281 X .625 X .051 PLAIN

1шт.

25

3118691R91

GLASS

SPARE PART WINDOW, SLIDING CPTE. L.H.

1шт.

167047

SELF-TAP SCREW,Cross Pan Hd, #8 - 32 x 1/2"

8-32 PAN HD CROSS RECESS TAP TYPE D

4шт.

26

3118696R1

GLASS

SPARE PART SLIDING

1шт.

27

3113543R1

SEAL

SLIDING WINDOW 67.0"

1шт.

27

3113544R1

SEAL

SLIDING WINDOW 26.12"

1шт.

28

3118670R1

SEAL

FILLER DOOR STRIP, BULK LENGTH 100 FT

1шт.

29

3118693R1

GLASS

1шт.

30

3113466R91

HANDLE

OUTSIDE DOOR

2шт.

3112459R1

NUT

2BA

4шт.

3112458R1

SCREW

2BA X 5/8 CSK HEAD

4шт.

120217

LOCK WASHER,#10

4шт.

31

3112453R1

SEAL, GLASS

SEAL, L.H.

1шт.

32

3113687R91

DOOR, CPTE. L.H.

1шт.

33

3116641R1

BAR

DOOR HINGE

1шт.

34

3116642R1

SUPPORT

DOOR

4шт.

120392

WASHER,1/4", SAE

.281 X .685 X .051 PLAIN AN ZND

1шт.

3116643R1

LOCK NUT

PHILIDAS PLASTIC CAP 1/4 UNC

8шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

BOLT, 1/4 X 3/4 HEX HD

8шт.

35

3113567R1

DOOR SEAL

UPPER 25.3"

1шт.

35

3113568R1

DOOR SEAL

LOWER 13.3"

1шт.

35

3113569R1

DOOR SEAL

REAR 63.0"

1шт.

35

3113570R1

SEAL

DOOR FRONT 58.0"

1шт.

36

3118689R91

WINDSHIELD

CPTE.

1шт.

3112951R1

NUT

INSERT

3шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

4шт.

120394

WASHER,3/8", SAE

.406 X .812 X .051 PLN

4шт.

37

3112425R1

SEAL

WINDSHIELD TOP

1шт.

38

3113566R1

ANGLE

WINDSHIELD MOUNTING

3шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

103320

LOCK WASHER,5/16"

6шт.

120393

BEARING WASHER,5/16", SAE

.344 X .688 X .051 PLN

6шт.

39

3113555R1

SEAL

UPPER

1шт.

40

3118670R1

SEAL

FILLER STRIP, BULK LENGTH 100 FT

1шт.

41

3113075R2

GUARD

HEAD RUBBER

1шт.

42

3113074R91

ELECTRIC MOTOR

CPTE. WINDSHIELD WIPER

1шт.

43

3118694R1

GLASS

UPPER

1шт.

44

3112426R1

GROMMET

RUBBER

2шт.

45

3113564R2

GASKET

SHEET, HORIZONTAL

1шт.

3116384R1

SELF-TAP SCREW

10-16 X 1 HEX HD SLT TAP

9шт.

46

3112460R91

HANDLE

LATCH, INSIDE L.H.

1шт.

46

3112461R91

HANDLE

LATCH, INSIDE R.H.

1шт.

178716

SCREW,#10 - 32 x 3/8"

10-32 X 3/8 TAP

8шт.

47

3113565R2

GASKET

SHEET, VERTICAL

2шт.

3116384R1

SELF-TAP SCREW

10-16 X 1 HEX HD SLT TAP

10шт.

48

3118695R1

GLASS

LOWER

2шт.

49

3113559R1

SEAL

LOWER L.H.

1шт.

49

3113560R1

SEAL

LOWER R.H.

1шт.

50

3118670R1

SEAL

FILLER STRIP, BULK LENGTH 100 FT

1шт.

51

3113077R1

BLADE

WIPER

1шт.

52

3113076R1

ARM

WIPER

1шт.

3112438R1

GROMMET

WIPER ENTRY

2шт.

3112436R91

CABLE

ASSY, WIPER

1шт.

1092550R1

PRODUCT GRAPHIC

CAB WARNING, ENGLISH

1шт.

1092551R1

PRODUCT-GRAPHIC, CAB WARNING, GERMAN

1шт.

1092552R1

PRODUCT GRAPHIC

CAB WARNING, FRENCH

1шт.

1092554R1

PRODUCT-GRAPHIC, CAB WARNING, SPANISH

1шт.

1092996R1

PRODUCT GRAPHIC

REAR WINDOW OPERATION, ENGLISH

1шт.

1093009R1

DECAL

PRODUCT-GRAPHIC, REAR WINDOW OPERATION, GERMAN

1шт.

1093010R1

DECAL

SPARE PART PRODUCT-GRAPHIC, REAR WINDOW OPERATION, FRENCH

1шт.

1093012R1

DECAL

PRODUCT-GRAPHIC, REAR WINDOW OPERATION, SPANISH

1шт.

192413

DRIVE SCREW,U, Rnd Hd, Metallic, #2 x 1/4"

NO.4 X 1/4 RD HD DRIVE, USED W/SAFETY FRAME APPROVAL PLATE

2шт.

Выбрано товаров: 105
