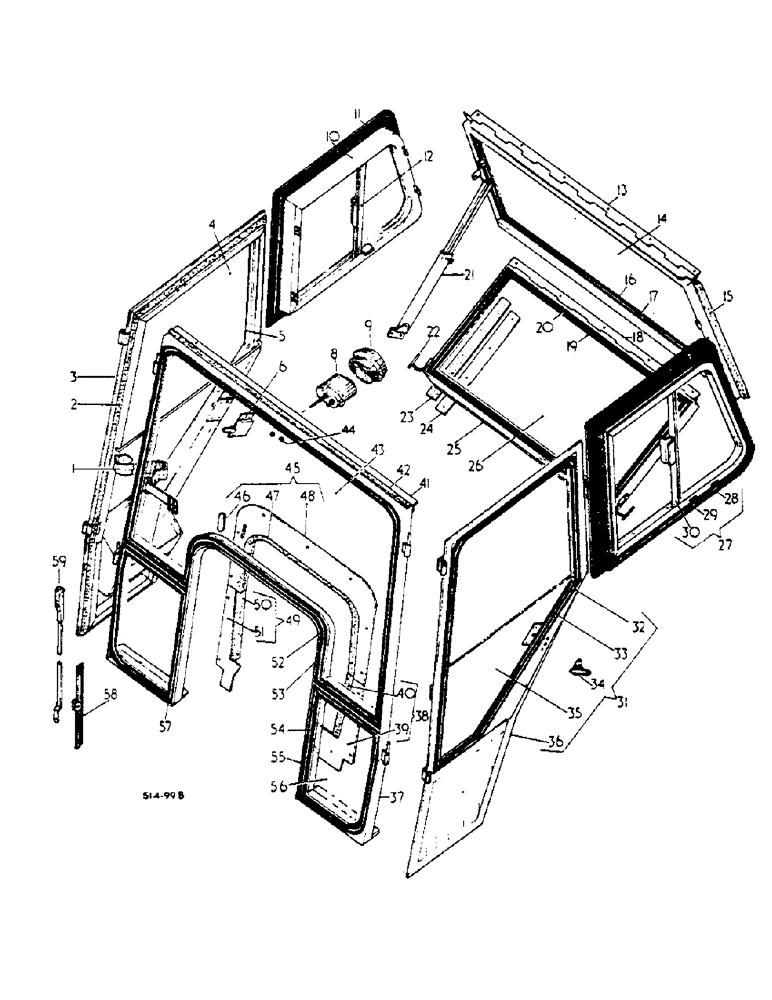

Запчасти Case IH 454 (13-27) - SAFETY CAB, UP TO 454/8759 2400/0733 (05) - SUPERSTRUCTURE
№
Артикул
Название
Примечание
Количество
3111990R92
CAB, SAFETY CPTE, W/SAFETY FRAME 3113258R91, ORDER CAB 3111990R93
1шт.
3112449R92
DOOR
ASSY, CPTE RH
1шт.
1
3112464R91
CHAIN (AG)
DOOR CHECK
2шт.
2
3112463R1
SEAL
ORDER 3112200R1 AND 3112201R1
2шт.
2
3113200R1
SEAL
DOOR, 105"
2шт.
2
3113201R1
SEAL
DOOR, 60"
2шт.
3
3112451R1
FRAME, DOOR RH
1шт.
4
3112452R1
GLASS
1шт.
5
3112454R1
MOLDING
RUBBER RH
1шт.
3112455R1
STRIP
LOCKING
1шт.
6
3112461R91
HANDLE
LOCK, INSIDE DOOR RH
1шт.
6
3112460R91
HANDLE
LOCK, INSIDE DOOR LH
1шт.
3112462R91
SCREW, 2BA X V2 RD HD
4шт.
120217
LOCK WASHER,#10
4шт.
7
NOT USED
1шт.
3112439R91
WIPER ASSY, WINDSCREEN
1шт.
ON ORDERS FOR WIPER ASSY 3112439R91, FURNISH MOTOR 3113074R91, COVER 3113075R2, ARM 3113076R91 AND BLADE 3113077R1
1шт.
8
3113074R91
ELECTRIC MOTOR
WINDSCREEN WIPER 06166 to
1шт.
INCLUDING 2400/0588 UP
1шт.
8
3073684R91
WIPER MOTOR
MOTOR, WIPER WINDSCREEN, Serial Range: -06165
1шт.
INCLUDING UP TO 2400/0587
1шт.
9
3113075R2
GUARD
COVER, WIPER MOTOR 06166 to
1шт.
INCLUDING 2400/0588 UP
1шт.
9
3112443R1
COVER
WIPER MOTOR, Serial Range: -06165
1шт.
INCLUDING UP TO 2400/0587
1шт.
10
3112407R91
PANEL
ASSY, SIDE RH
1шт.
133092
SCREW, 5/16 X 5/8 RD HD SLTD
4шт.
80681
LOCK WASHER,5/16"
4шт.
11
3112411R1
MOLDING
RUBBER RH
1шт.
3112412R1
STRIP
LOCKING
1шт.
12
3112409R1
GLASS
SPARE PART WINDOW, UNIT SLIDING RH
1шт.
13
3112493R91
PANEL
ASSY, REAR TOP, CONSISTS OF GLASS, MOULDING, SEAL AND STRIP
1шт.
3112494R1
PANEL
TOP REAR
1шт.
3112992R1
NUT
INSERT
5шт.
180075
BOLT,Hex, 5/16" - 18 x 5/8", Gr 5
BOLT, HEX HD 5/16 X 5/8, TOP HINGE
6шт.
80681
LOCK WASHER,5/16"
6шт.
120393
BEARING WASHER,5/16", SAE
11/32 PLAIN
6шт.
14
3112495R1
GLASS
1шт.
15
3112498R1
SEAL, GLASS
2шт.
16
3112496R1
SEAL
MOULDING, RUBBER
1шт.
17
NSS
NOT SOLD SEPARAT
1шт.
3112499R91
PANEL
ASSY, REAR BOTTOM, CONSISTS OF GLASS, MOULDING, SEALS, STRIPS AND CLIPS
1шт.
18
3112500R1
PANEL
REAR BOTTOM
1шт.
88542
BOLT,Hex, 1/4"-20 x 1/2", Gr 5
Bottom Hinge
5шт.
19
3112502R1
MOLDING
RUBBER
1шт.
20
3112503R1
STRIP
LOCKING
1шт.
21
3112509R91
SUPPORT
ASSY, W/THUMB SCREW
1шт.
413-410
BOLT,Hex, 1/4" - 20 x 5/8", Gr 5
HEX HD 1/4
2шт.
86625061
NUT,1/4"-20, GB
2шт.
85700996
SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"
RD HD 1/4 X 1/2
4шт.
492-11025
LOCK WASHER,1/4"
4шт.
3114070R1
SCREW
5/16 X 1 THUMB
2шт.
22
NSS
NOT SOLD SEPARAT
1шт.
23
3112505R1
SEAL, FLAP RUBBER
2шт.
24
3112506R1
STRIP
ALUMINIUM
2шт.
3112507R1
RIVET
8шт.
25
3112504R1
STRIP
SEAL
1шт.
26
3112501R1
GLASS
BOTTOM REAR
1шт.
27
3112406R91
PANEL
ASSY, SIDE LH
1шт.
133092
SCREW, 5/16-18 X 3/4 HEX HD CAP
4шт.
80681
LOCK WASHER,5/16"
4шт.
28
3112410R1
MOLDING
RUBBER LH
1шт.
29
3112412R1
STRIP
LOCKING
1шт.
30
3112408R1
GLASS
WINDOW, UNIT SLIDING LH
1шт.
31
3112448R91
DOOR
ASSY, CPTE LH
1шт.
32
3112453R1
SEAL, GLASS
MOULDING, RUBBER LH
1шт.
33
3112455R1
STRIP
LOCKING
1шт.
34
3113466R91
HANDLE
DOOR OUTSIDE LH AND RH
1шт.
3112459R1
NUT
2BA
2шт.
3112458R1
SCREW
2BA X 5/8 C/S HD
2шт.
120217
LOCK WASHER,#10
2шт.
35
3112452R1
GLASS
1шт.
36
3112450R1
DOOR, FRAME LH
1шт.
37
3112414R91
WINDSHIELD
ASSY, CPTE, ORDER 3113545R91 W/3113564R1, TWO 3113565R1 AND 3112424R1
1шт.
37
3112415R91
WINDSHIELD
ASSY, ORDER 3113545R91 W/3113564R1, TWO 3113565R1 AND 3112424R1, CONSISTS OF GLASS, FRAME MOULDINGS, STRIPS, ANGLE, SEAL AND GROMMETS
1шт.
180122
BOLT,Hex, 3/8" - 16 x 1", Gr 5
4шт.
120377
NUT,3/8" - 16, Gr 5
4шт.
120394
WASHER,3/8", SAE
3/8 PLAIN
4шт.
120382
LOCK WASHER,Helical Spring, 3/8"
4шт.
37
3112416R1
FRAME
WINDSCREEN, ORDER 3113545R91 W/3113564R1, TWO 3113565R1 AND 3112424R1
1шт.
38
3112431R91
PLATE
ASSY, FRONT LH
1шт.
39
3112433R1
PLATE
FRONT LH
1шт.
413-410
BOLT,Hex, 1/4" - 20 x 5/8", Gr 5
HEX HD 1/4 X 5/8
2шт.
492-11025
LOCK WASHER,1/4"
2шт.
40
3112435R1
STRIP
SEALING
1шт.
41
3112424R1
ANGLE
ATTACHING
1шт.
180075
BOLT,Hex, 5/16" - 18 x 5/8", Gr 5
BOLT, HEX HD 5/16 X 5/8
7шт.
80681
LOCK WASHER,5/16"
7шт.
120393
BEARING WASHER,5/16", SAE
11/32 PLAIN
7шт.
42
3112425R1
SEAL
TOP
1шт.
43
3112417R1
GLASS
WINDSCREEN
1шт.
44
3112426R1
GROMMET
RUBBER
2шт.
45
3112427R91
PLATE
BONNET ASSY
1шт.
413-410
BOLT,Hex, 1/4" - 20 x 5/8", Gr 5
HEX HD 1/4 X 5/8
7шт.
492-11025
LOCK WASHER,1/4"
7шт.
46
3112429R1
GROMMET
RUBBER
1шт.
47
3112430R1
STRIP
SEAL
1шт.
48
PLATE, BONNET, ORDER 3112427R91
1шт.
49
3112432R91
PLATE
FRONT ASSY RH
7шт.
50
3112435R1
STRIP
SEALING
1шт.
51
3112434R1
PLATE
FRONT RH
1шт.
413-410
BOLT,Hex, 1/4" - 20 x 5/8", Gr 5
HEX HD 1/4 X 5/8
2шт.
492-11025
LOCK WASHER,1/4"
2шт.
52
3112419R1
STRIP
LOCKING
1шт.
53
3112418R1
MOLDING
SPARE PART WINDSCREEN
1шт.
54
3112423R1
STRIP
LOCKING
2шт.
55
3112421R1
MOLDING
RUBBER LH
1шт.
56
3112420R1
GLASS
LOWER
2шт.
57
3112422R1
MOLDING
RUBBER RH
1шт.
58
3113077R1
BLADE
WIPER 06166 to
1шт.
INCLUDING 2400/0588 UP
1шт.
58
3112442R1
WIPER BLADE
, Serial Range: -06165
1шт.
INCLUDING UP TO 2400/0587
1шт.
59
3113076R91
ARM
WIPER 06166 to
1шт.
INCLUDING 2400/0588 UP
1шт.
59
3112441R91
WIPER ARM
, Serial Range: -06165
1шт.
INCLUDING UP TO 2400/0587
1шт.
3113076R91
ARM
DRIVE
1шт.
3114749R1
ARM
IDLER
1шт.
3114750R1
LINK
CONNECTING
1шт.
117957
GROMMET,1/4" ID x 5/8" x .062"
CABLE ENTRY WIPER, Serial Range: -0001309
1шт.
3112436R91
CABLE
ASSY, WIPER
1шт.
3112437R91
CABLE
ASSY, WIPER EXTENSION
1шт.
3112440R1
CLIP
CABLE EDGE 001310 to
2шт.
707458R1
SPARE PART WIPER BLANKING
1шт.
3112438R1
GROMMET
WIPER ENTRY CAB
2шт.
117957
GROMMET,1/4" ID x 5/8" x .062"
CABLE ENTRY PLOUGH LIGHT
1шт.
1092596R1
DECAL
PRODUCT-GRAPHIC, CAB WARNING
1шт.
1092550R1
PRODUCT GRAPHIC
CAB WARNING
1шт.
3112667R91
KIT, SAFETY CAB CLADDING
1шт.
ORDER KIT 3113591R91, FOR USE W/TRACTORS FITTED W/SAFETY FRAME ONLY, TO BE CONVERTED TO A COMPLETE CAB, CONSISTS OF MAJOR ASSEMBLIES, SIDE PANELS, WINDSHIELD, DOOR LH AND RH, ROOF, REAR PANELS
1шт.
