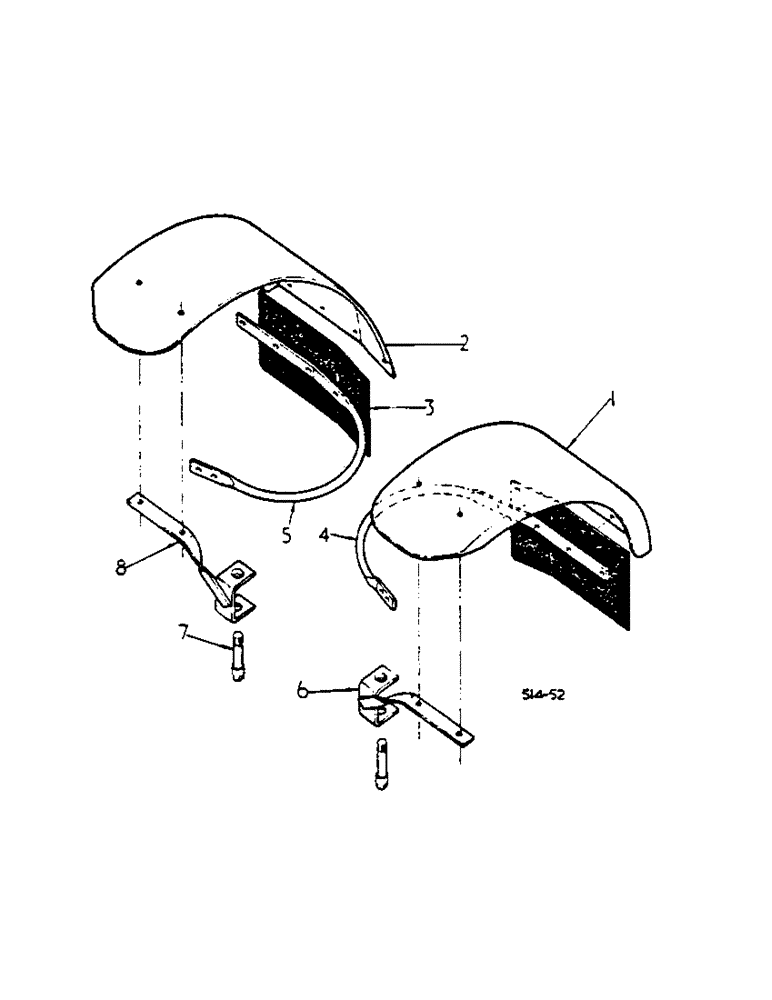

Запчасти Case IH 454 (13-26) - FRONT FENDER, INDUSTRIAL TRACTOR (05) - SUPERSTRUCTURE

1

709215R11

SPARE PART ASSY, FRONT LH

1шт.

9635082

NUT,5/16" - 18, Gr 5

6шт.

22712R1

SCREW

5/16-18 X 3/4 SLT PAN HD MACH

6шт.

103320

LOCK WASHER,5/16"

6шт.

2

709216R11

SPARE PART ASSY, FRONT RH

1шт.

9635082

NUT,5/16" - 18, Gr 5

6шт.

22712R1

SCREW

5/16-18 X 3/4 SLT PAN HD MACH

6шт.

103320

LOCK WASHER,5/16"

6шт.

3

709482R1

FLAP

FRONT FENDER MUD

2шт.

4

528607R1

BRACE

FRONT FENDER LH

1шт.

102637

NUT,1/2"-13, G5

2шт.

413-818

BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5

1/2-13 X 1-1/8 HEX HD CAP

2шт.

103323

LOCK WASHER,1/2"

2шт.

5

528608R1

BRACE

FRONT FENDER RH

1шт.

102637

NUT,1/2"-13, G5

2шт.

413-818

BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5

1/2-13 X 1-1/8 HEX HD CAP

2шт.

103323

LOCK WASHER,1/2"

2шт.

6

528609R1

BRACKET ASSY, FRONT FENDER LH

1шт.

7

528614R1

BOLT, SHOULDER

2шт.

8

528610R1

BRACKET ASSY, FRONT FENDER RH

1шт.
