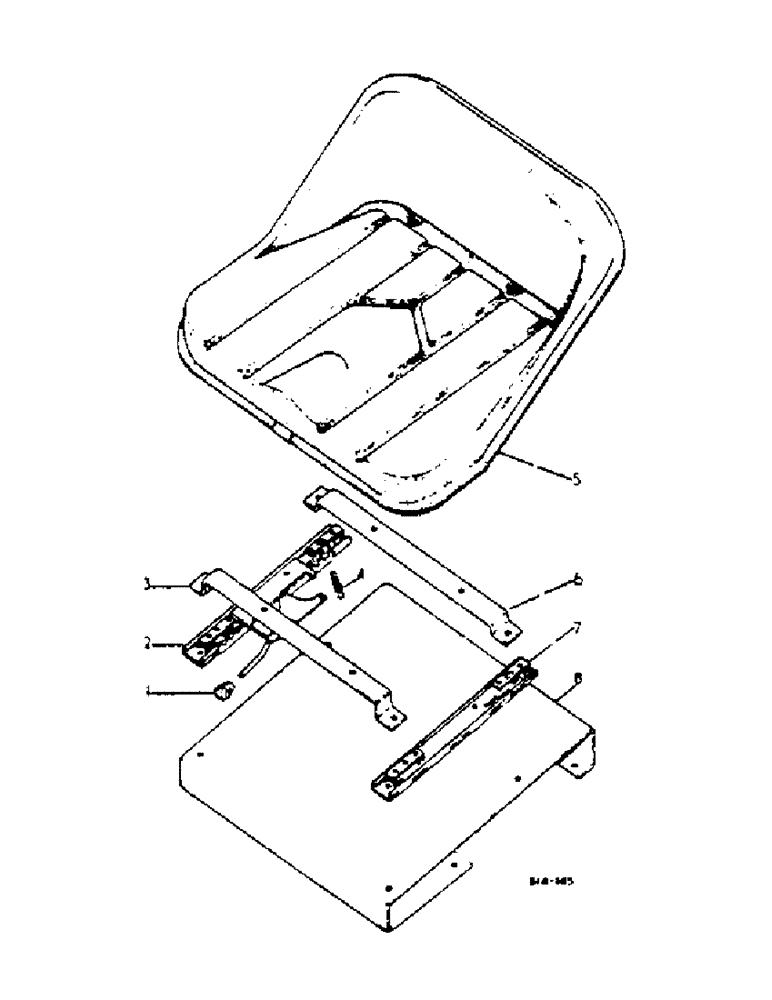

Запчасти Case IH 454 (13-19) - BOSTROM SEAT (05) - SUPERSTRUCTURE

528737R91

DRIVER SEAT

ASSY, BOSTROM

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

4шт.

23060R1

LOCK WASHER,Int Tooth, 5/16"

WASHER, 5/16 INT TOOTH LOCK

4шт.

3064188R1

SPACER

SEAT, MACHINE FITTED, W/ISO MOUNTED CAB

4шт.

160717

SCREW,Cross Pan Hd, 5/16" - 18 x 1"

4шт.

23060R1

LOCK WASHER,Int Tooth, 5/16"

WASHER, 5/16 C-Z INT TOOTH LOCK, MACHINES NOT FITTED W/ISO MOUNTED CAB

4шт.

1

538693R1

BUTTON

KNOB

1шт.

2

825199C91

SLIDE

RAIL, RH W/ADJUSTER

1шт.

120376

NUT,5/16"-18, G5

2шт.

160688

SCREW,Cross Pan Hd, 5/16" - 18 x 3/4"

6шт.

80681

LOCK WASHER,5/16"

4шт.

3

538027R1

SPARE PART FRONT MOUNTING

1шт.

4

538694R1

SPRING

1шт.

5

538026R1

SEAT ASSY.

PAN

1шт.

6

538028R1

BRACKET

REAR MOUNTING

1шт.

7

825198C1

RAIL

SIDE LH

1шт.

160668

SCREW, 5/16-18 X 3/4 C-Z CR

1шт.

120376

NUT,5/16"-18, G5

2шт.

8

NOT APPLICABLE

1шт.
