Запчасти Case IH 454 (13-15) - STEERING SUPPORT (05) - SUPERSTRUCTURE

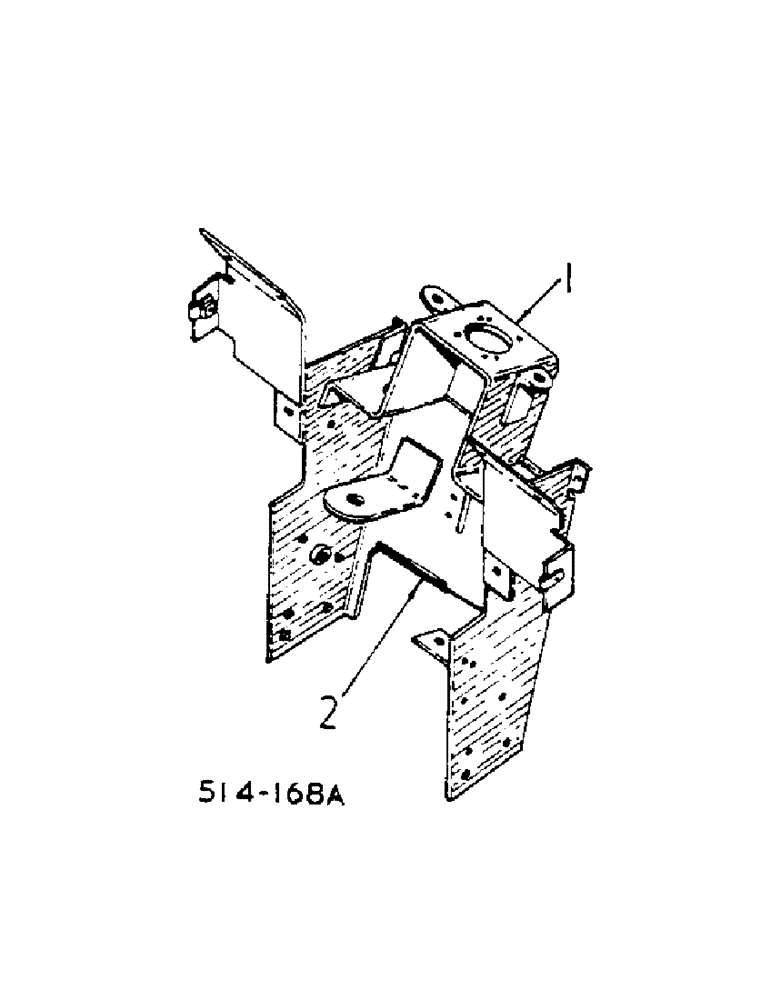

Схема запчастей Case IH 454 - (13-15) - STEERING SUPPORT (05) - SUPERSTRUCTURE
1
2

Артикул

Название

Примечание

Количество

1

3121209R91

SUPPORT ASSY, STEERING, SYNCHROMESH DRIVE TRACTORS, MACHINE FITTED W/ISO MOUNTED CAB OR SAFETY FRAME

1шт.

1

3113300R1

SUPPORT ASSY, STEERING, MACHINE NOT FITTED W/ISO MOUNTED CAB, SYNCHROMESH DRIVE TRACTORS

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

4шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1/4-20 X 1/4 HEX HD CAP

4шт.

103321

LOCK WASHER,3/8"

2шт.

24539R1

HOLE PLUG BUTTON,1"

1шт.

3113429R1

PLUG

BLANKING, OPTIONAL

1шт.

1

3113301R1

SUPPORT

ASSY, STEERING, MACHINE NOT FITTED W/ISO MOUNTED CAB, HYDROSTATIC DRIVE TRACTORS

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1/4-20 X 1/4 HEX HD CAP

4шт.

103321

LOCK WASHER,3/8"

2шт.

24539R1

HOLE PLUG BUTTON,1"

1шт.

3113429R1

PLUG

BLANKING, OPTIONAL

1шт.

2

3121114R1

ROLL

SEAL, EDGE MOULDING, BULK LENGTH 100FT

1шт.

660200R1

SPACER,10.7mm ID x 17.14mm OD x 9.5mm L

3/8 X .375 X .675 0D X .423 ID, FOR USE BETWEEN THE STEERING UNIT AND THE HAND PUMP BRACKET

2шт.
